Outlet versatility selection
Confirm site drainage configuration: S-trap 300/400 mm or P-trap H180 mm.
Two-Piece Toilets

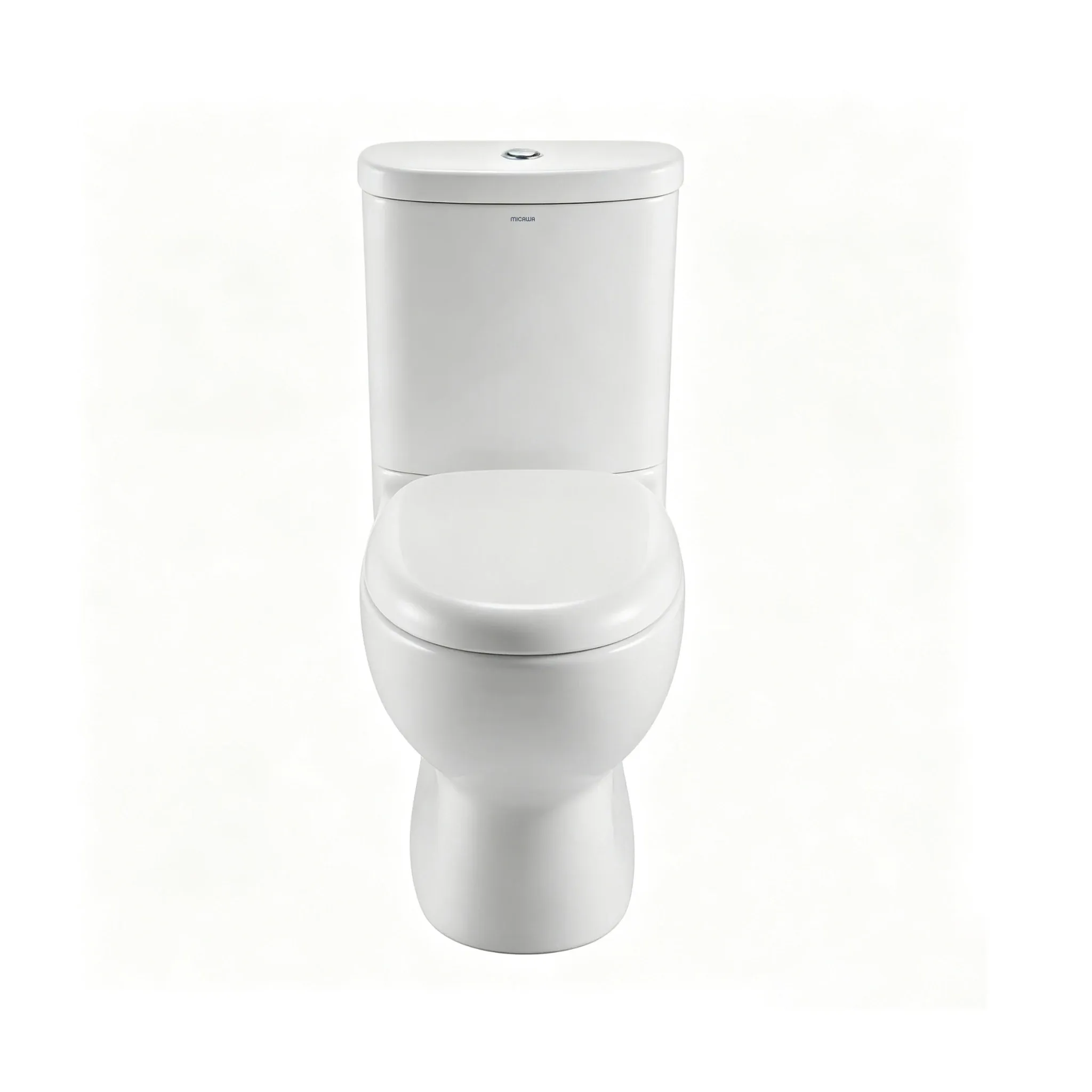

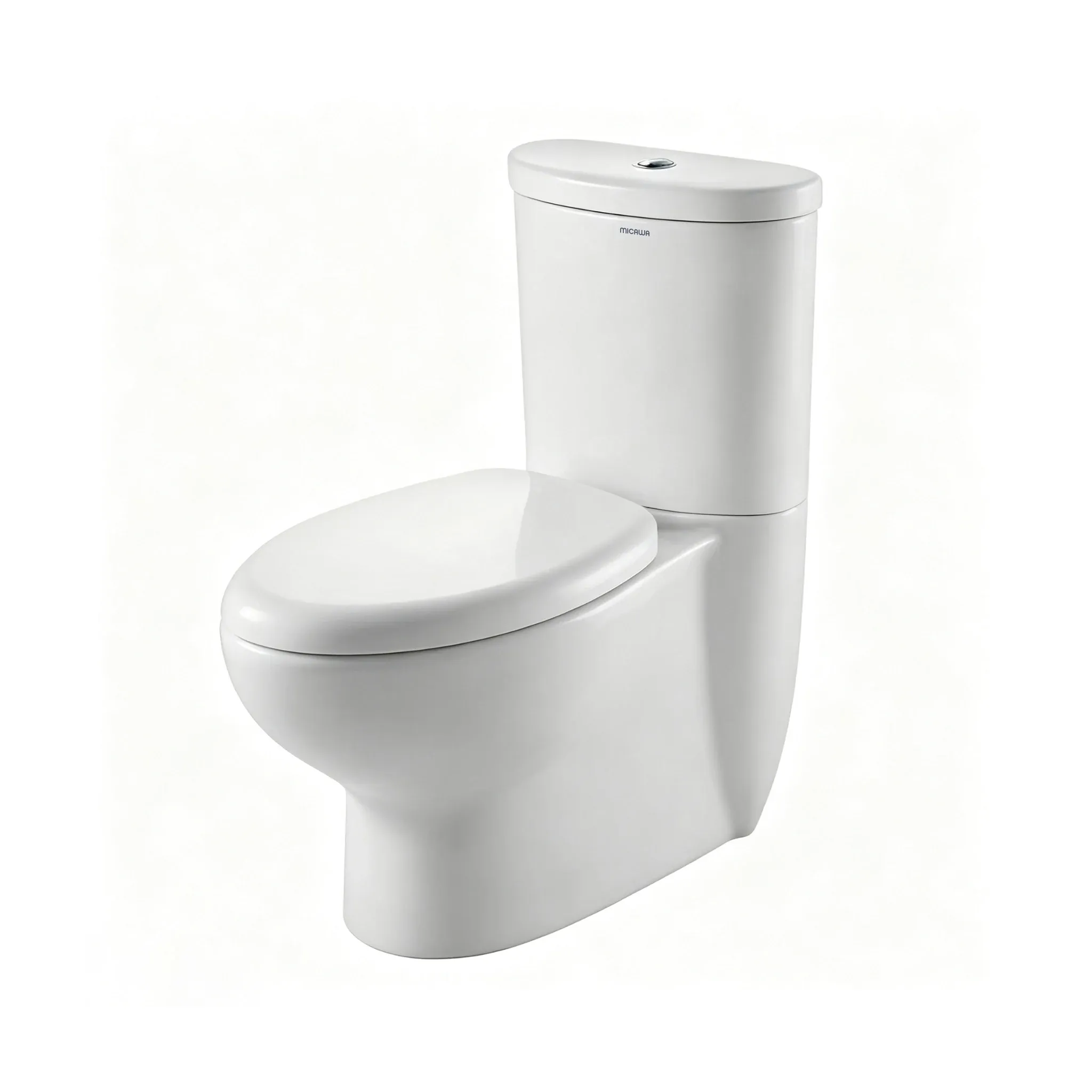

MB-2803 Two-Piece Toilet
A heavy-duty two-piece close-coupled toilet featuring an 800mm tall back profile and multi-discharge compatibility (S-trap and P-trap) for flexible public and residential housing tenders.
- 735 × 415 × 800 mm elevated high-back ceramic silhouette
- Multi-discharge engineering: supports 300 / 400 mm floor or H180 mm wall outlet
- Heavy-duty vitrified cistern with accessible top-mounted dual-flush buttons
- Durable crystal-white glaze resistant to aggressive cleaning chemicals
- Model
- MB-2803
- Dimensions
- 735 × 415 × 800 mm
- Configuration
- Floor and wall outlet · 300 / 400 / H180 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-2803 High-Back Two-Piece Close-Coupled Toilet Specifications
A heavy-duty two-piece close-coupled toilet featuring an 800mm tall back profile and multi-discharge compatibility (S-trap and P-trap) for flexible public and residential housing tenders.
Specified for social housing tenders, municipal hospital staff quarters, and large-scale residential projects requiring dependable serviceability. For tighter vertical installation under low vanity counters, specify compact 725mm MB-2804.
B2B Project Fit & Sourcing Guidance
Confirm MB-2803 for your market Specified for social housing tenders, municipal hospital staff quarters, and large-scale residential projects requiring dependable serviceability.
Alternative selection: For tighter vertical installation under low vanity counters, specify compact 725mm MB-2804.
Technical specifications
Engineering Data & Sourcing Specifications for MB-2803
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-2803
- Product type
- Two-Piece Toilet
- Dimensions
- 735 × 415 × 800 mm
- Installation / Outlet
- Floor and wall outlet · 300 / 400 / H180 mm rough-in
- Finish / Color
- Crystal white
- Product family
- Two-Piece Toilets
- Flushing Technology
- Siphon jet dual-flush (4.8L / 3.0L)
- Trapway & Waste Path
- ≥50 mm glazed trapway
- Water Seal Depth
- 55 mm deep anti-odour seal
- Container Loading (40HQ)
- ~380 sets / 40HQ container
- OEM / Customization Scope
- Tender brand silk-screening, dual-flush mechanism customization, bulk contract outer packaging
Two-piece toilet specification checklist
What buyers should confirm for MB-2803
A close-coupled toilet has to match the drainage drawing and the available space behind the bowl.Split-carton delivery handling
Bowl and cistern packed separately to optimize pallet stability and reduce breakages.
Cistern service clearance
Verify 800 mm minimum vertical wall clearance to avoid interference with shelving.
Volume shipping yield
Separate bowl & tank packing allows high density of ~380 sets / 40HQ.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-2803 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-2803
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Separate ceramic bowl and cistern protection
- Seat, fitting and flush-valve pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-2803, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-2803
Share your rough-in or outlet position, required flush configuration, seat specification, target market, quantity and delivery destination. MICAWA will review the request against the current MB-2803 technical information and available supply configuration.Continue exploring
Compare one-piece and two-piece toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-2803
Use the current product sheet and approved quotation as the final reference for this model.What current information is available for MB-2803?
Send the model number and target market to request the current dimensions, configuration, finish and technical documentation for MB-2803.
Which options should be confirmed before quoting MB-2803?
Confirm dimensions, installation, included components, finish, quantity and destination-market requirements.
Can OEM or ODM requirements be discussed for MB-2803?
Share branding, finish, packaging and market requirements so their feasibility can be reviewed.
