Over-toilet shelf clearance
Low 725 mm height leaves generous room for wall-hung storage units.
Two-Piece Toilets

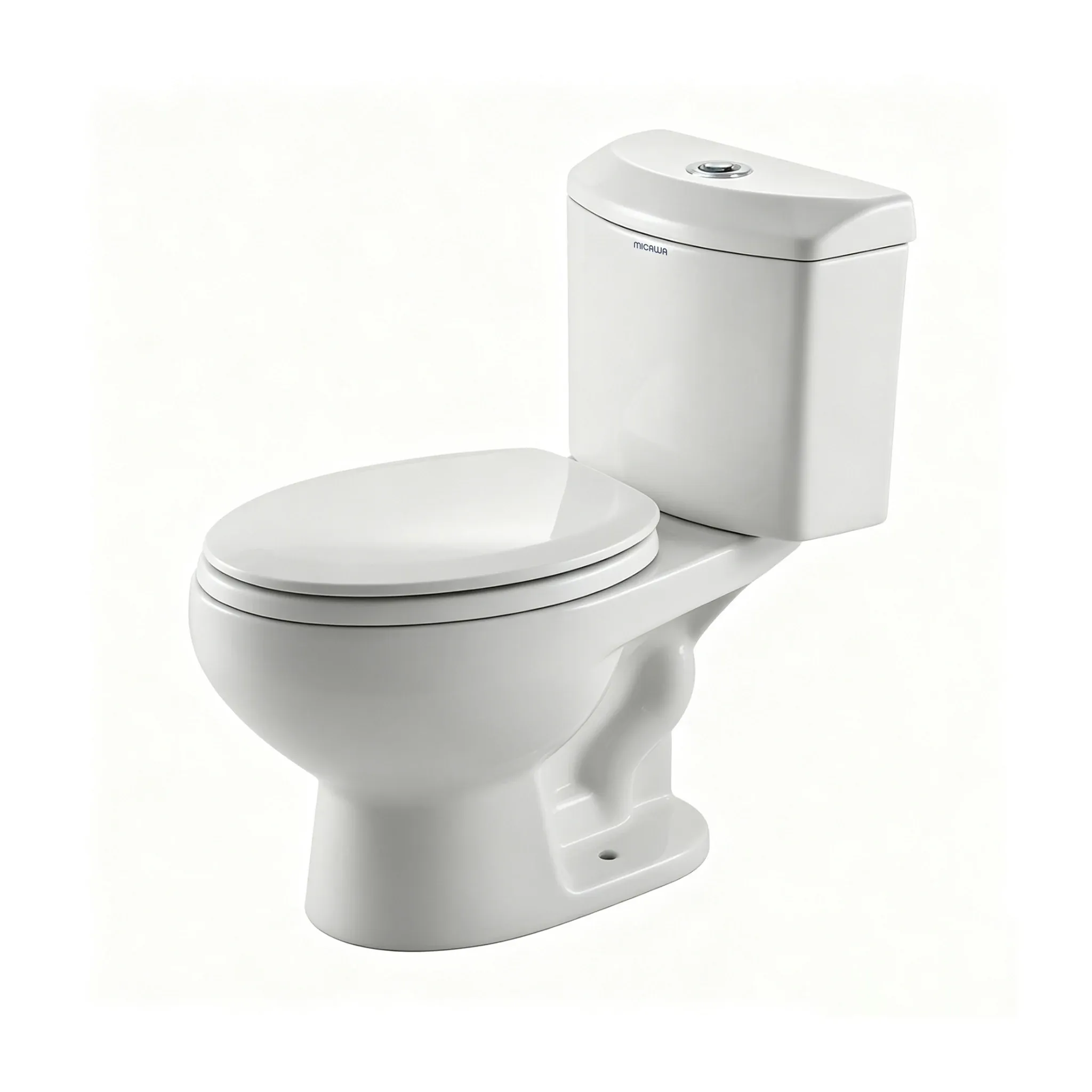

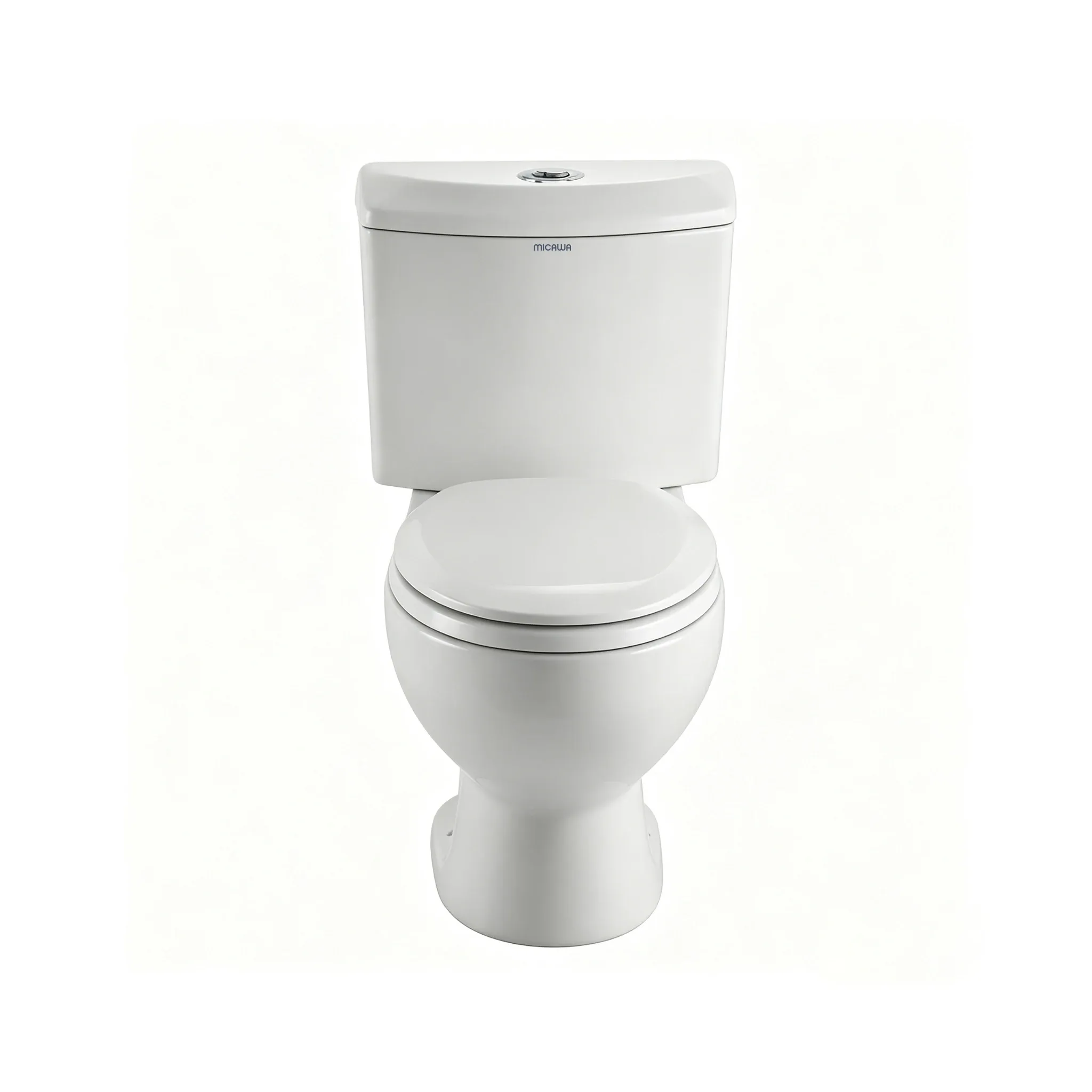

MB-2804 Two-Piece Toilet
A compact 725mm height two-piece close-coupled toilet engineered for low-clearance residential installations and high-density apartment developments.
- 730 × 405 × 725 mm compact-profile two-piece format
- Low 725mm overall height fits beneath vanity shelves and over-toilet cabinets
- Floor outlet siphon jet flush (300 / 400 mm rough-in)
- High-gloss stain-resistant vitreous china construction
- Model
- MB-2804
- Dimensions
- 730 × 405 × 725 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-2804 Low-Profile Two-Piece Toilet Specifications
A compact 725mm height two-piece close-coupled toilet engineered for low-clearance residential installations and high-density apartment developments.
Optimal for budget-conscious real estate packages, modular apartment washrooms, and private-label distributor ranges. If wall-outlet P-trap drainage is required, choose multi-discharge MB-2803.
B2B Project Fit & Sourcing Guidance
Confirm MB-2804 for your market Optimal for budget-conscious real estate packages, modular apartment washrooms, and private-label distributor ranges.
Alternative selection: If wall-outlet P-trap drainage is required, choose multi-discharge MB-2803.
Technical specifications
Engineering Data & Sourcing Specifications for MB-2804
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-2804
- Product type
- Two-Piece Toilet
- Dimensions
- 730 × 405 × 725 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- Crystal white
- Product family
- Two-Piece Toilets
- Flushing Technology
- Efficient siphon jet (4.8L / 3.2L)
- Trapway & Waste Path
- ≥50 mm glazed trapway
- Water Seal Depth
- 52 mm anti-odour seal
- Container Loading (40HQ)
- ~400 sets / 40HQ container
- OEM / Customization Scope
- Private label carton marks, customer-specified seat cover dampers, OEM barcode stickers
Two-piece toilet specification checklist
What buyers should confirm for MB-2804
A close-coupled toilet has to match the drainage drawing and the available space behind the bowl.Cistern-to-bowl gasket seal
Supplied with age-resistant EPDM tank coupling washers for leak-free field assembly.
Standard floor rough-in
Verified for standard 300 mm or 400 mm S-trap installations.
Container payload efficiency
High-density carton design yields approx. 400 sets per 40HQ container.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-2804 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-2804
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Separate ceramic bowl and cistern protection
- Seat, fitting and flush-valve pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-2804, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-2804
Share your rough-in or outlet position, required flush configuration, seat specification, target market, quantity and delivery destination. MICAWA will review the request against the current MB-2804 technical information and available supply configuration.Continue exploring
Compare one-piece and two-piece toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-2804
Use the current product sheet and approved quotation as the final reference for this model.What current information is available for MB-2804?
Send the model number and target market to request the current dimensions, configuration, finish and technical documentation for MB-2804.
Which options should be confirmed before quoting MB-2804?
Confirm dimensions, installation, included components, finish, quantity and destination-market requirements.
Can OEM or ODM requirements be discussed for MB-2804?
Share branding, finish, packaging and market requirements so their feasibility can be reviewed.
