Gravitational head advantage
763 mm total height provides superior static pressure for consistent low-pressure building sites.
One-Piece Toilets

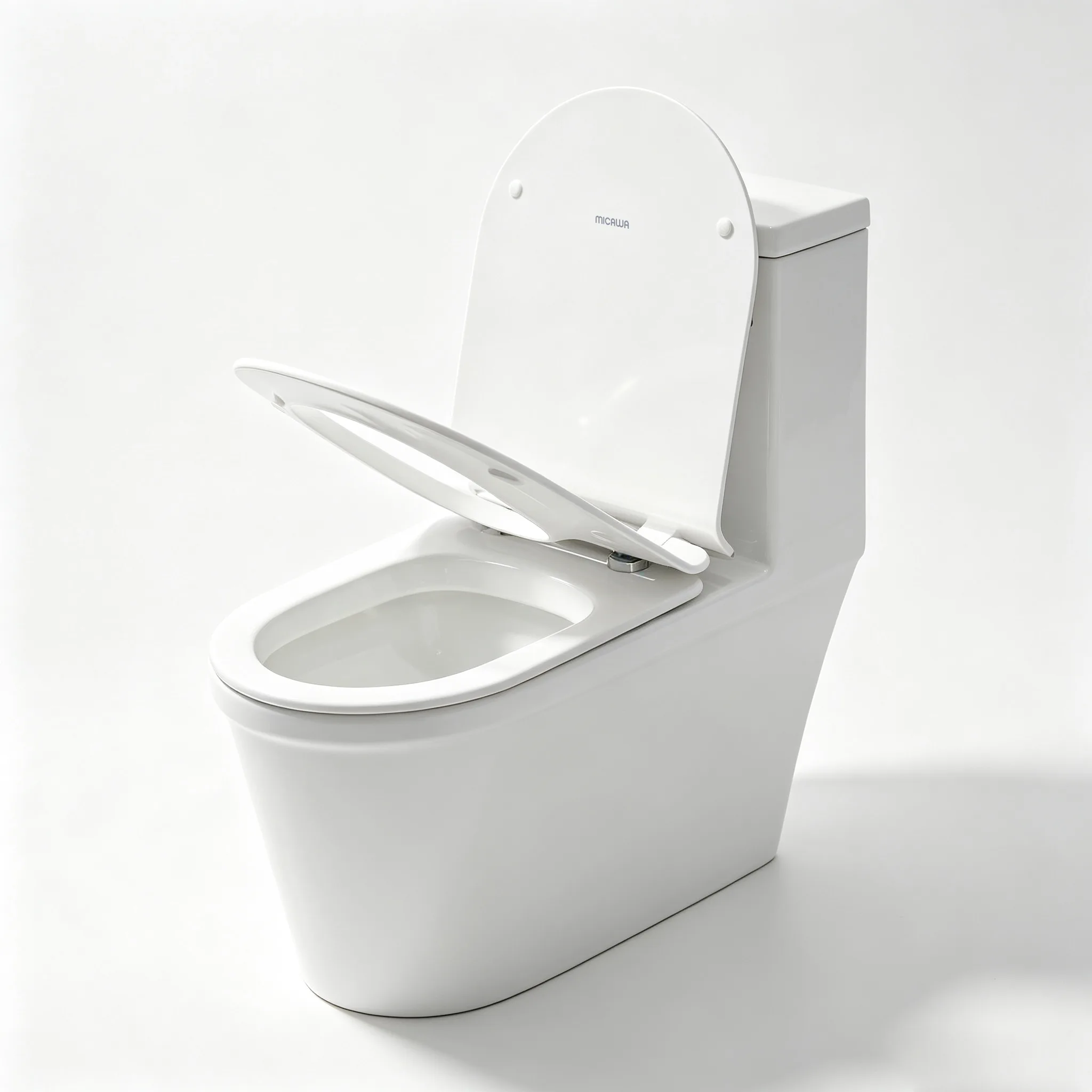

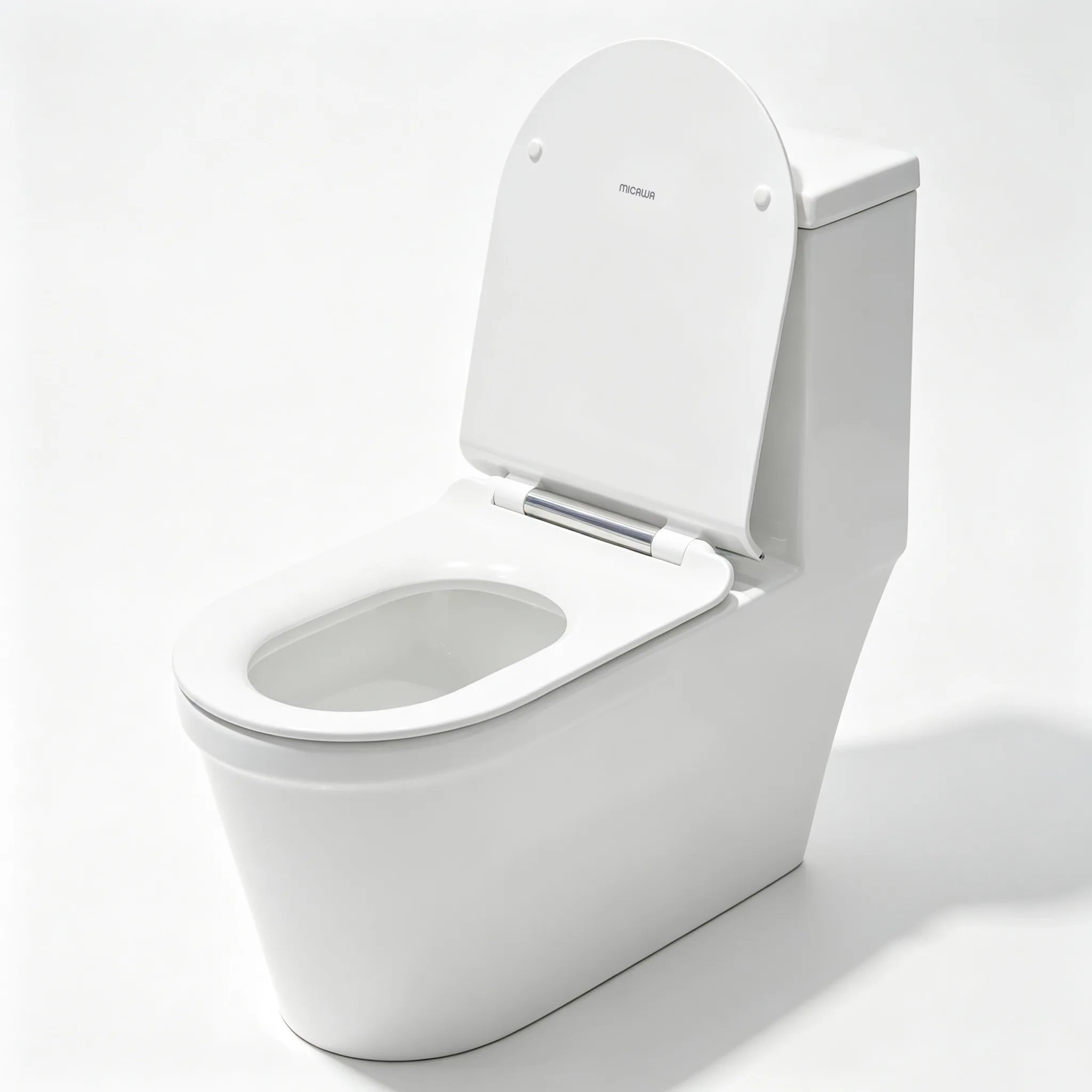

MB-1860A One-Piece Toilet
A high-efficiency one-piece ceramic toilet with an elevated 763mm tank height to enhance gravitational head pressure, providing robust flushing force for municipal projects and housing developments.
- 710 × 365 × 763 mm profile with increased tank head pressure
- Streamlined slimline soft-close seat tested to 50,000+ damping cycles
- Dual-flush mechanism (4.8L / 3.3L) meeting international water-saving criteria
- 300 / 400 mm S-trap floor outlet with universal floor flange sealing
- Model
- MB-1860A
- Dimensions
- 710 × 365 × 763 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-1860A High-Head Gravity Siphonic Toilet Specifications
A high-efficiency one-piece ceramic toilet with an elevated 763mm tank height to enhance gravitational head pressure, providing robust flushing force for municipal projects and housing developments.
Recommended for government housing, student residences, and standard residential towers demanding high mechanical flushing reliability. For projects with restricted bathroom depth under 700mm, compare compact models MB-1891 (690mm) or MB-1906 (670mm).
B2B Project Fit & Sourcing Guidance
Confirm MB-1860A for your market Recommended for government housing, student residences, and standard residential towers demanding high mechanical flushing reliability.
Alternative selection: For projects with restricted bathroom depth under 700mm, compare compact models MB-1891 (690mm) or MB-1906 (670mm).
Technical specifications
Engineering Data & Sourcing Specifications for MB-1860A
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-1860A
- Product type
- One-Piece Toilet
- Dimensions
- 710 × 365 × 763 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- Crystal white
- Product family
- One-Piece Toilets
- Flushing Technology
- Gravity siphon jet (4.8L / 3.3L dual flush)
- Trapway & Waste Path
- ≥50 mm fully glazed trapway
- Water Seal Depth
- 55 mm deep anti-odour water seal
- Container Loading (40HQ)
- ~280 pcs / 40HQ container
- OEM / Customization Scope
- Tender-specific brand marking, bulk contract carton printing, optional slow-close UF seat
Toilet specification checklist
What buyers should confirm for MB-1860A
Check the drainage condition and destination-market requirements before sample approval.Municipal tender conformance
Compliant with multi-unit residential water conservation performance thresholds.
High-volume container utilization
Economical packaging density tailored for containerized bulk project logistics.
Seat durability testing
Reinforced hinge bracket tested to 50,000+ cycles without dampening degradation.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-1860A against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-1860A
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic protection and carton method
- Seat and fitting pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-1860A, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-1860A
Share your rough-in or outlet position, required flush configuration, target market, quantity and delivery destination. MICAWA will review the request against the current MB-1860A technical information and available supply configuration.Continue exploring
Compare one-piece and smart toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-1860A
Use the current product sheet and approved quotation as the final reference for this model.Which rough-in and outlet details should I confirm for MB-1860A?
Confirm whether MB-1860A will connect to a floor or wall outlet, the required rough-in distance and the applicable project drainage drawing.
Which flush and seat configuration applies to MB-1860A?
Request the current MB-1860A technical sheet to confirm its flushing configuration, seat, included fittings and any available options.
What should I send for a MB-1860A toilet quotation?
Send the target market, rough-in or outlet position, expected quantity, required documentation and delivery destination.
