Wall structural anchoring
Basin bowl bolts directly to wall masonry before pedestal shroud is positioned.
Pedestal Basins

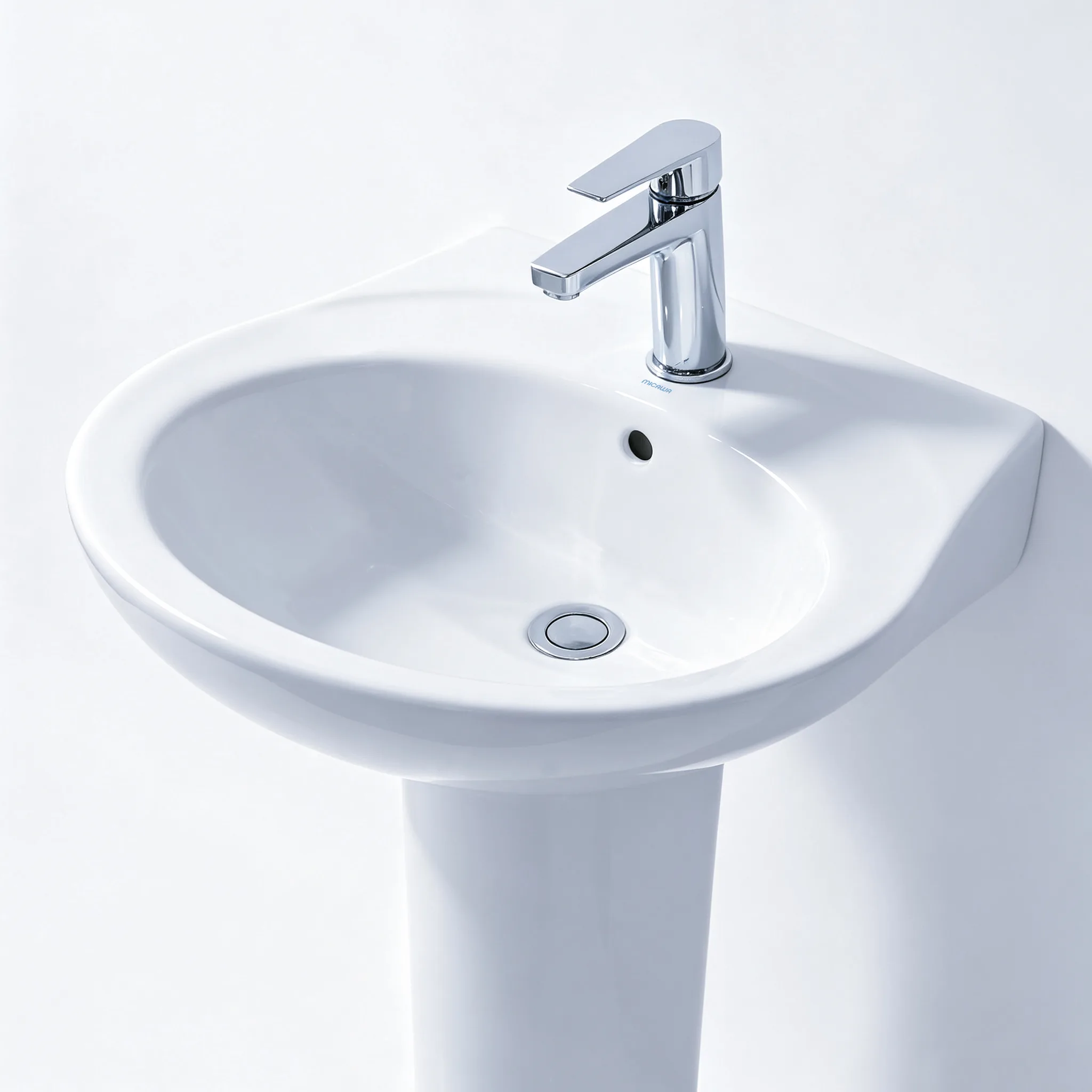

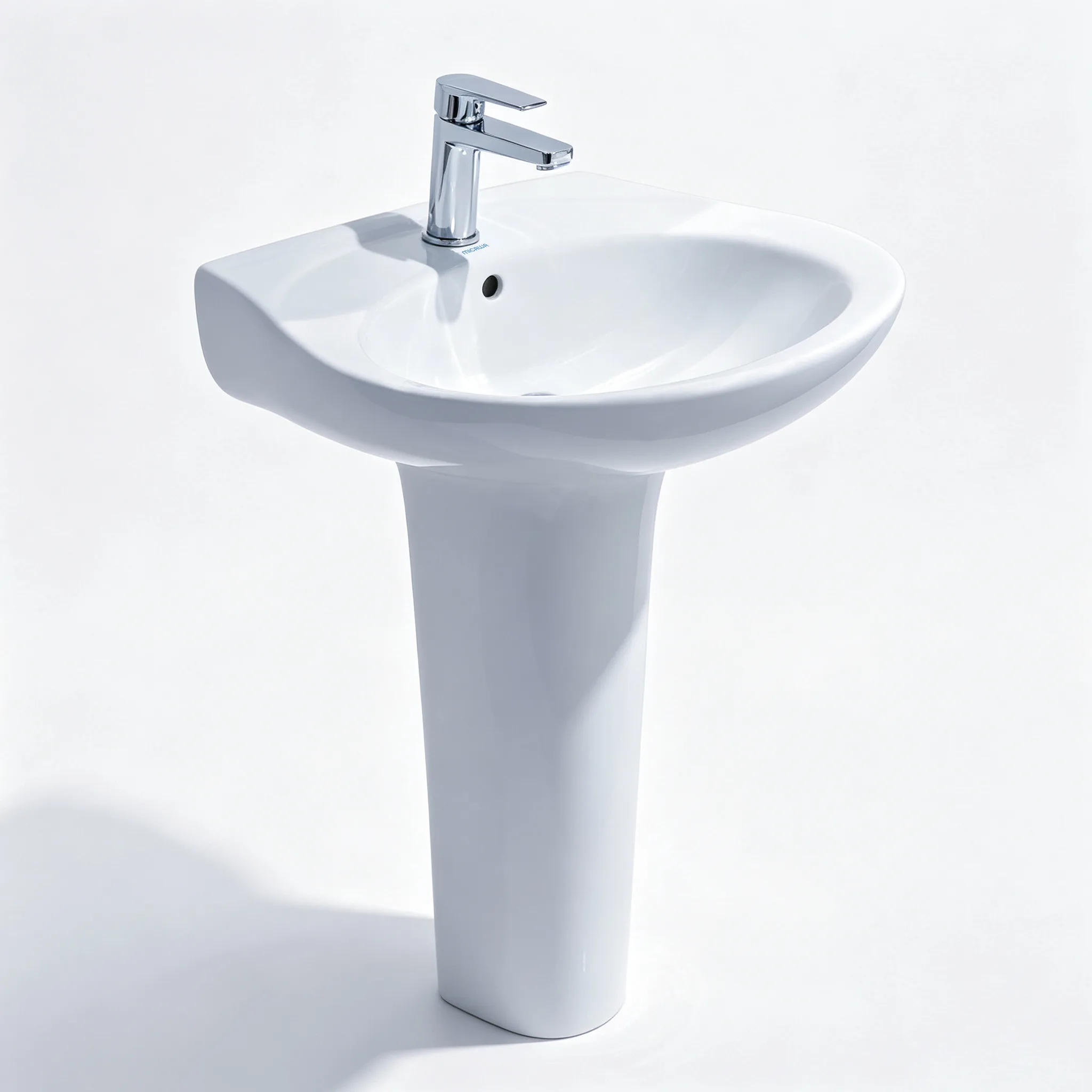

MP-3805 Ceramic Pedestal Basin
A classic 545mm vitrified ceramic pedestal basin featuring a heavy-duty floor-mounted shroud that fully conceals bottle traps and water shut-off valves for traditional and hospitality bathrooms.
- 545 × 507 × 815 mm spacious washing bowl and pedestal set
- Full ceramic pedestal column fully concealing waste trap and supply stops
- Pre-punched single faucet hole with integrated chrome-trimmed overflow
- 1,280°C high-fire vitrified ceramic with low 0.2% water absorption rate
- Model
- MP-3805
- Dimensions
- 545 × 507 × 815 mm
- Configuration
- Pedestal basin · faucet not included
- Finish / color
- Crystal white
Model overview
MP-3805 545mm Ceramic Pedestal Basin Specifications
A classic 545mm vitrified ceramic pedestal basin featuring a heavy-duty floor-mounted shroud that fully conceals bottle traps and water shut-off valves for traditional and hospitality bathrooms.
Specified for heritage hotel restorations, residential housing packages, and guest cloakrooms requiring classic styling without furniture. For smaller cloakroom powder rooms under 500mm width, choose compact MP-3808 (495mm).
B2B Project Fit & Sourcing Guidance
Confirm MP-3805 for your market Specified for heritage hotel restorations, residential housing packages, and guest cloakrooms requiring classic styling without furniture.
Alternative selection: For smaller cloakroom powder rooms under 500mm width, choose compact MP-3808 (495mm).
Technical specifications
Engineering Data & Sourcing Specifications for MP-3805
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MP-3805
- Product type
- Ceramic Pedestal Basin
- Dimensions
- 545 × 507 × 815 mm
- Installation / Outlet
- Pedestal basin · faucet not included
- Finish / Color
- Crystal white
- Product family
- Pedestal Basins
- Flushing Technology
- Gravity drainage (standard 32 mm / 1-1/4" waste outlet)
- Trapway & Waste Path
- Internal pedestal cavity width 160 mm for bottle trap clearance
- Water Seal Depth
- Overflow protection capacity >15 L/min
- Container Loading (40HQ)
- ~320 sets / 40HQ container
- OEM / Customization Scope
- Optional 3-hole 4" / 8" faucet punching, private label branding, project export cartons
Pedestal basin coordination checklist
What buyers should confirm for MP-3805
Check the basin and pedestal as an installation set against the room plan and plumbing interfaces.Rough plumbing height
Align waste outlet centreline at approx. 500 mm AFF and water stops at 550 mm AFF.
Faucet and pop-up coordination
Matches standard single-lever basin mixers; pop-up waste with overflow required.
Split set packaging
Basin and pedestal packed in twin-compartment drop-tested carton; ~320 sets / 40HQ.
Category engineering
Ceramic Basin Manufacturing Advantages
MICAWA ceramic basins use high-pressure casting, high-temperature vitrification and controlled glazing and dimensional inspection to support coordinated vanity and project installation.High-pressure casting
Basin bodies are high-pressure cast and fired at 1,280°C for 18 hours for full ceramic vitrification.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with a total glaze thickness of 0.5–1.0 mm and water absorption of no more than 0.2%.
Thermal-cycle resistance
Alternating hot-and-cold cycle tests show no cracking, supporting use in changing bathroom temperatures.
Complete basin range
The product line covers countertop, semi-recessed, undermount, wall-hung, pedestal and integrated basin formats.
Practical bowl depth
Bowl depths across the range extend from 140 to 210 mm.
Controlled installation details
Overflow holes are standard within applicable configurations, and dimensional tolerance is tightly controlled to ±1.5 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MP-3805 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MP-3805
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Separate basin and pedestal protection
- Fitting and accessory pack list
- Model labels and shipping marks
- Loading quantity after carton confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MP-3805, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MP-3805
Share your required dimensions, faucet-hole arrangement, waste and overflow requirements, target market and quantity. MICAWA will review the request against the current MP-3805 technical information and available supply configuration.Continue exploring
Compare basin formats for the same bathroom program
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Ceramic Basins FAQ
Questions to confirm for MP-3805
Use the current product sheet and approved quotation as the final reference for this model.How should the pedestal and basin be coordinated for MP-3805?
Confirm the current overall dimensions, wall position, floor condition and fixing requirements for the complete MP-3805 set.
Which faucet and waste details are needed for MP-3805?
Provide the faucet-hole arrangement, waste size, overflow requirement and any fitting expectations.
What should I send for a MP-3805 basin quotation?
Send required quantity, target market, installation drawing, faucet configuration and waste or overflow requirements.
