Which cabinet dimensions and installation details apply to MZS-333-10SW?

Request the current MZS-333-10SW drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.

How should the basin and countertop be specified for MZS-333-10SW?

Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.

Which finish, hardware and branding options can be reviewed for MZS-333-10SW?

Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.

Bathroom Vanities

MZS-333-10SW Bathroom Vanity Cabinet

A 1000mm wall-hung floating vanity crafted in warm natural walnut tones, paired with an 850×850mm square wooden-frame smart mirror featuring dual-key touch lighting and anti-fog technology.

1000 × 500 × 520 mm warm walnut floating console layout
850 × 850 × 43 mm square solid-wood frame smart mirror with dual touch keys
Three-colour adjustable ambient LED backlight with rapid heating defogger
High-grade multi-layer solid wood core protected with waterproof UV sealer

Model: MZS-333-10SW
Dimensions: 1000 × 500 × 520 mm
Configuration: Wooden-frame smart mirror · ceramic basin
Finish / color: Walnut

Request MZS-333-10SW Information

Model overview

MZS-333-10SW 1000mm Warm Walnut Floating Vanity Specifications

A 1000mm wall-hung floating vanity crafted in warm natural walnut tones, paired with an 850×850mm square wooden-frame smart mirror featuring dual-key touch lighting and anti-fog technology.

Specified for boutique eco-resorts, organic luxury retreats, and mid-century modern residential developments. For minimalist black styling with fluted glass doors, evaluate MXD-335-10SW.

B2B Project Fit & Sourcing Guidance

Specified for boutique eco-resorts, organic luxury retreats, and mid-century modern residential developments.

Alternative selection: For minimalist black styling with fluted glass doors, evaluate MXD-335-10SW.

Confirm MZS-333-10SW for your market

Technical specifications

Engineering Data & Sourcing Specifications for MZS-333-10SW

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: MZS-333-10SW
Product type: Bathroom Vanity Cabinet
Dimensions: 1000 × 500 × 520 mm
Installation / Outlet: Wooden-frame smart mirror · ceramic basin
Finish / Color: Walnut
Product family: Bathroom Vanities
Flushing Technology: Standard gravity basin drain with overflow
Trapway & Waste Path: Internal drawer cutout 120 mm width
Water Seal Depth: Waterproof UV-cured lacquer over multi-layer wood
Container Loading (40HQ): ~175 sets / 40HQ container
OEM / Customization Scope: Walnut stain shades (Light/Medium/Dark), OEM laser logo on mirror frame, contract carton marks

Bathroom vanity configuration checklist

What buyers should confirm for MZS-333-10SW

Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.

Natural walnut texture matching

Veneer grain is inspected for consistent tone across drawer faces and mirror frame.

Dual-key touch operation

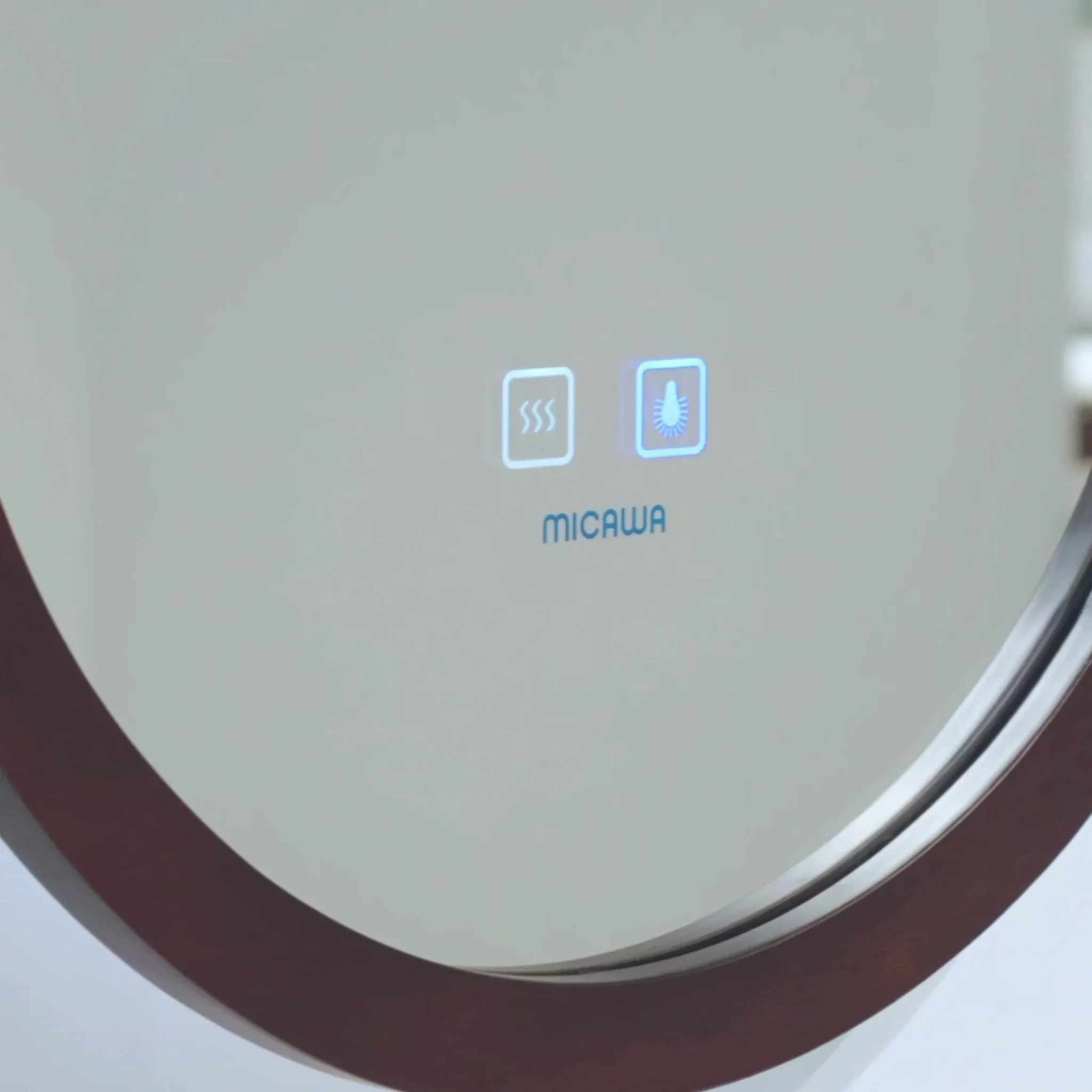

Independent touch keys on mirror glass control LED lighting temperature and defogger.

Soft-close hardware testing

Concealed runners tested to 40,000 opening cycles under 30 kg dynamic load.

Protective export packaging

Dense foam cradles prevent edge bruising during sea transit; ~175 sets / 40HQ.

Category engineering

Bathroom Vanity Manufacturing Advantages

MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.

E0 antibacterial multilayer board

18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.

Fully sealed cabinet edges

High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.

Nine-stage painted finish

PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.

Tested soft-close hinges

Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.

Heavy-duty concealed runners

Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.

Clear smart-mirror system

High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.

Modular beauty storage

Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.

Multiple countertop systems

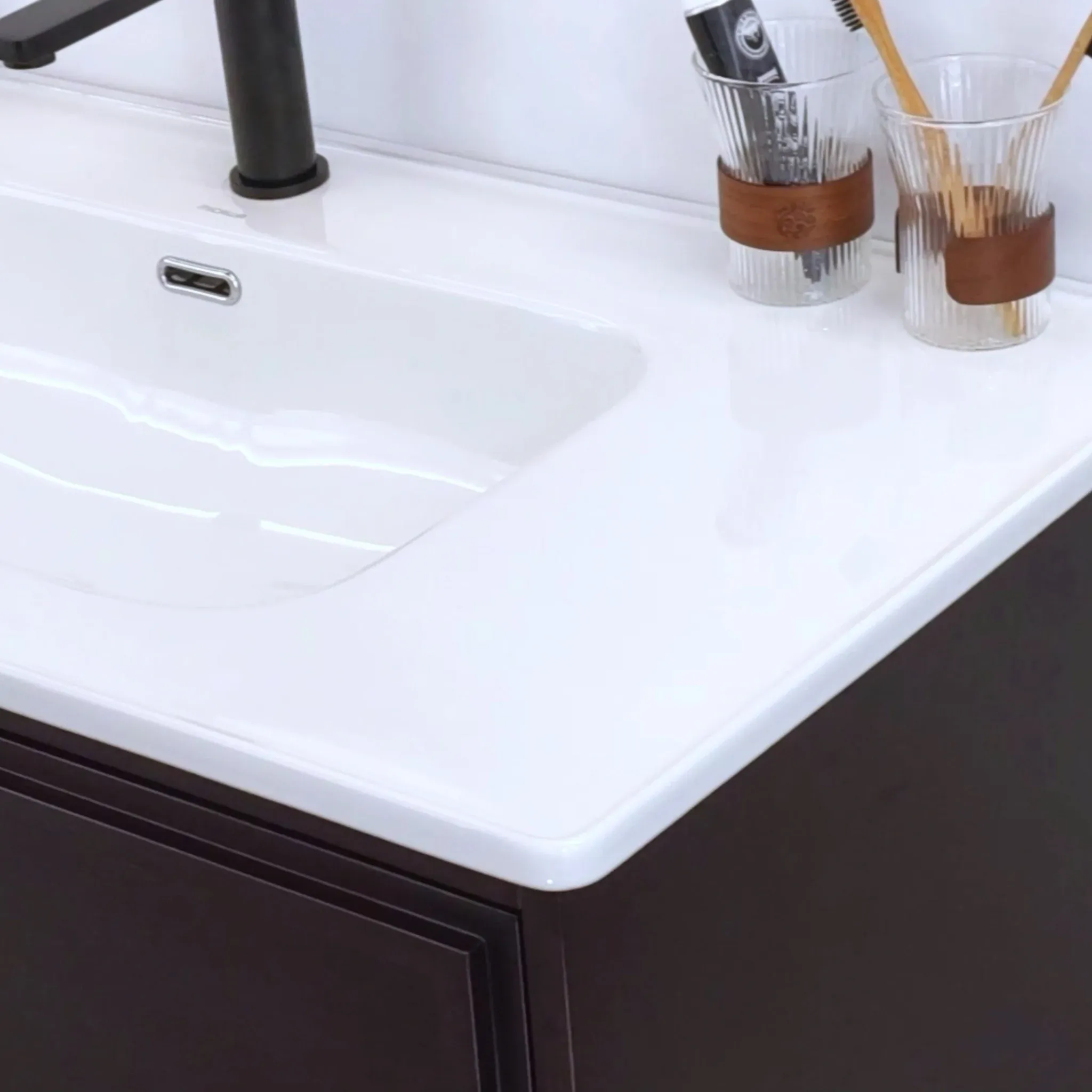

Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.

Project-level customisation

Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MZS-333-10SW against the current technical sheet and quotation.

Packaging & delivery

Packing checks for MZS-333-10SW

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Cabinet, basin and mirror protection
Hardware and accessory pack list
Brand labels and shipping marks
Room or model-based delivery sequence

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model MZS-333-10SW, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for MZS-333-10SW

Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MZS-333-10SW technical information and available supply configuration.

Inquire about MZS-333-10SW

Name Email

Mobile / WhatsApp

Company Name Message
