Which cabinet dimensions and installation details apply to MXD-335-10SW?

Request the current MXD-335-10SW drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.

How should the basin and countertop be specified for MXD-335-10SW?

Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.

Which finish, hardware and branding options can be reviewed for MXD-335-10SW?

Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.

Bathroom Vanities

MXD-335-10SW Bathroom Vanity Cabinet

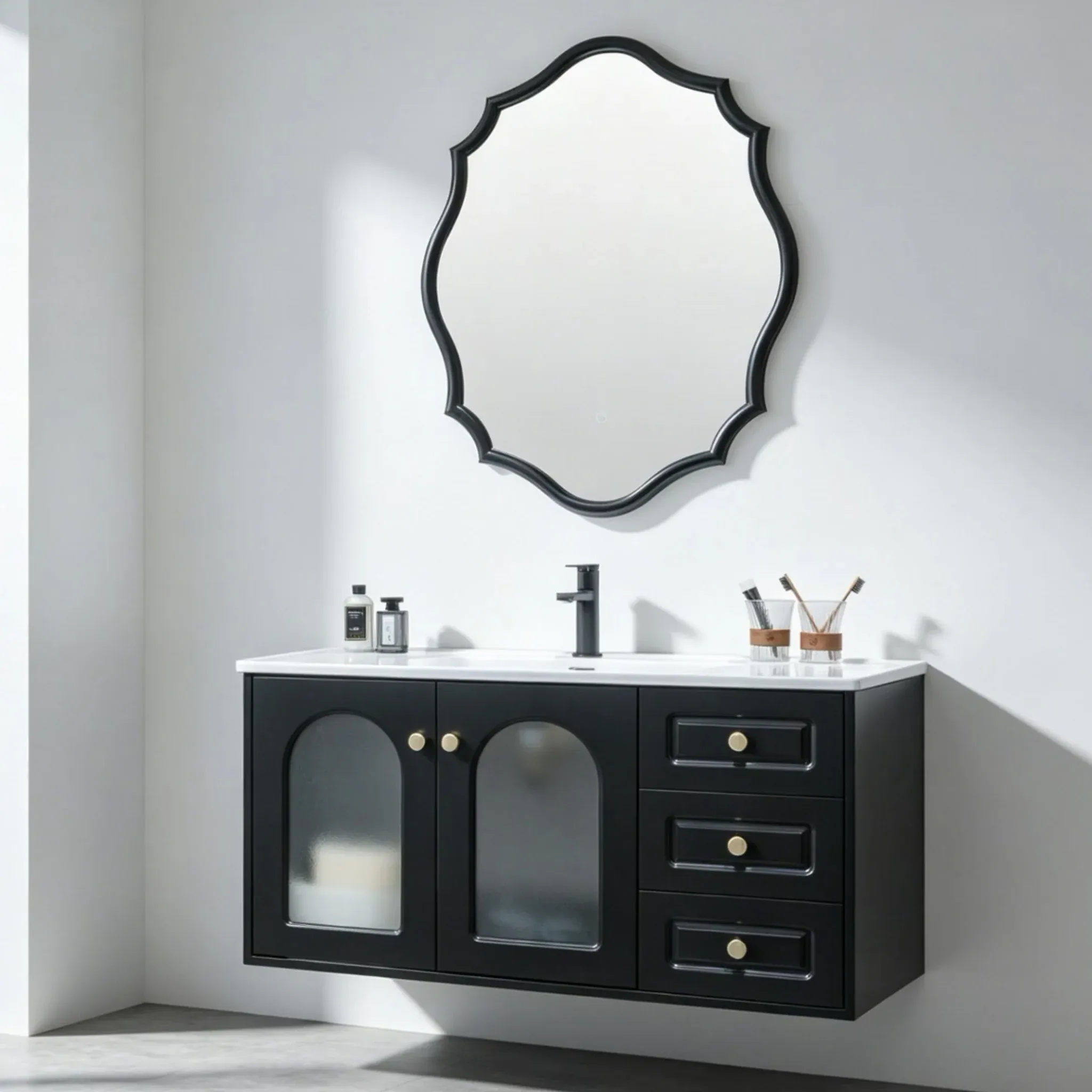

A 1000mm designer wall-hung bathroom vanity combining a closed black timber finish, silver-mist fluted glass cabinetry, an integrated ceramic basin (MP-4726-10), and a coordinated 930×700mm wooden-frame ambient LED mirror.

1000 × 500 × 520 mm compact luxury floating footprint
Sophisticated closed black lacquer finish with silver-mist tempered glass doors
930 × 700 × 38 mm solid-wood frame smart mirror with 3-colour backlight and defogger
Fitted with dedicated MP-4726-10 integrated ceramic basin with anti-splash lip

Model: MXD-335-10SW
Dimensions: 1000 × 500 × 520 mm
Configuration: Wooden-frame smart mirror · ceramic basin MP-4726-10
Finish / color: Closed black

Request MXD-335-10SW Information

Model overview

MXD-335-10SW 1000mm Black & Fluted Glass Vanity Specifications

Specified for boutique luxury hotels, contemporary urban townhouses, and dark-palette designer ensuites. If a lighter beige-grey scheme is needed for Scandinavian aesthetics, select MXD-337-10HW.

B2B Project Fit & Sourcing Guidance

Specified for boutique luxury hotels, contemporary urban townhouses, and dark-palette designer ensuites.

Alternative selection: If a lighter beige-grey scheme is needed for Scandinavian aesthetics, select MXD-337-10HW.

Confirm MXD-335-10SW for your market

Technical specifications

Engineering Data & Sourcing Specifications for MXD-335-10SW

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: MXD-335-10SW
Product type: Bathroom Vanity Cabinet
Dimensions: 1000 × 500 × 520 mm
Installation / Outlet: Wooden-frame smart mirror · ceramic basin MP-4726-10
Finish / Color: Closed black
Product family: Bathroom Vanities
Flushing Technology: Standard basin gravity drain with integrated overflow
Trapway & Waste Path: Rear internal plumbing notch 110 mm
Water Seal Depth: Multi-layer solid wood and lacquer sealed finish
Container Loading (40HQ): ~175 sets / 40HQ container
OEM / Customization Scope: Glass door fluting texture, custom frame finishes, hotel project barcode carton printing

Bathroom vanity configuration checklist

What buyers should confirm for MXD-335-10SW

Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.

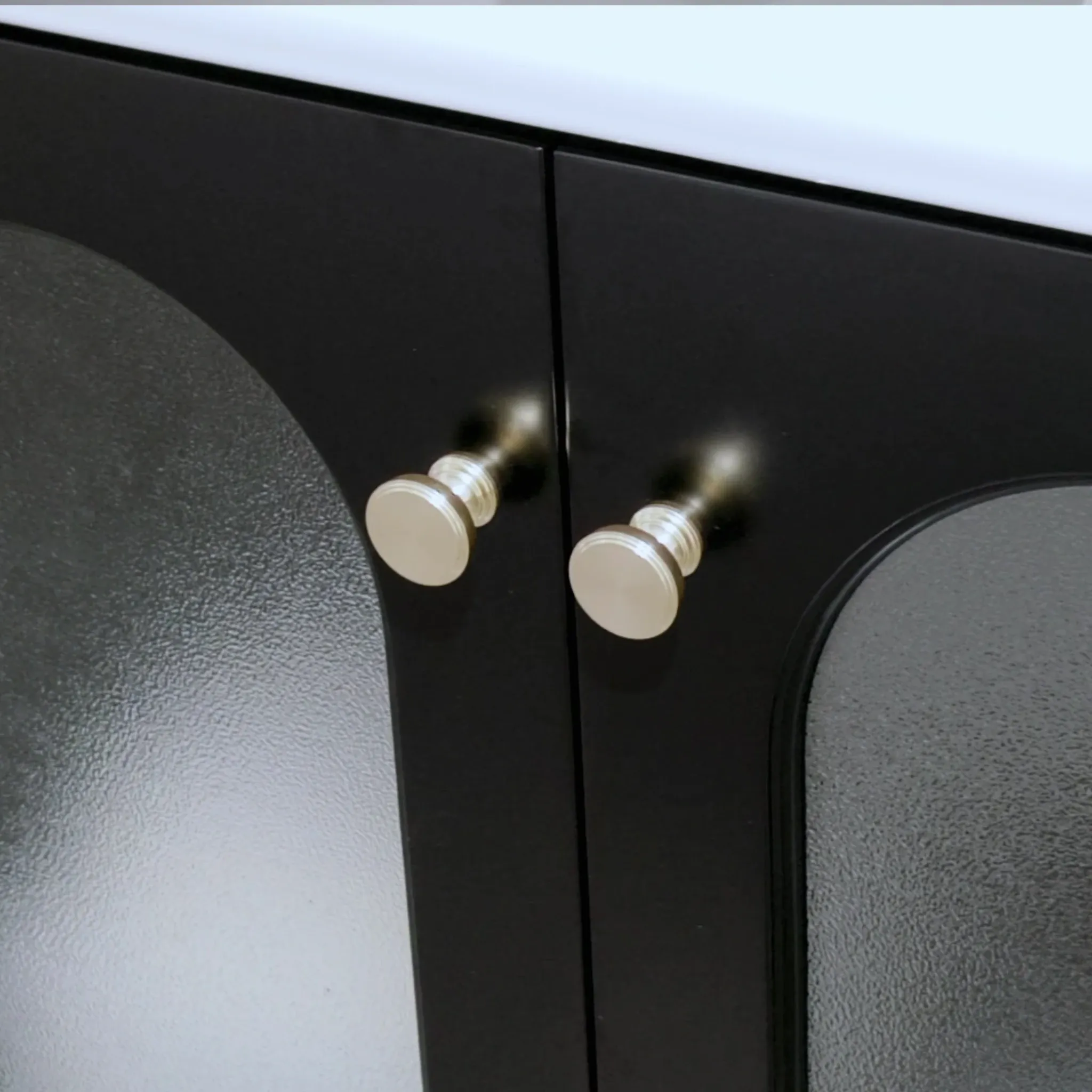

Fluted glass impact safety

Cabinet doors utilize tempered silver-mist safety glass resistant to everyday impacts.

3-colour ambient backlight

Mirror button toggles 3000K warm, 4000K natural, and 6000K cool light output.

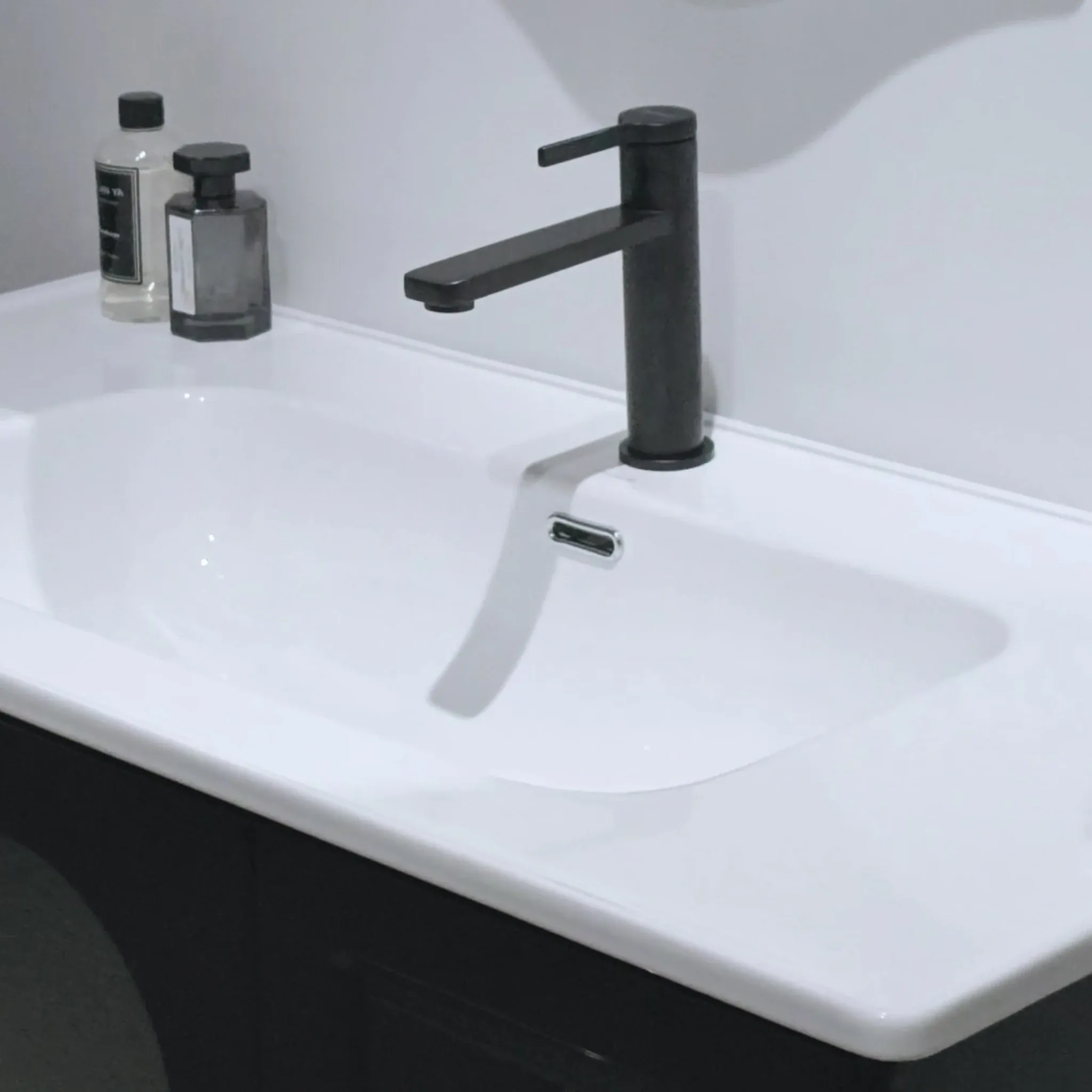

Ceramic basin model pairing

Factory fitted and sealed with certified MP-4726-10 ceramic vanity basin.

Export crate loading

Packed in 2 heavy-gauge export boxes; approx. 175 sets per 40HQ container.

Category engineering

Bathroom Vanity Manufacturing Advantages

MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.

E0 antibacterial multilayer board

18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.

Fully sealed cabinet edges

High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.

Nine-stage painted finish

PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.

Tested soft-close hinges

Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.

Heavy-duty concealed runners

Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.

Clear smart-mirror system

High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.

Modular beauty storage

Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.

Multiple countertop systems

Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.

Project-level customisation

Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MXD-335-10SW against the current technical sheet and quotation.

Packaging & delivery

Packing checks for MXD-335-10SW

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Cabinet, basin and mirror protection
Hardware and accessory pack list
Brand labels and shipping marks
Room or model-based delivery sequence

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model MXD-335-10SW, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for MXD-335-10SW

Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MXD-335-10SW technical information and available supply configuration.

Inquire about MXD-335-10SW
