Vertical clearance advantage
540 mm reduced height leaves generous under-cabinet floor space for scales or baskets.
Bathroom Vanities

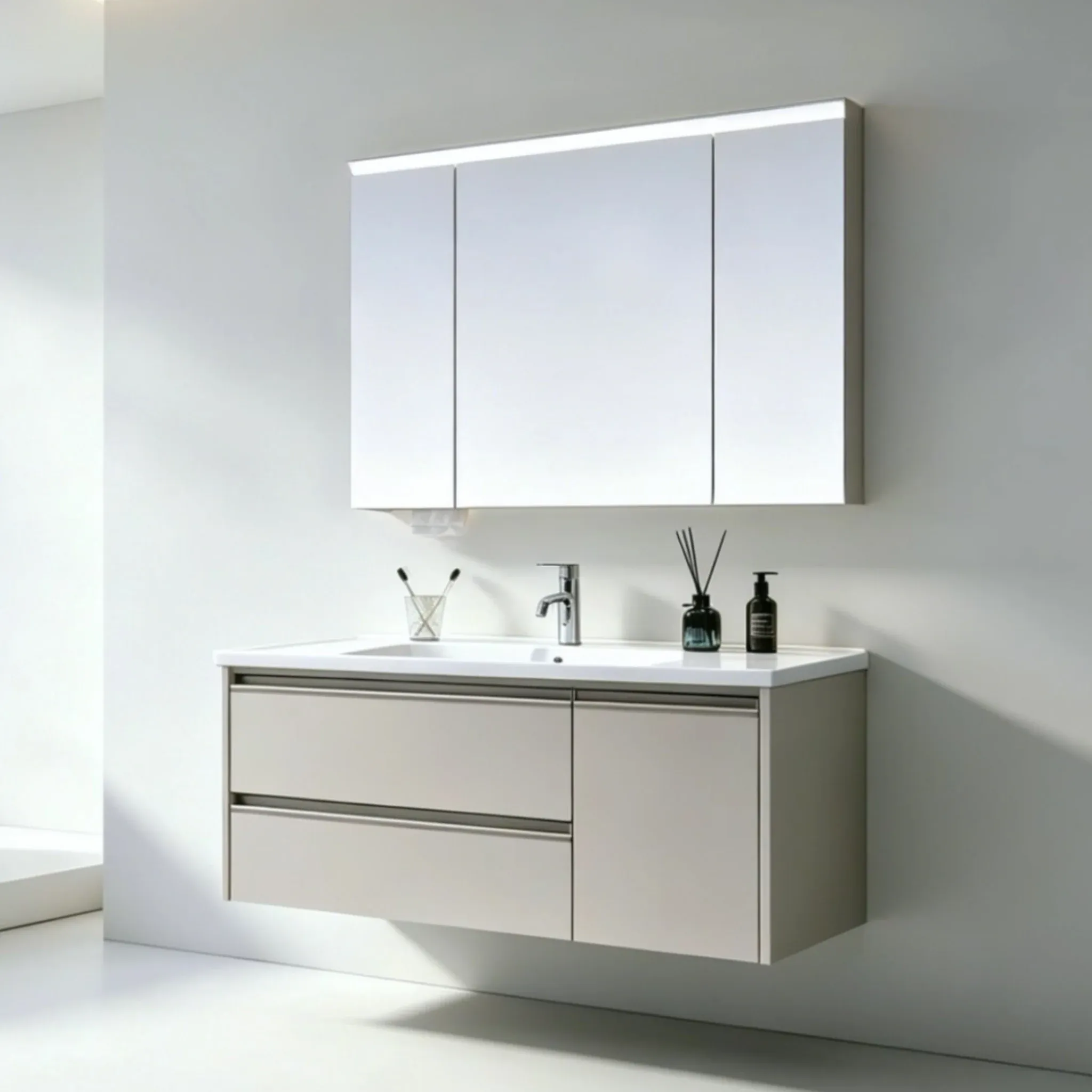

MXD-338-10HW Bathroom Vanity Cabinet
A space-conscious 1000mm floating vanity engineered with a reduced 540mm vertical cabinet profile and compact depth, maximizing floor clearance in tight bathroom layouts while retaining high-capacity mirror storage.
- 1000 × 500 × 540 mm space-saving shallow floating elevation
- Conserves 60mm vertical clearance for easier floor maintenance and stool storage

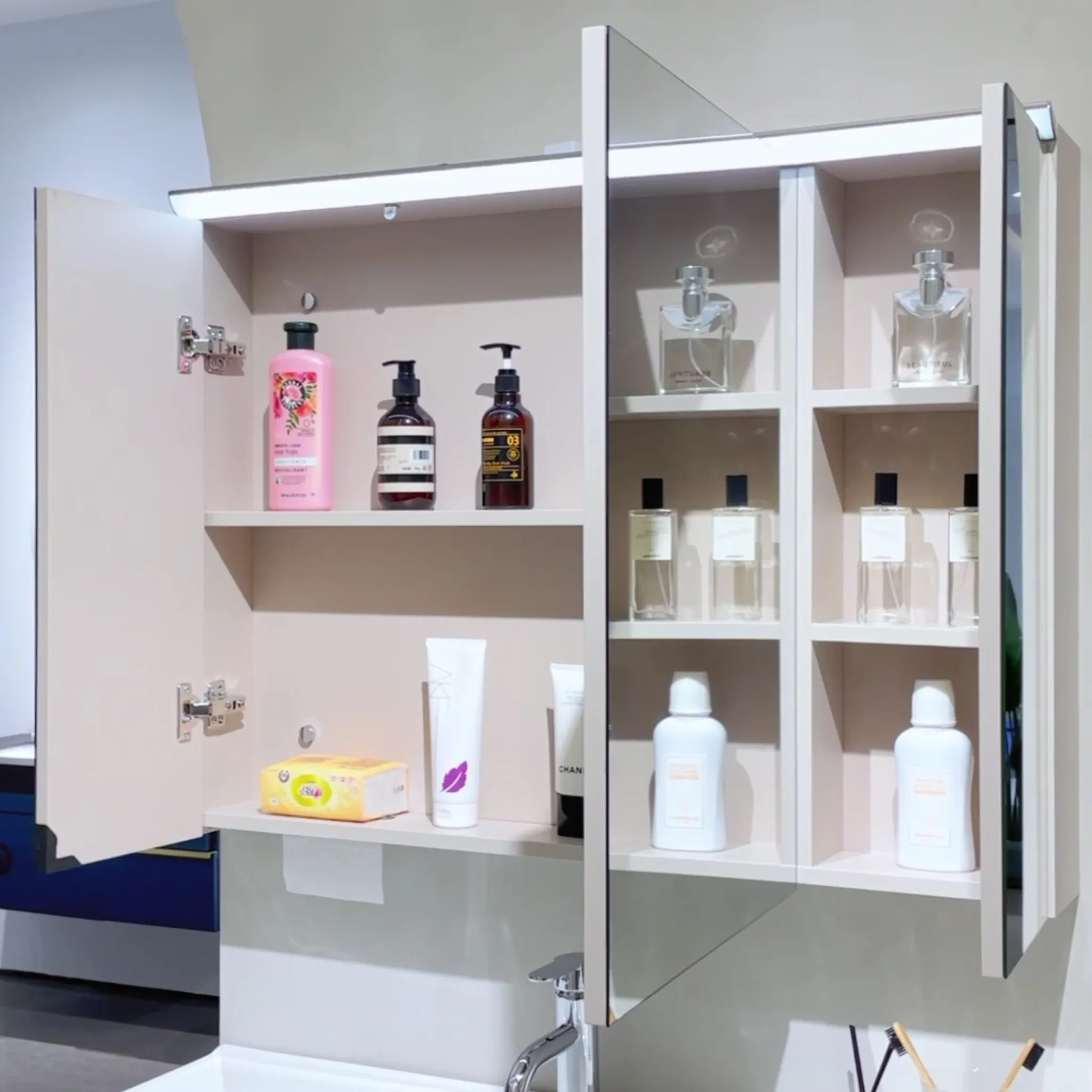

- 950 × 700 × 140 mm full-coverage intelligent storage mirror cabinet

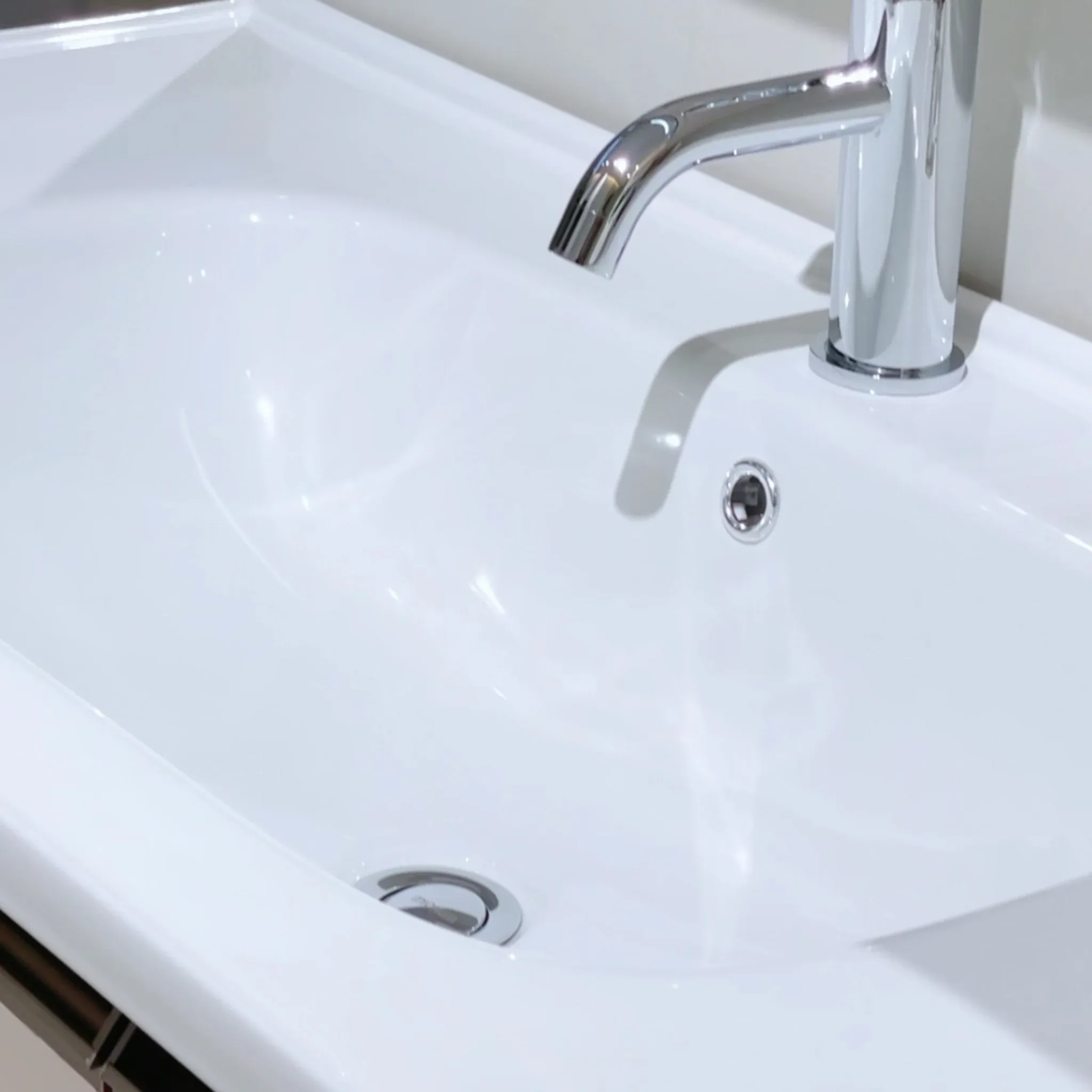

- Fitted with MP-4728-10 integrated ceramic basin with stain-resistant glaze
- Model
- MXD-338-10HW
- Dimensions
- 1000 × 500 × 540 mm
- Configuration
- Mirror cabinet · ceramic basin MP-4728-10
- Finish / color
- Light beige-grey
Model overview
MXD-338-10HW 1000mm Shallow-Footprint Floating Vanity Specifications
A space-conscious 1000mm floating vanity engineered with a reduced 540mm vertical cabinet profile and compact depth, maximizing floor clearance in tight bathroom layouts while retaining high-capacity mirror storage.
Tailored for compact hotel guestrooms, high-density apartment developments, and micro-unit urban housing. If deeper under-basin cabinet drawer volume is required, select standard MXD-337-10HW.
B2B Project Fit & Sourcing Guidance
Confirm MXD-338-10HW for your market Tailored for compact hotel guestrooms, high-density apartment developments, and micro-unit urban housing.
Alternative selection: If deeper under-basin cabinet drawer volume is required, select standard MXD-337-10HW.
Technical specifications
Engineering Data & Sourcing Specifications for MXD-338-10HW
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MXD-338-10HW
- Product type
- Bathroom Vanity Cabinet
- Dimensions
- 1000 × 500 × 540 mm
- Installation / Outlet
- Mirror cabinet · ceramic basin MP-4728-10
- Finish / Color
- Light beige-grey
- Product family
- Bathroom Vanities
- Flushing Technology
- Standard ceramic basin gravity drainage with overflow
- Trapway & Waste Path
- Compact drawer U-cutout 110 mm
- Water Seal Depth
- E0 moisture-resistant structural core
- Container Loading (40HQ)
- ~195 sets / 40HQ container
- OEM / Customization Scope
- Private brand printing, custom board laminates, bespoke export master carton
Bathroom vanity configuration checklist
What buyers should confirm for MXD-338-10HW
Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.Wall framing checklist
Requires secure stud anchors at 540 mm height to ensure rigid horizontal alignment.
Ceramic basin compatibility
Factory-fitted with certified MP-4728-10 ceramic basin.
Container loading efficiency
Reduced cabinet volume increases export packing yield to ~195 sets / 40HQ.
Category engineering
Bathroom Vanity Manufacturing Advantages
MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.E0 antibacterial multilayer board
18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.
Fully sealed cabinet edges
High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.
Nine-stage painted finish
PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.
Tested soft-close hinges
Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.
Heavy-duty concealed runners
Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.
Clear smart-mirror system
High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.
Modular beauty storage
Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.
Multiple countertop systems
Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.
Project-level customisation
Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MXD-338-10HW against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MXD-338-10HW
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Cabinet, basin and mirror protection
- Hardware and accessory pack list
- Brand labels and shipping marks
- Room or model-based delivery sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MXD-338-10HW, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MXD-338-10HW
Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MXD-338-10HW technical information and available supply configuration.Continue exploring
