Countertop cutout coordination
Supplied with DXF/CAD cut-out file for CNC stone countertop fabrication.
Undermount Basins

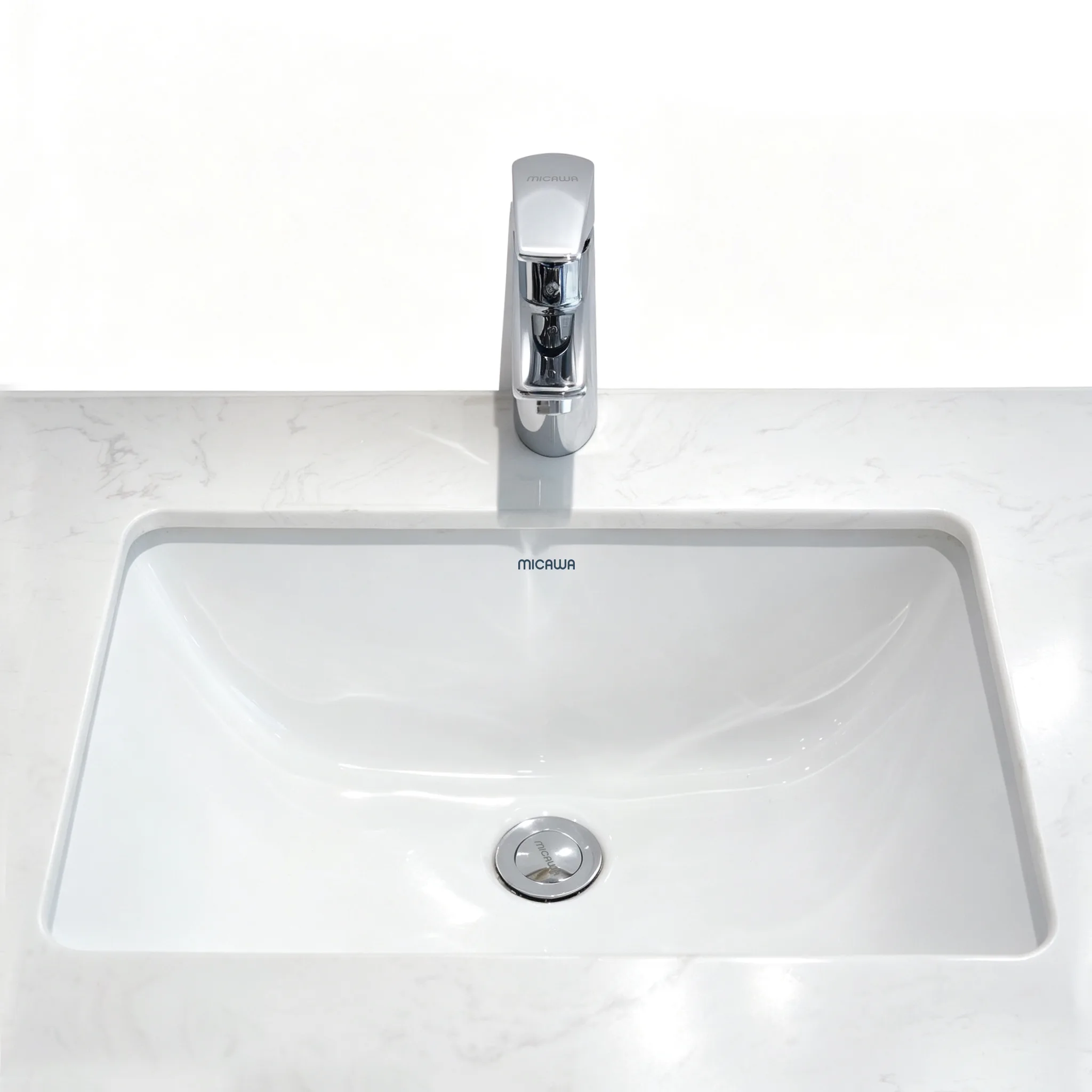

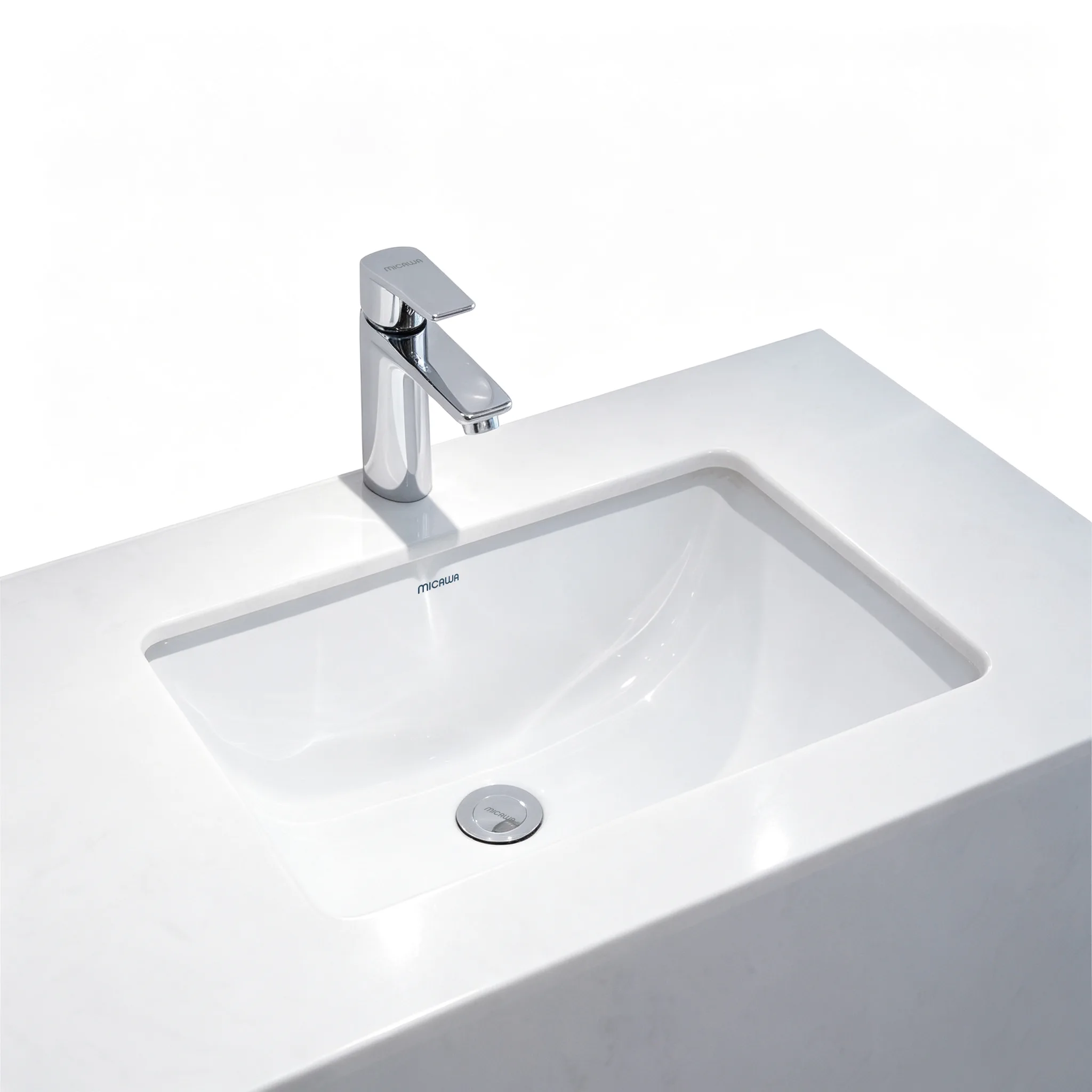

MP-4717 Undermount Ceramic Basin
A 600mm rectangular undermount ceramic basin designed to mount seamlessly beneath quartz, granite, or solid-surface countertops, enabling effortless wipe-into-bowl maintenance.
- 600 × 400 × 220 mm generous undermount washing volume
- Seamless sub-countertop mounting eliminating silicone seams on vanity surface
- Extra-deep 220mm bowl preventing splashback onto surrounding counter
- Precision-glazed internal rim with unglazed mounting flange for strong epoxy adhesion
- Model
- MP-4717
- Dimensions
- 600 × 400 × 220 mm
- Configuration
- Waste not included
- Finish / color
- Crystal white
Model overview
MP-4717 600mm Seamless Undermount Ceramic Basin Specifications
A 600mm rectangular undermount ceramic basin designed to mount seamlessly beneath quartz, granite, or solid-surface countertops, enabling effortless wipe-into-bowl maintenance.
The standard specification for 4- and 5-star hotel guestrooms, commercial office towers, and multi-unit residential vanities. If an oval contoured undermount basin is preferred for curved vanity lines, choose MP-4807.
B2B Project Fit & Sourcing Guidance
Confirm MP-4717 for your market The standard specification for 4- and 5-star hotel guestrooms, commercial office towers, and multi-unit residential vanities.
Alternative selection: If an oval contoured undermount basin is preferred for curved vanity lines, choose MP-4807.
Technical specifications
Engineering Data & Sourcing Specifications for MP-4717
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MP-4717
- Product type
- Undermount Ceramic Basin
- Dimensions
- 600 × 400 × 220 mm
- Installation / Outlet
- Waste not included
- Finish / Color
- Crystal white
- Product family
- Undermount Basins
- Flushing Technology
- High-flow undermount gravity drain with overflow
- Trapway & Waste Path
- 45 mm standard waste hole
- Water Seal Depth
- 220 mm extra-deep bowl capacity
- Container Loading (40HQ)
- ~650 pcs / 40HQ container
- OEM / Customization Scope
- CNC cutout DXF sharing, private logo on inner bowl wall, contractor bulk palletizing
Undermount basin installation checklist
What buyers should confirm for MP-4717
Match the basin to the countertop cut-out, fixing method and plumbing layout before release.Mounting clip hardware
Includes under-counter anchor clips and epoxy mounting brackets in installation pack.
Plumbing trapway clearance
Verify 220 mm bowl depth plus bottle trap clearance inside vanity cabinet framing.
Dense export container yield
Stackable nesting shape yields approx. 650 units per 40HQ container.
Category engineering
Ceramic Basin Manufacturing Advantages
MICAWA ceramic basins use high-pressure casting, high-temperature vitrification and controlled glazing and dimensional inspection to support coordinated vanity and project installation.High-pressure casting
Basin bodies are high-pressure cast and fired at 1,280°C for 18 hours for full ceramic vitrification.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with a total glaze thickness of 0.5–1.0 mm and water absorption of no more than 0.2%.
Thermal-cycle resistance
Alternating hot-and-cold cycle tests show no cracking, supporting use in changing bathroom temperatures.
Complete basin range
The product line covers countertop, semi-recessed, undermount, wall-hung, pedestal and integrated basin formats.
Practical bowl depth
Bowl depths across the range extend from 140 to 210 mm.
Controlled installation details
Overflow holes are standard within applicable configurations, and dimensional tolerance is tightly controlled to ±1.5 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MP-4717 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MP-4717
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Rim and glazed-surface protection
- Fixing and accessory pack list
- Model labels and shipping marks
- Loading quantity after carton confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MP-4717, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MP-4717
Share your countertop material and cut-out, fixing method, faucet position, waste and overflow requirements, quantity and market. MICAWA will review the request against the current MP-4717 technical information and available supply configuration.Continue exploring
Compare undermount and countertop basin options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Ceramic Basins FAQ
Questions to confirm for MP-4717
Use the current product sheet and approved quotation as the final reference for this model.Can I request a countertop cut-out drawing for MP-4717?
Yes. Request the current MP-4717 drawing and confirm the cut-out, reveal direction and fixing method before fabrication.
Which countertop details should I provide for MP-4717?
Share countertop material, thickness, cabinet clearance and faucet position so installation compatibility can be reviewed.
Which plumbing details are needed for MP-4717?
Confirm the waste connection, overflow requirement and available clearance inside the vanity or counter.
