Which cabinet dimensions and installation details apply to MZS-80SW?

Request the current MZS-80SW drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.

How should the basin and countertop be specified for MZS-80SW?

Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.

Which finish, hardware and branding options can be reviewed for MZS-80SW?

Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.

Bathroom Vanities

MZS-80SW Bathroom Vanity Cabinet

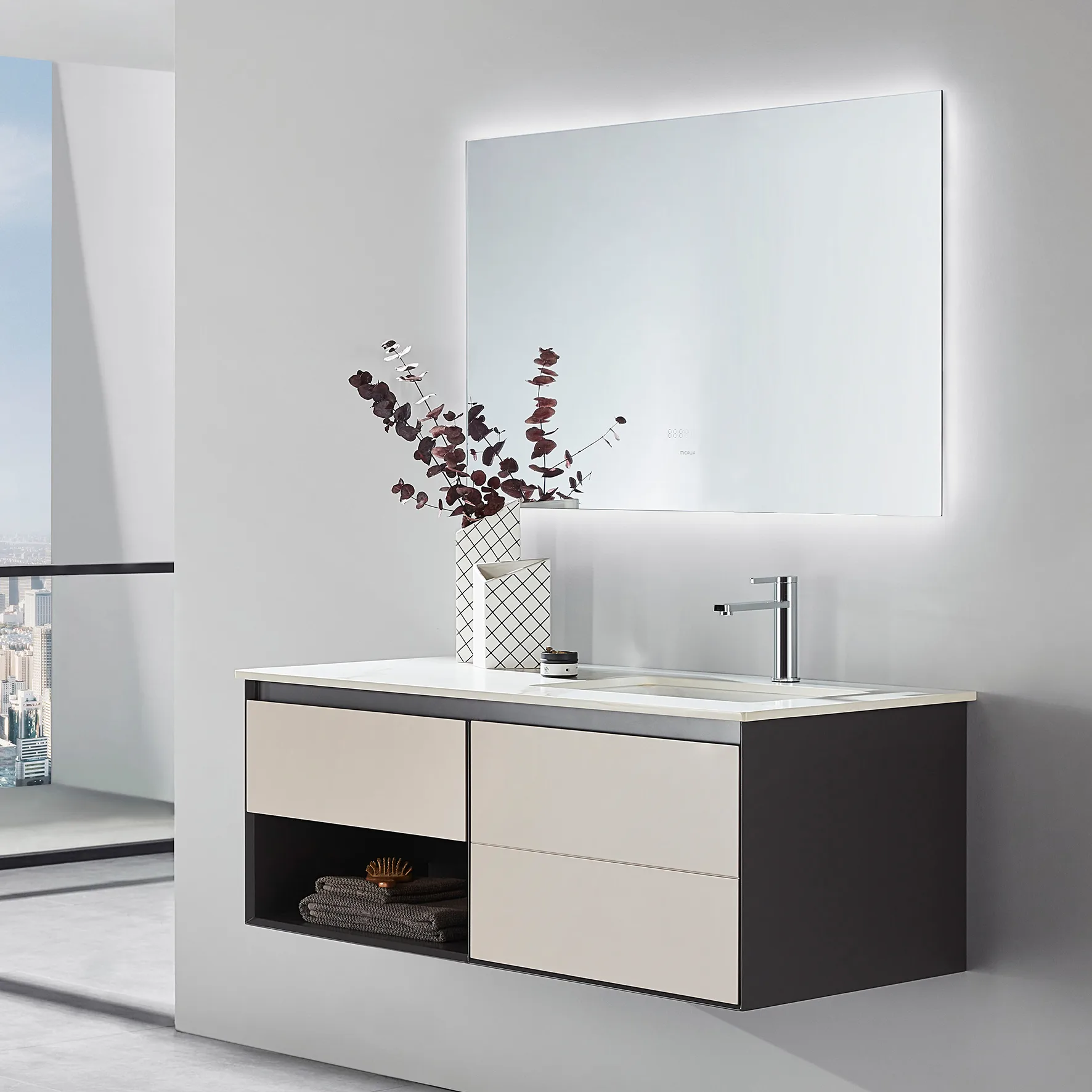

A 1200mm modern floating bathroom vanity pairing an elegant fish-belly-white sintered-stone countertop with a digital 3-function smart mirror featuring integrated LED backlighting, fast graphene defogging, and time display.

1200 × 560 × 462 mm floating wall-mount elevation

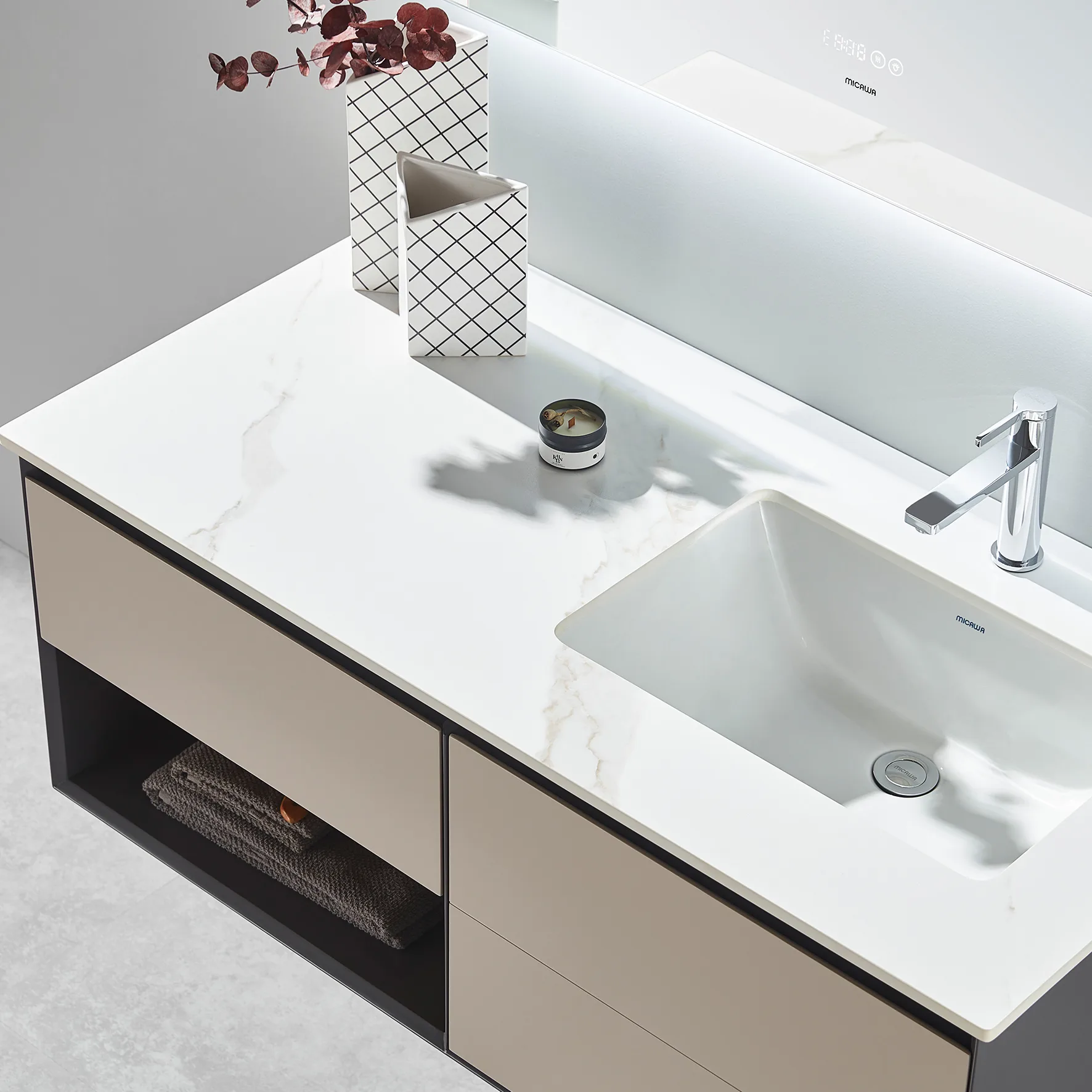

Fish-belly-white sintered-stone top with integrated seamless basin
1100 × 700 mm smart digital mirror with LED light, rapid defogging, and digital clock
Solid wood and multi-layer structural core with soft-closing Blum-style runners

Model: MZS-80SW
Dimensions: 1200 × 560 × 462 mm
Configuration: Three-function intelligent mirror
Finish / color: Graphite grey / khaki grey

Request MZS-80SW Information

Model overview

MZS-80SW 1200mm High-Tech Digital Vanity Suite Specifications

Engineered for smart hotel rooms, modern residential master bathrooms, and wellness-focused real estate developments. For tighter 1000mm bathroom dimensions, consider the compact walnut series MZS-333-10SW.

B2B Project Fit & Sourcing Guidance

Engineered for smart hotel rooms, modern residential master bathrooms, and wellness-focused real estate developments.

Alternative selection: For tighter 1000mm bathroom dimensions, consider the compact walnut series MZS-333-10SW.

Confirm MZS-80SW for your market

Technical specifications

Engineering Data & Sourcing Specifications for MZS-80SW

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: MZS-80SW
Product type: Bathroom Vanity Cabinet
Dimensions: 1200 × 560 × 462 mm
Installation / Outlet: Three-function intelligent mirror
Finish / Color: Graphite grey / khaki grey
Product family: Bathroom Vanities
Flushing Technology: Standard 45 mm drain aperture with overflow
Trapway & Waste Path: Internal plumbing notch 120 mm width
Water Seal Depth: E0 multi-layer waterproof solid wood core
Container Loading (40HQ): ~145 sets / 40HQ container
OEM / Customization Scope: Stone pattern options, digital mirror feature set, client brand silk-screening

Bathroom vanity configuration checklist

What buyers should confirm for MZS-80SW

Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.

3-function digital mirror feed

Requires continuous 220V power supply to maintain clock display memory.

30-second graphene demister

High-efficiency graphene heating element clears steam condensation in ~30 seconds.

Heavy-duty wall suspension

Supplied with German-engineered heavy-duty adjustable steel wall hanger brackets.

Export transit packaging

Carton with protective honeycomb corners and foam padding; ~145 sets / 40HQ.

Category engineering

Bathroom Vanity Manufacturing Advantages

MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.

E0 antibacterial multilayer board

18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.

Fully sealed cabinet edges

High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.

Nine-stage painted finish

PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.

Tested soft-close hinges

Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.

Heavy-duty concealed runners

Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.

Clear smart-mirror system

High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.

Modular beauty storage

Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.

Multiple countertop systems

Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.

Project-level customisation

Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MZS-80SW against the current technical sheet and quotation.

Packaging & delivery

Packing checks for MZS-80SW

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Cabinet, basin and mirror protection
Hardware and accessory pack list
Brand labels and shipping marks
Room or model-based delivery sequence
