Elongated footprint verification
570 mm projection requires standard commercial stall depth of ≥1,200 mm.
Wall-Hung Toilets

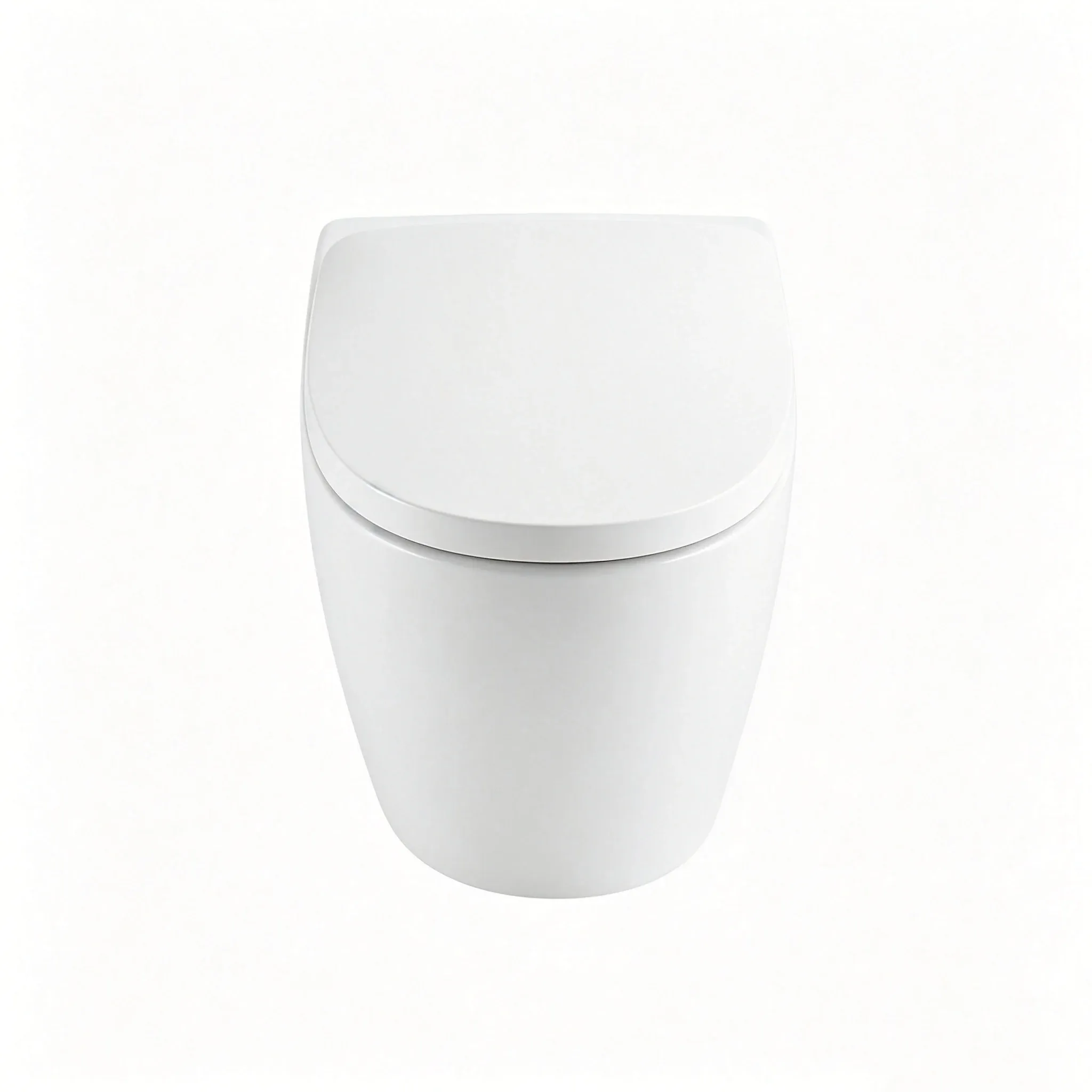

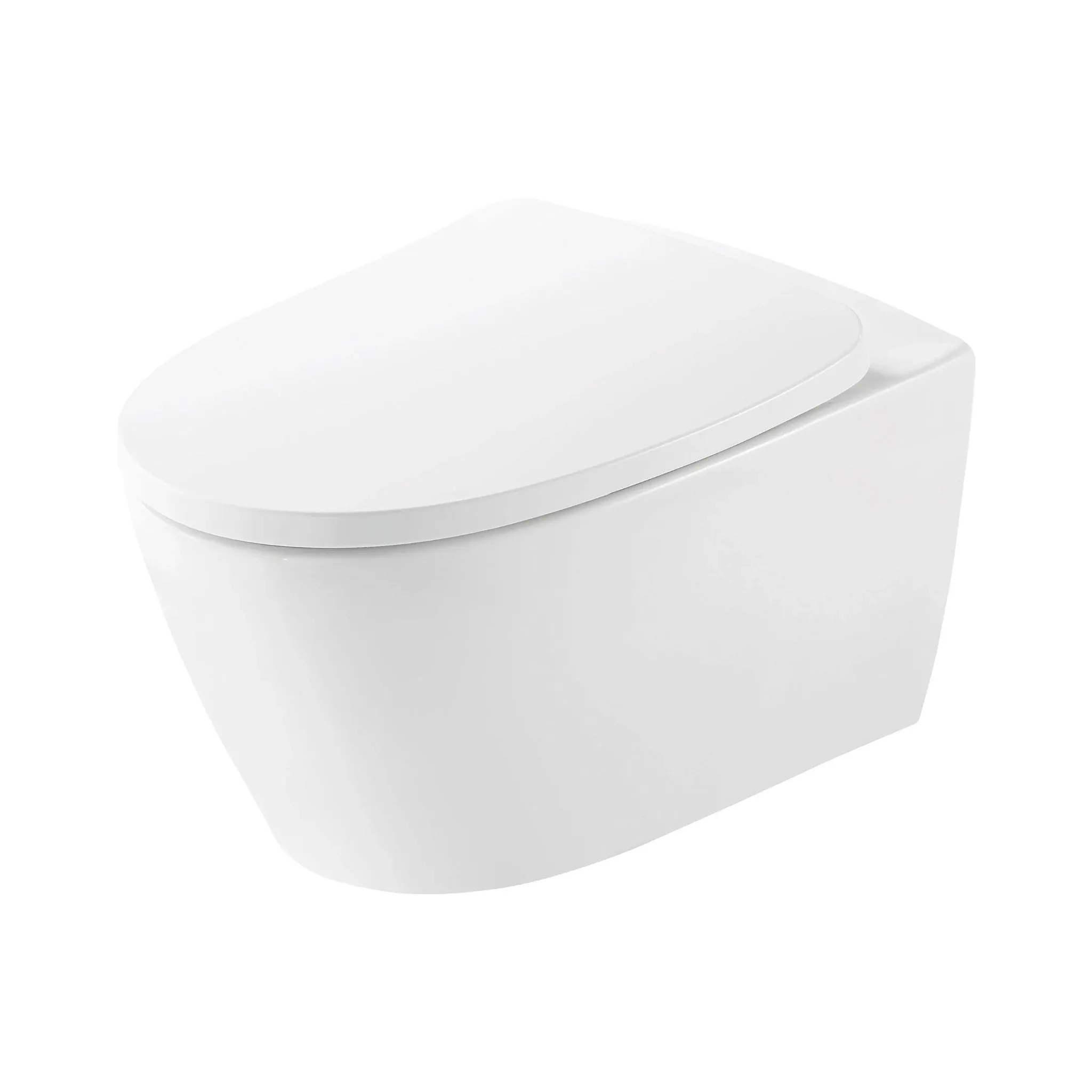

MB-2815H Wall-Hung Toilet
A 570mm elongated luxury wall-hung toilet engineered for premium hotel guestrooms and architectural residences requiring superior seating comfort and minimalist floor clearance.
- 570 × 385 × 355 mm elongated executive comfort contour
- Fully concealed blind-fixing system leaving seamless porcelain exterior walls
- Direct horizontal washdown evacuation compatible with concealed flush valves
- Quick-release slimline UF damping seat cover included
- Model
- MB-2815H
- Dimensions
- 570 × 385 × 355 mm
- Configuration
- Wall outlet installation
- Finish / color
- Crystal white
Model overview
MB-2815H 570mm Luxury Elongated Wall-Hung Toilet Specifications
A 570mm elongated luxury wall-hung toilet engineered for premium hotel guestrooms and architectural residences requiring superior seating comfort and minimalist floor clearance.
Preferred by international 4- and 5-star hotel chains and high-end residential towers specifying concealed carrier systems. If bathroom depth is constrained, specify compact 525mm MB-2813H.
B2B Project Fit & Sourcing Guidance
Confirm MB-2815H for your market Preferred by international 4- and 5-star hotel chains and high-end residential towers specifying concealed carrier systems.
Alternative selection: If bathroom depth is constrained, specify compact 525mm MB-2813H.
Technical specifications
Engineering Data & Sourcing Specifications for MB-2815H
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-2815H
- Product type
- Wall-Hung Toilet
- Dimensions
- 570 × 385 × 355 mm
- Installation / Outlet
- Wall outlet installation
- Finish / Color
- Crystal white
- Product family
- Wall-Hung Toilets
- Flushing Technology
- Rimless washdown flush (4.5L / 3.0L)
- Trapway & Waste Path
- 100 mm OD horizontal outlet
- Water Seal Depth
- 55 mm certified water seal
- Container Loading (40HQ)
- ~480 pcs / 40HQ container
- OEM / Customization Scope
- Silk-screen client logo, matte black/white glaze options on request, contract master carton
Wall-hung toilet project checklist
What buyers should confirm for MB-2815H
A wall-hung installation depends on the in-wall carrier, the wall build-up and the finished floor level.Concealed blind-fixing installation
Installs via underside fixing apertures for zero visible side bolts.
Concealed cistern compatibility
Engineered to match dual-flush in-wall cisterns operating at 4.5/3.0L.
High-density crate protection
Heavy-duty 5-ply export box with full foam edge encapsulation; ~480 units / 40HQ.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-2815H against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-2815H
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic bowl protection for wall-hung handling
- Seat and fixing pack list
- Model labels and shipping marks
- Coordination with the carrier frame delivery
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-2815H, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-2815H
Share your carrier frame type, wall construction, rough-in and outlet height, seat specification, target market and quantity. MICAWA will review the request against the current MB-2815H technical information and available supply configuration.Continue exploring
Compare wall-hung and floor-mounted toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-2815H
Use the current product sheet and approved quotation as the final reference for this model.What current information is available for MB-2815H?
Send the model number and target market to request the current dimensions, configuration, finish and technical documentation for MB-2815H.
Which options should be confirmed before quoting MB-2815H?
Confirm dimensions, installation, included components, finish, quantity and destination-market requirements.
Can OEM or ODM requirements be discussed for MB-2815H?
Share branding, finish, packaging and market requirements so their feasibility can be reviewed.
