Smart ecosystem protocol
Confirm Tuya / BLE app compatibility requirements with property automation package.
Smart Toilets

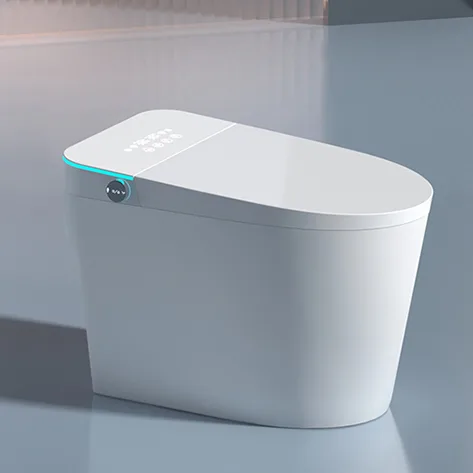

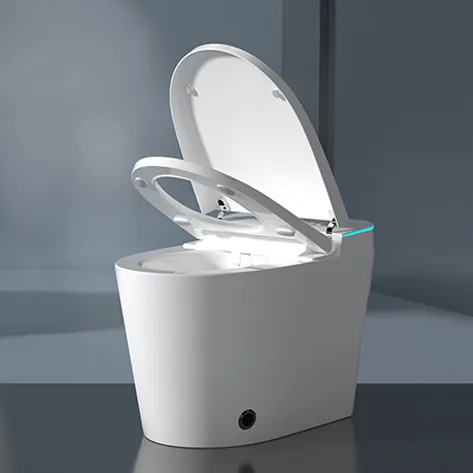

MB-1871AM Smart Toilet
A premium 1300W smart toilet featuring Tuya/Bluetooth smartphone app integration, mechanical foot-kick flush, and high-volume vortex siphonic evacuation.
- 680 × 420 × 500 mm contemporary compact profile
- Multi-modal control: Smartphone App + Wireless Remote + Side Rotary Knob
- 1300W high-output instant heating module with ±0.5°C temperature stability
- Antibacterial silver-ion nozzle with automatic UV self-cleansing cycle
- Model
- MB-1871AM
- Dimensions
- 680 × 420 × 500 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- CCC-certified smart toilet
Model overview
MB-1871AM IoT-Connected Smart Bidet Toilet Specifications
A premium 1300W smart toilet featuring Tuya/Bluetooth smartphone app integration, mechanical foot-kick flush, and high-volume vortex siphonic evacuation.
Engineered for high-tech commercial residences, smart boutique hotels, and luxury developer display homes. For projects with zero or unpredictable municipal water pressure, review tank-assisted MB-1876BJS.
B2B Project Fit & Sourcing Guidance
Confirm MB-1871AM for your market Engineered for high-tech commercial residences, smart boutique hotels, and luxury developer display homes.
Alternative selection: For projects with zero or unpredictable municipal water pressure, review tank-assisted MB-1876BJS.
Technical specifications
Engineering Data & Sourcing Specifications for MB-1871AM
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-1871AM
- Product type
- Smart Toilet
- Dimensions
- 680 × 420 × 500 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- CCC-certified smart toilet
- Product family
- Smart Toilets
- Flushing Technology
- Dynamic vortex siphon (5.0L flush volume)
- Trapway & Waste Path
- ≥50 mm fully glazed trapway
- Water Seal Depth
- 55 mm deep anti-odour water seal
- Container Loading (40HQ)
- ~210 pcs / 40HQ container
- OEM / Customization Scope
- Custom app OEM branding, wireless remote silk-screen printing, bespoke user guide documentation
Smart toilet approval checklist
What buyers should confirm for MB-1871AM
Align electrical, water-pressure, drainage and function requirements before approval.Peak electrical load planning
Circuit breaker capacity sized for 1300W peak draw during simultaneous wash & dry.
Floor rough-in interface
Configured for standard 300 mm or 400 mm floor waste collars.
Precision electronics packaging
Sealed anti-static moisture wrap and reinforced carton; ~210 units / 40HQ.
Category engineering
Smart Toilet Manufacturing Advantages
MICAWA smart toilets combine vitrified ceramic production with quiet flushing, low-energy operation, antibacterial contact surfaces and bathroom-ready electrical protection.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning ceramic glaze supports a smooth and hygienic bowl surface.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications and uses a passage diameter of at least 50 mm.
Controlled flushing volume
Full-flush water use is 4.5–5.0 L, with a 3.5 L half-flush configuration.
Quiet vortex flushing
3D super-vortex or third-generation quiet water-envelope flushing reduces operating noise to as low as 43.9 dB.
Discharge verification
Mixed-media discharge testing reaches 28 test pieces.
Low-energy temperature control
Energy use can be as low as 0.02 kWh, with temperature control accuracy within 1.5°C.
Antibacterial seat surface
The seat material achieves a 99.9% inhibition rate against E. coli and Staphylococcus aureus.
IPX4 bathroom protection
The complete unit is rated IPX4 and uses an ergonomic smart-control experience designed for a broad age range.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-1871AM against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-1871AM
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic and electronic component protection
- Accessories and remote-control pack list
- Manual, label and plug requirements
- Loading quantity after configuration approval
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-1871AM, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-1871AM
Share your voltage and plug standard, water pressure, rough-in, required functions, target market and quantity. MICAWA will review the request against the current MB-1871AM technical information and available supply configuration.Continue exploring
Compare smart and conventional toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-1871AM
Use the current product sheet and approved quotation as the final reference for this model.Which electrical standard applies to MB-1871AM?
Confirm voltage, frequency, plug type and destination-market requirements against the current MB-1871AM specification.
What water and drainage conditions are needed for MB-1871AM?
Provide water-pressure information, inlet position and rough-in so the installation configuration can be reviewed.
Which smart functions are included with MB-1871AM?
Request the current function list for washing, drying, seat heating, controls and flushing before quotation or sample approval.
