In-wall carrier frame pairing
Compatible with standard Geberit, Grohe, or equivalent 180mm/230mm fixing stud carriers.
Wall-Hung Toilets

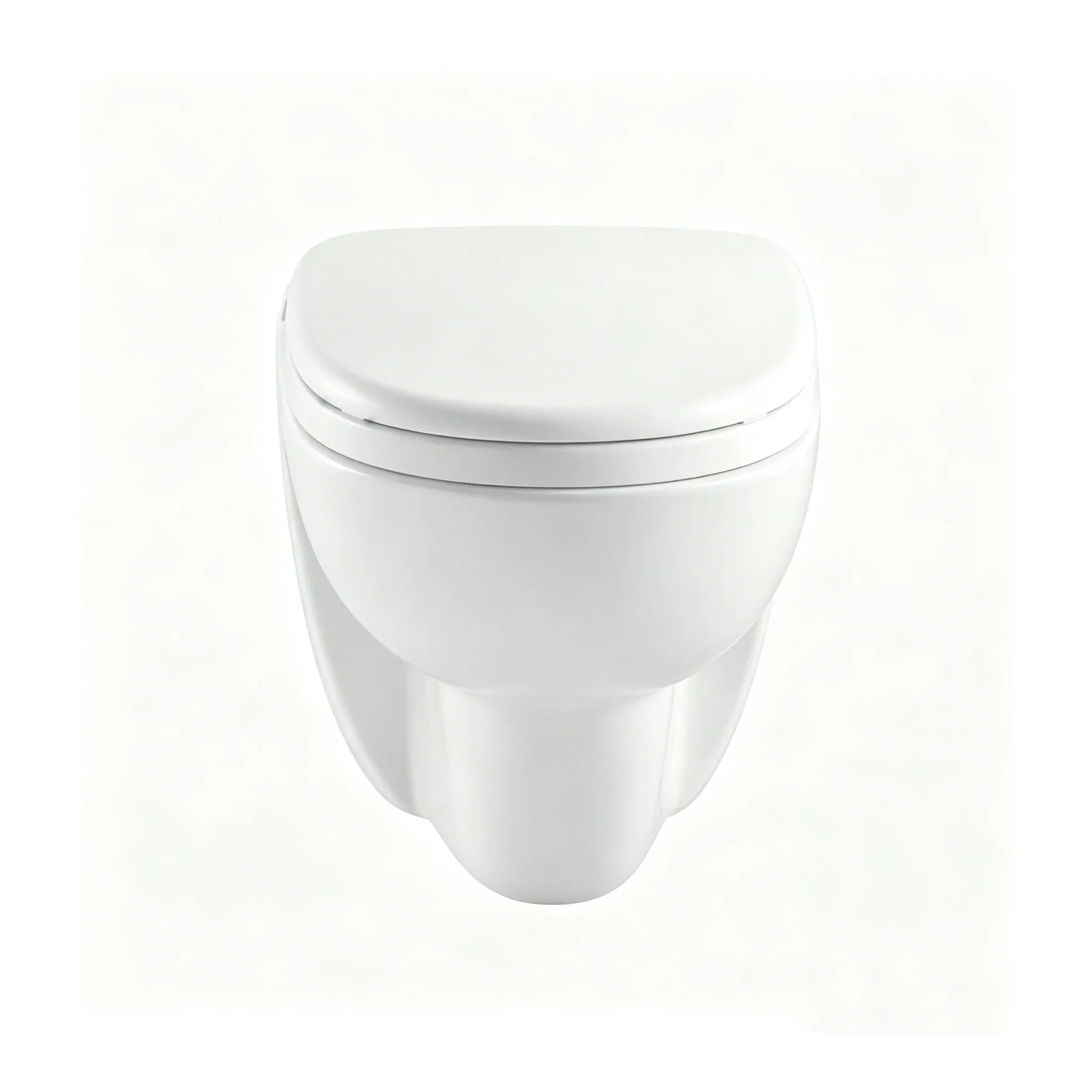

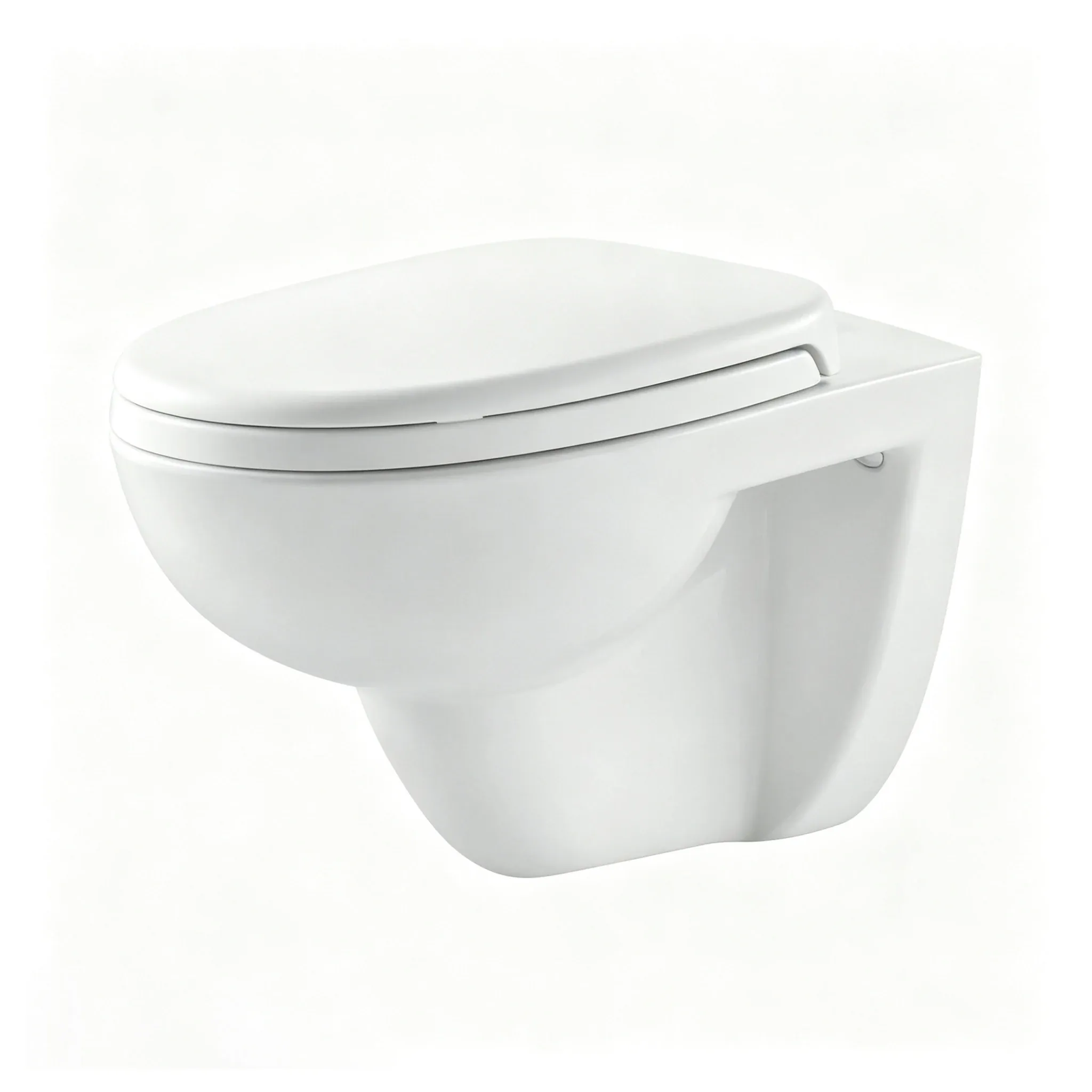

MB-2813H Wall-Hung Toilet
A 525mm compact-projection wall-hung ceramic toilet designed to pair with in-wall concealed carrier cisterns, creating a seamless, floating floor clearance for easy janitorial maintenance.
- 525 × 350 × 385 mm space-saving short projection
- Full floor clearance beneath bowl allowing 100% floor mop access
- Horizontal P-trap wall outlet with high-velocity washdown flush
- Vitreous ceramic body load-tested to exceed 400 kg static capacity
- Model
- MB-2813H
- Dimensions
- 525 × 350 × 385 mm
- Configuration
- Wall outlet installation
- Finish / color
- Crystal white
Model overview
MB-2813H 525mm Compact Wall-Hung Commercial Toilet Specifications
A 525mm compact-projection wall-hung ceramic toilet designed to pair with in-wall concealed carrier cisterns, creating a seamless, floating floor clearance for easy janitorial maintenance.
Engineered for commercial offices, modern healthcare facilities, and minimalist hotel bathrooms with in-wall plumbing systems. For executive bathrooms desiring an extended, elongated bowl stance, select MB-2815H (570mm projection).
B2B Project Fit & Sourcing Guidance
Confirm MB-2813H for your market Engineered for commercial offices, modern healthcare facilities, and minimalist hotel bathrooms with in-wall plumbing systems.
Alternative selection: For executive bathrooms desiring an extended, elongated bowl stance, select MB-2815H (570mm projection).
Technical specifications
Engineering Data & Sourcing Specifications for MB-2813H
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-2813H
- Product type
- Wall-Hung Toilet
- Dimensions
- 525 × 350 × 385 mm
- Installation / Outlet
- Wall outlet installation
- Finish / Color
- Crystal white
- Product family
- Wall-Hung Toilets
- Flushing Technology
- Direct washdown rimless flush (4.5L / 3.0L)
- Trapway & Waste Path
- 100 mm OD horizontal waste spigot
- Water Seal Depth
- 50 mm deep water trap
- Container Loading (40HQ)
- ~550 pcs / 40HQ container
- OEM / Customization Scope
- Concealed fixing system included, laser-etched OEM branding, private contract packaging
Wall-hung toilet project checklist
What buyers should confirm for MB-2813H
A wall-hung installation depends on the in-wall carrier, the wall build-up and the finished floor level.Wall structure load capacity
Requires structurally sound stud or solid masonry wall to anchor carrier frame.
Acoustic wall isolation
Supplied with optional high-density acoustic insulation mat between ceramic and wall tiles.
Compact shipping volume
Wall-hung bowl geometry yields approx. 550 units per 40HQ container.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-2813H against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-2813H
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic bowl protection for wall-hung handling
- Seat and fixing pack list
- Model labels and shipping marks
- Coordination with the carrier frame delivery
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-2813H, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-2813H
Share your carrier frame type, wall construction, rough-in and outlet height, seat specification, target market and quantity. MICAWA will review the request against the current MB-2813H technical information and available supply configuration.Continue exploring
Compare wall-hung and floor-mounted toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-2813H
Use the current product sheet and approved quotation as the final reference for this model.What current information is available for MB-2813H?
Send the model number and target market to request the current dimensions, configuration, finish and technical documentation for MB-2813H.
Which options should be confirmed before quoting MB-2813H?
Confirm dimensions, installation, included components, finish, quantity and destination-market requirements.
Can OEM or ODM requirements be discussed for MB-2813H?
Share branding, finish, packaging and market requirements so their feasibility can be reviewed.
