Aisle clearance verification
480 mm depth leaves ample walking corridor clearance in narrow cloakrooms.
Pedestal Basins

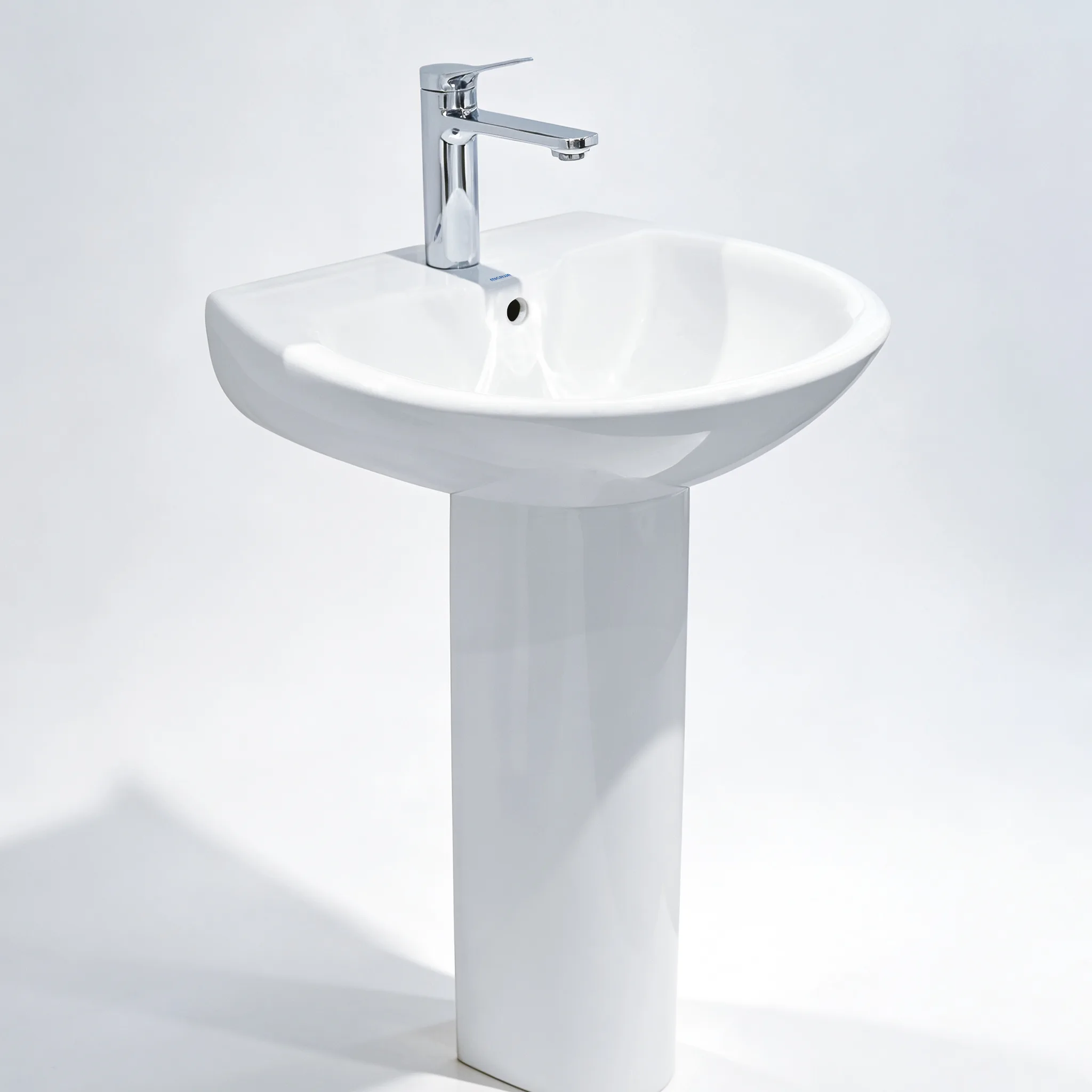

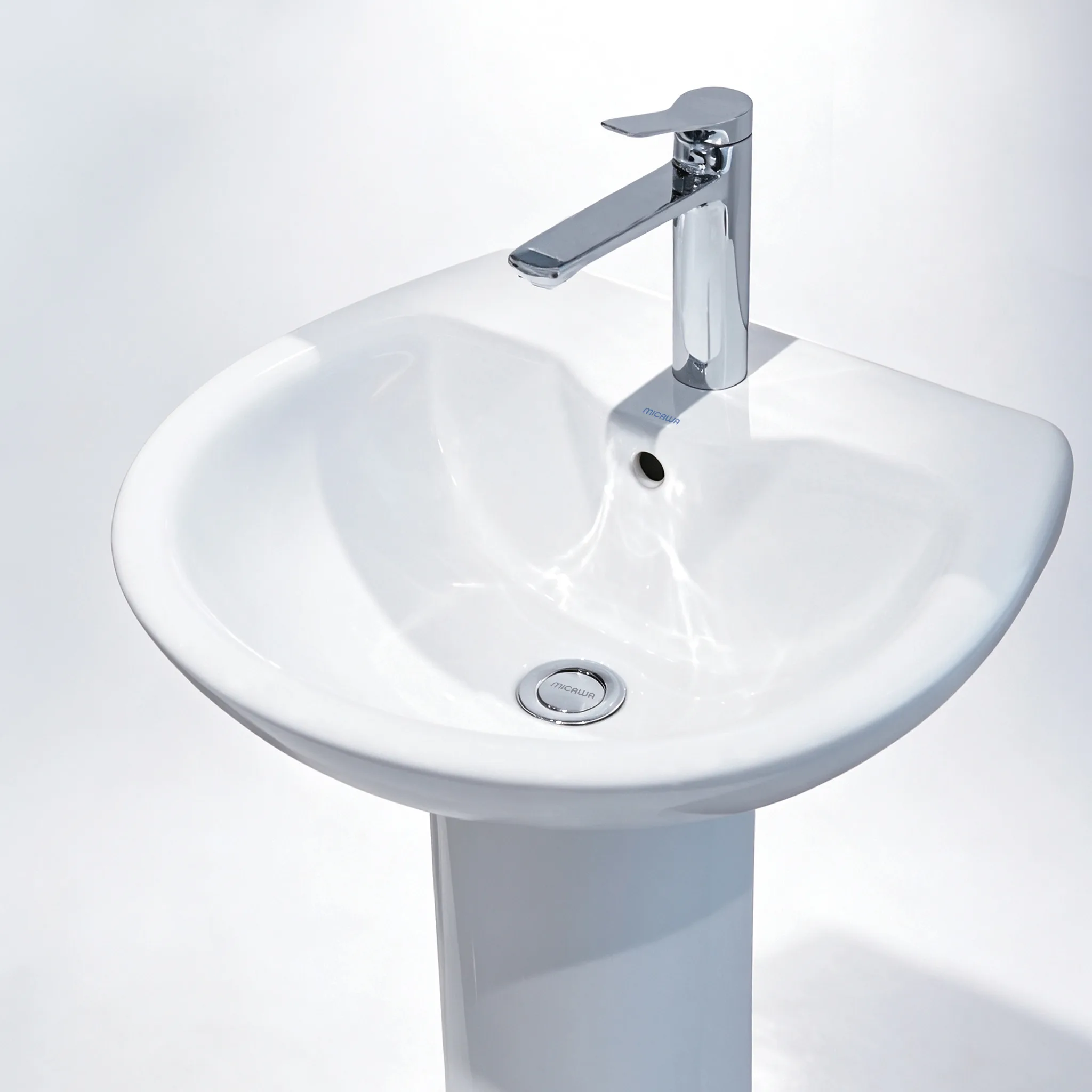

MP-3808 Ceramic Pedestal Basin
A space-conscious 495mm pedestal basin engineered for secondary guest bathrooms, narrow powder rooms, and residential development packages requiring a compact footprint.
- 495 × 480 × 800 mm space-saving compact footprint
- Slender floor pedestal column maintaining generous room circulation
- Centred single tap hole with integrated splash rim and overflow
- Scratch-resistant easy-clean microcrystalline white glaze
- Model
- MP-3808
- Dimensions
- 495 × 480 × 800 mm
- Configuration
- Pedestal basin · faucet not included
- Finish / color
- Crystal white
Model overview
MP-3808 495mm Compact Floor-Mounted Pedestal Basin Specifications
A space-conscious 495mm pedestal basin engineered for secondary guest bathrooms, narrow powder rooms, and residential development packages requiring a compact footprint.
Ideal for student accommodation, secondary bathrooms in suburban homes, and compact hospitality powder rooms. If wall-hung installation without a floor column is preferred, review MP-4862.
B2B Project Fit & Sourcing Guidance
Confirm MP-3808 for your market Ideal for student accommodation, secondary bathrooms in suburban homes, and compact hospitality powder rooms.
Alternative selection: If wall-hung installation without a floor column is preferred, review MP-4862.
Technical specifications
Engineering Data & Sourcing Specifications for MP-3808
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MP-3808
- Product type
- Ceramic Pedestal Basin
- Dimensions
- 495 × 480 × 800 mm
- Installation / Outlet
- Pedestal basin · faucet not included
- Finish / Color
- Crystal white
- Product family
- Pedestal Basins
- Flushing Technology
- Gravity drainage with standard overflow slot
- Trapway & Waste Path
- Pedestal rear opening 140 mm for plumbing access
- Water Seal Depth
- Standard G 1-1/4" drain interface
- Container Loading (40HQ)
- ~360 sets / 40HQ container
- OEM / Customization Scope
- Customer brand stamping, barcode master cartons, contract palletization
Pedestal basin coordination checklist
What buyers should confirm for MP-3808
Check the basin and pedestal as an installation set against the room plan and plumbing interfaces.Pedestal floor levelling
Verify level subfloor condition prior to final silicone perimeter sealing.
P-trap vs S-trap alignment
Supports both through-wall P-trap and through-floor S-trap waste routes.
High density shipping
Nested carton packaging allows approx. 360 sets per 40HQ container.
Category engineering
Ceramic Basin Manufacturing Advantages
MICAWA ceramic basins use high-pressure casting, high-temperature vitrification and controlled glazing and dimensional inspection to support coordinated vanity and project installation.High-pressure casting
Basin bodies are high-pressure cast and fired at 1,280°C for 18 hours for full ceramic vitrification.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with a total glaze thickness of 0.5–1.0 mm and water absorption of no more than 0.2%.
Thermal-cycle resistance
Alternating hot-and-cold cycle tests show no cracking, supporting use in changing bathroom temperatures.
Complete basin range
The product line covers countertop, semi-recessed, undermount, wall-hung, pedestal and integrated basin formats.
Practical bowl depth
Bowl depths across the range extend from 140 to 210 mm.
Controlled installation details
Overflow holes are standard within applicable configurations, and dimensional tolerance is tightly controlled to ±1.5 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MP-3808 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MP-3808
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Separate basin and pedestal protection
- Fitting and accessory pack list
- Model labels and shipping marks
- Loading quantity after carton confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MP-3808, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MP-3808
Share your required dimensions, faucet-hole arrangement, waste and overflow requirements, target market and quantity. MICAWA will review the request against the current MP-3808 technical information and available supply configuration.Continue exploring
Compare basin formats for the same bathroom program
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Ceramic Basins FAQ
Questions to confirm for MP-3808
Use the current product sheet and approved quotation as the final reference for this model.How should the pedestal and basin be coordinated for MP-3808?
Confirm the current overall dimensions, wall position, floor condition and fixing requirements for the complete MP-3808 set.
Which faucet and waste details are needed for MP-3808?
Provide the faucet-hole arrangement, waste size, overflow requirement and any fitting expectations.
What should I send for a MP-3808 basin quotation?
Send required quantity, target market, installation drawing, faucet configuration and waste or overflow requirements.
