Which cabinet dimensions and installation details apply to MQF-4726-8HW?

Request the current MQF-4726-8HW drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.

How should the basin and countertop be specified for MQF-4726-8HW?

Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.

Which finish, hardware and branding options can be reviewed for MQF-4726-8HW?

Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.

Bathroom Vanities

MQF-4726-8HW Bathroom Vanity Cabinet

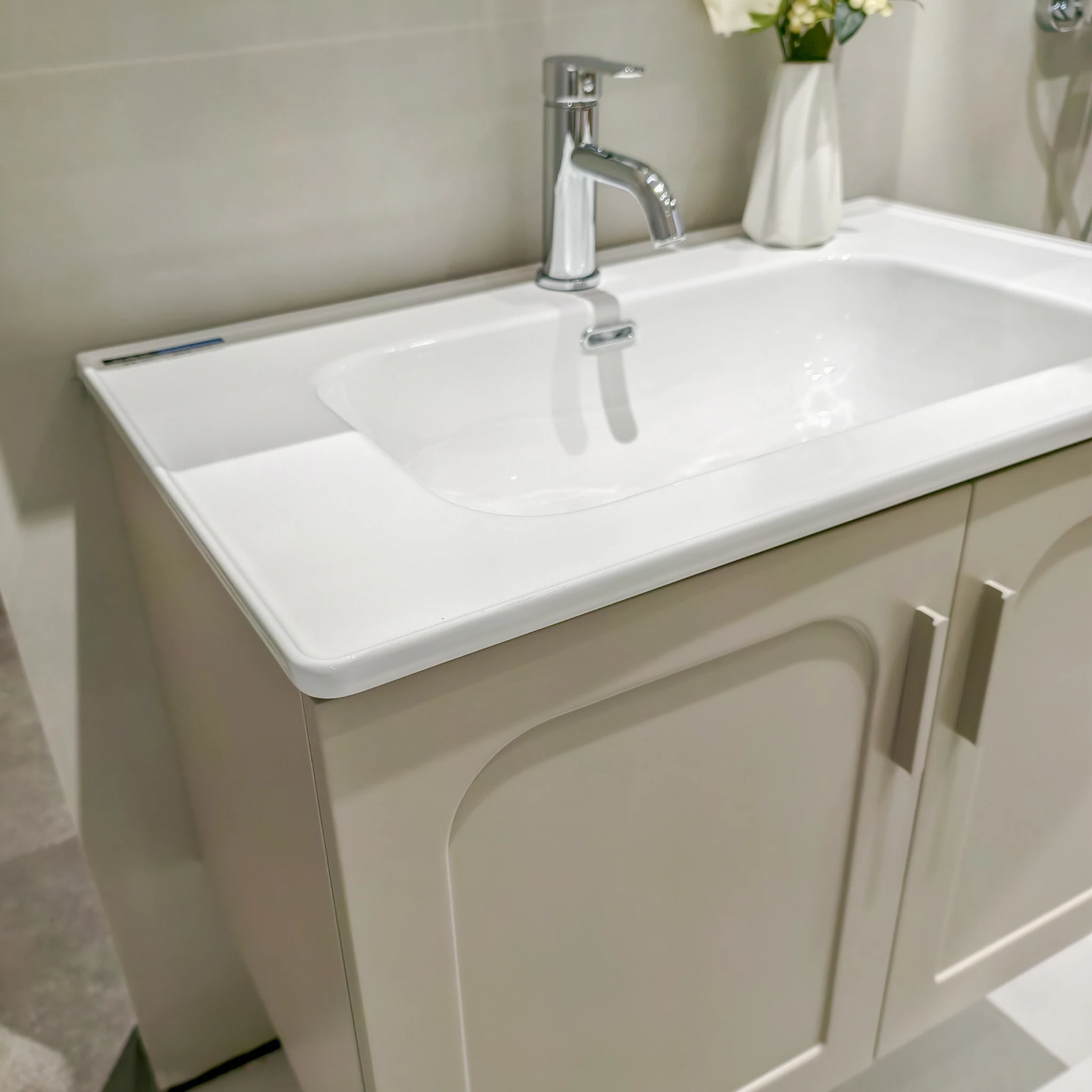

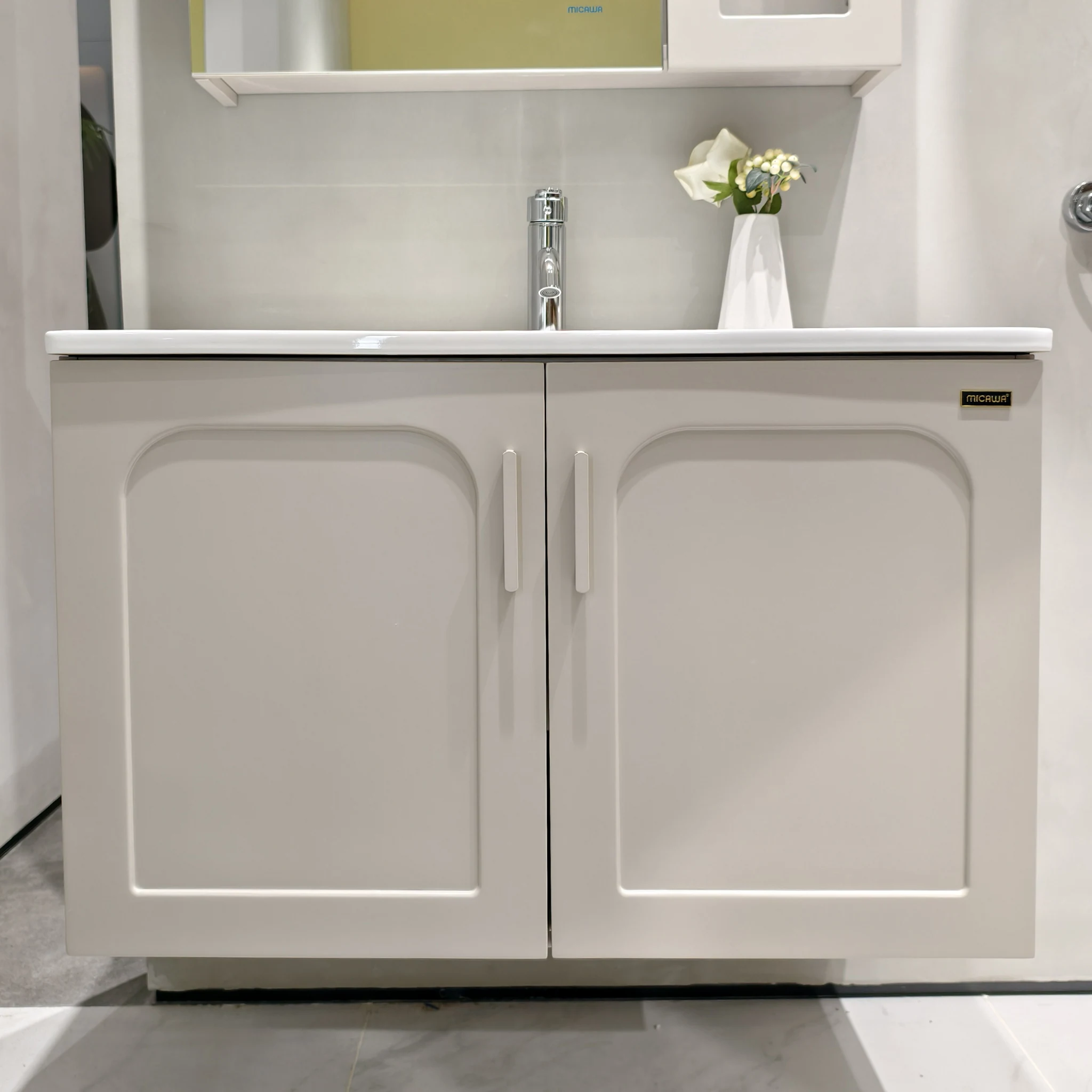

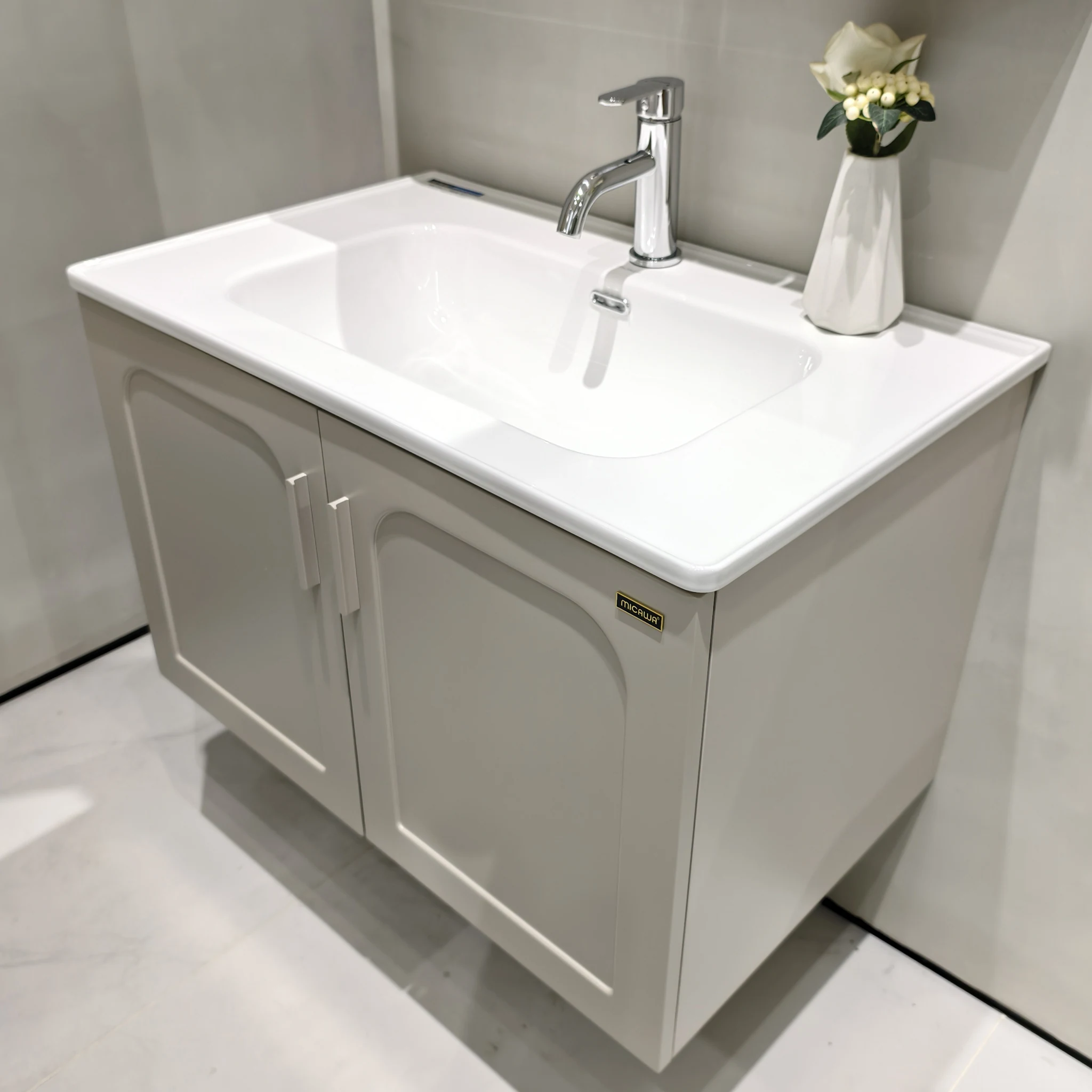

The MQF-4726-8HW includes an 800 × 500 × 505 mm main cabinet, a 750 × 725 × 162 mm smart mirror cabinet and an MP-4726-8 ceramic basin. Materials include multi-layer solid wood ecological board, ZR-598 light beige-grey ecological board and beige-grey painted door panels. Confirm mirror orientation, basin fit and electrical requirements against the installation drawing before ordering.

800 × 500 × 505 mm main cabinet
750 × 725 × 162 mm smart mirror cabinet
MP-4726-8 ceramic basin
ZR-598 light beige-grey ecological board with beige-grey painted door panels

Model: MQF-4726-8HW
Dimensions: 800 × 500 × 505 mm main cabinet
Configuration: Smart mirror cabinet · MP-4726-8 ceramic basin
Finish / color: ZR-598 light beige-grey board / beige-grey painted doors

Request MQF-4726-8HW Information

Model overview

MQF-4726-8HW Cabinet, Mirror and Ceramic Basin Specifications

Consider this model for a beige-grey cabinet brief with a ceramic basin and coordinated mirror cabinet. Compare MXD-4725-8HW for an oak-pattern finish and gesture-sensing mirror side lights.

B2B Project Fit & Sourcing Guidance

Consider this model for a beige-grey cabinet brief with a ceramic basin and coordinated mirror cabinet.

Alternative selection: Compare MXD-4725-8HW for an oak-pattern finish and gesture-sensing mirror side lights.

Confirm MQF-4726-8HW for your market

Technical specifications

Engineering Data & Sourcing Specifications for MQF-4726-8HW

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: MQF-4726-8HW
Product type: Bathroom Vanity Cabinet
Dimensions: 800 × 500 × 505 mm main cabinet
Installation / Outlet: Smart mirror cabinet · MP-4726-8 ceramic basin
Finish / Color: ZR-598 light beige-grey board / beige-grey painted doors
Product family: Bathroom Vanities

Bathroom vanity configuration checklist

What buyers should confirm for MQF-4726-8HW

Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.

Main cabinet

800 × 500 × 505 mm; confirm mounting, door movement and plumbing clearances.

Mirror dimensions

Mirror cabinet dimensions: 750 × 725 × 162 mm. Confirm width, height and depth orientation against the installation drawing.

Basin and mirror functions

MP-4726-8 ceramic basin with a smart mirror cabinet. Request the basin drawing and confirm mirror functions and power requirements before ordering.

Board and door finish

Multi-layer solid wood ecological board, ZR-598 light beige-grey board and beige-grey painted door panels; approve finish samples.

Category engineering

Bathroom Vanity Manufacturing Advantages

MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.

E0 antibacterial multilayer board

18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.

Fully sealed cabinet edges

High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.

Nine-stage painted finish

PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.

Tested soft-close hinges

Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.

Heavy-duty concealed runners

Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.

Clear smart-mirror system

High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.

Modular beauty storage

Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.

Multiple countertop systems

Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.

Project-level customisation

Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MQF-4726-8HW against the current technical sheet and quotation.

Packaging & delivery

Packing checks for MQF-4726-8HW

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Cabinet, basin and mirror protection
Hardware and accessory pack list
Brand labels and shipping marks
Room or model-based delivery sequence

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model MQF-4726-8HW, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for MQF-4726-8HW

Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MQF-4726-8HW technical information and available supply configuration.
