Cabinet cutout template
Supplied with precision 1:1 cutting template for countertop and front fascia notch.
Wash Basins

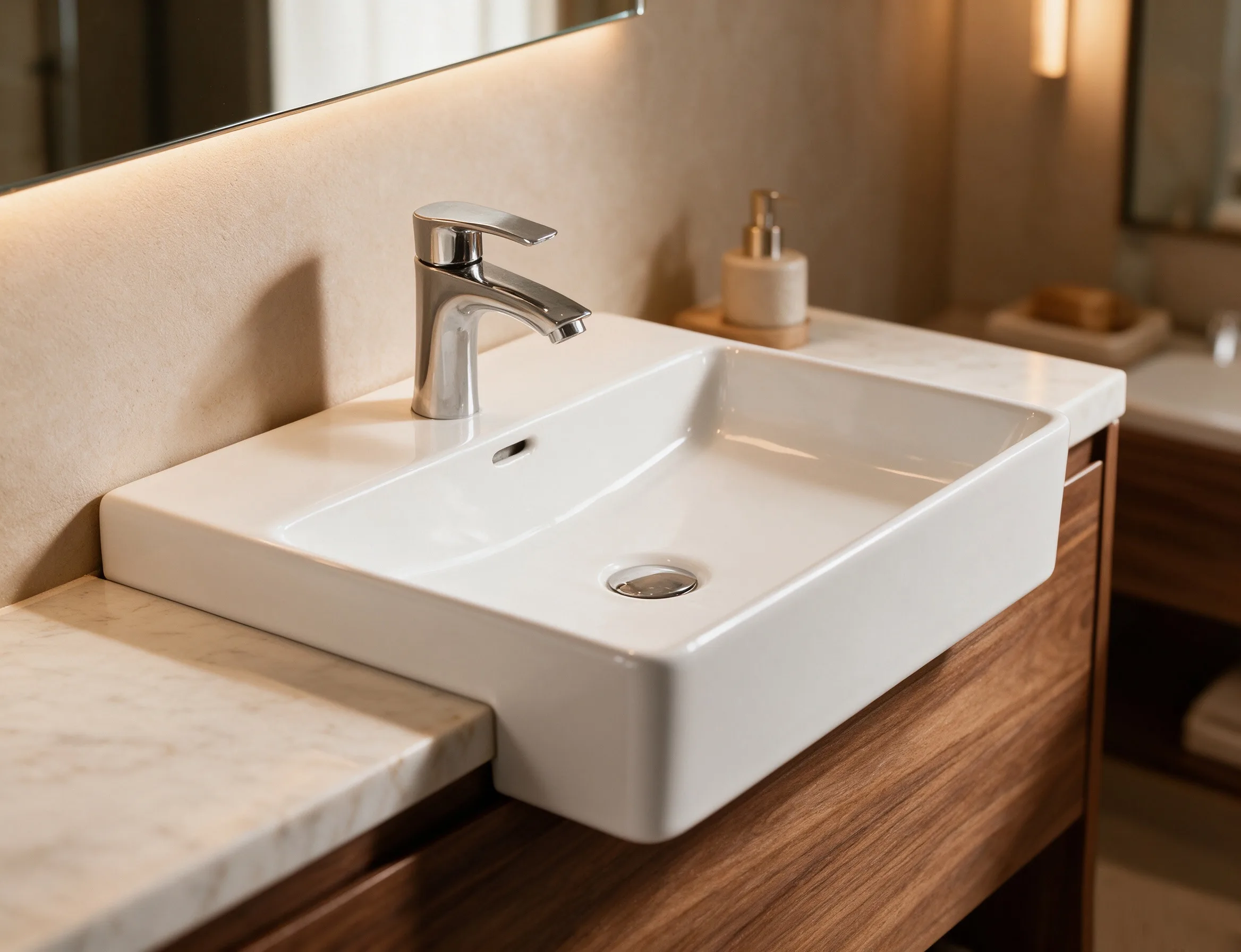

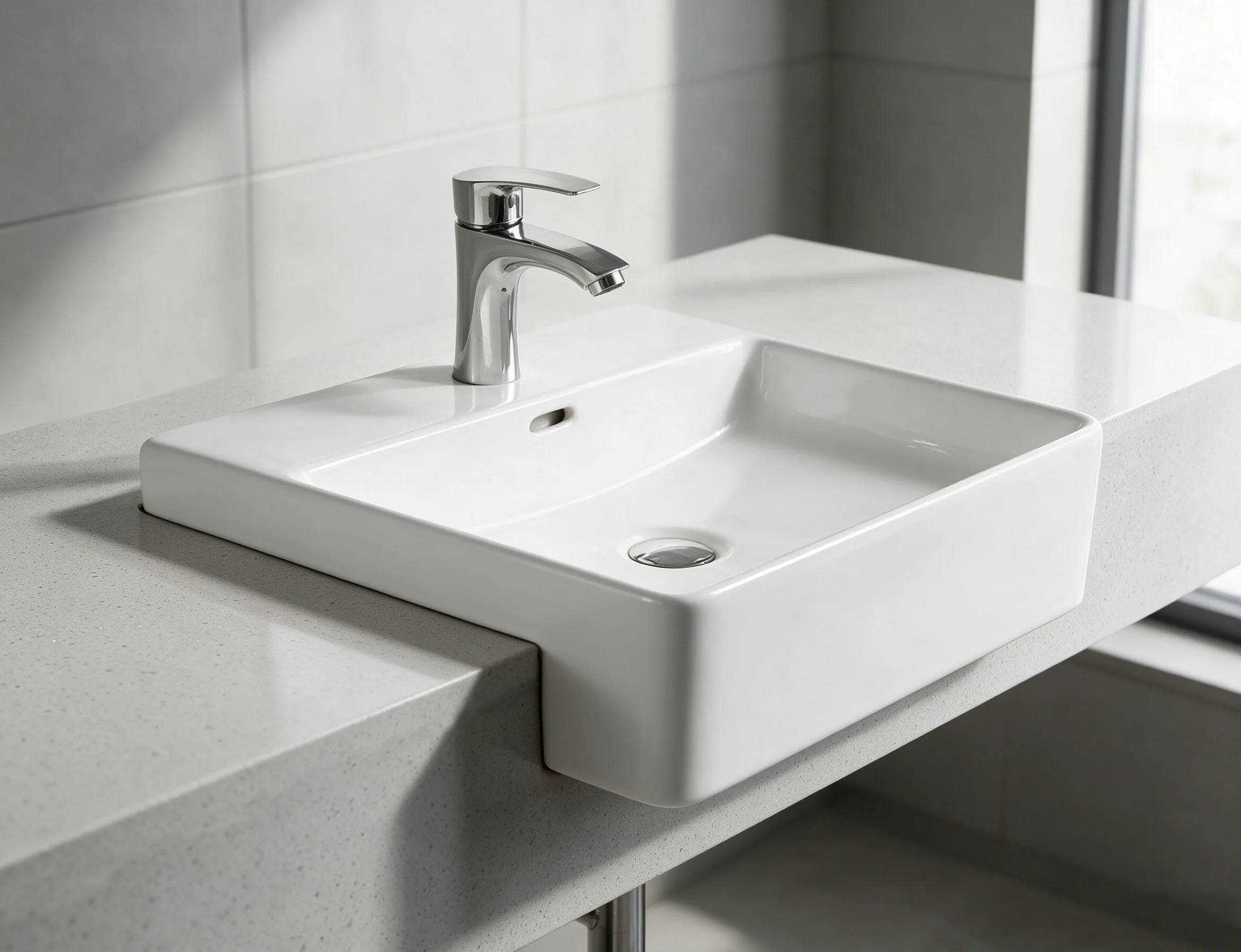

MP-4875 Semi-Recessed Basin
A 505mm semi-recessed ceramic wash basin engineered to overhang narrow vanity counters, enabling full-depth hand washing in compact bathrooms while keeping cabinet depth to only 300–350mm.
- 505 × 425 × 125 mm semi-recessed overhang architecture
- Overhanging bowl allows ultra-slim 320–350 mm vanity cabinet depth
- Integrated rear faucet deck keeping water drips within the ceramic perimeter
- Seamless glazed transition over front cabinet fascia edge
- Model
- MP-4875
- Dimensions
- 505 × 425 × 125 mm
- Configuration
- Faucet and waste not included
- Finish / color
- Crystal white
Model overview
MP-4875 505mm Semi-Recessed Overhang Basin Specifications
A 505mm semi-recessed ceramic wash basin engineered to overhang narrow vanity counters, enabling full-depth hand washing in compact bathrooms while keeping cabinet depth to only 300–350mm.
Engineered for hotel corridor bathrooms, compact apartment ensuites, and narrow modular vanity joinery. For standard undermount installation beneath stone cutouts, choose MP-4717.
B2B Project Fit & Sourcing Guidance
Confirm MP-4875 for your market Engineered for hotel corridor bathrooms, compact apartment ensuites, and narrow modular vanity joinery.
Alternative selection: For standard undermount installation beneath stone cutouts, choose MP-4717.
Technical specifications
Engineering Data & Sourcing Specifications for MP-4875
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MP-4875
- Product type
- Semi-Recessed Basin
- Dimensions
- 505 × 425 × 125 mm
- Installation / Outlet
- Faucet and waste not included
- Finish / Color
- Crystal white
- Product family
- Wash Basins
- Flushing Technology
- Gravity drainage with rear tap deck and overflow
- Trapway & Waste Path
- Standard 45 mm drain aperture
- Water Seal Depth
- 125 mm basin elevation / 160 mm total bowl depth
- Container Loading (40HQ)
- ~720 pcs / 40HQ container
- OEM / Customization Scope
- 1 or 3 faucet hole configurations, private label brand printing, developer pallet packing
Countertop basin coordination checklist
What buyers should confirm for MP-4875
Coordinate the model with its supporting surface and plumbing interfaces at drawing level.Standard basin faucet pairing
Deck-mounted standard basin mixer installs directly into basin faucet hole.
Silicone sealing perimeter
Ensure continuous waterproof silicone bead along underside overhang lip.
Export carton yield
Packed in molded protective cradles; ~720 units per 40HQ container.
Category engineering
Ceramic Basin Manufacturing Advantages
MICAWA ceramic basins use high-pressure casting, high-temperature vitrification and controlled glazing and dimensional inspection to support coordinated vanity and project installation.High-pressure casting
Basin bodies are high-pressure cast and fired at 1,280°C for 18 hours for full ceramic vitrification.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with a total glaze thickness of 0.5–1.0 mm and water absorption of no more than 0.2%.
Thermal-cycle resistance
Alternating hot-and-cold cycle tests show no cracking, supporting use in changing bathroom temperatures.
Complete basin range
The product line covers countertop, semi-recessed, undermount, wall-hung, pedestal and integrated basin formats.
Practical bowl depth
Bowl depths across the range extend from 140 to 210 mm.
Controlled installation details
Overflow holes are standard within applicable configurations, and dimensional tolerance is tightly controlled to ±1.5 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MP-4875 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MP-4875
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Glazed-surface and rim protection
- Waste and accessory pack list
- Model labels and shipping marks
- Loading quantity after carton confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MP-4875, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MP-4875
Share your installation method, countertop or vanity drawing, faucet position, waste and overflow requirements, quantity and market. MICAWA will review the request against the current MP-4875 technical information and available supply configuration.Continue exploring
Compare countertop, wall-hung and undermount basins
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Ceramic Basins FAQ
Questions to confirm for MP-4875
Use the current product sheet and approved quotation as the final reference for this model.What countertop information is needed for MP-4875?
Provide the supporting-surface or vanity drawing, available space and the intended installation method for MP-4875.
How should the faucet be positioned with MP-4875?
Confirm whether the faucet is basin-, deck- or wall-mounted and check spout height and reach against the current basin drawing.
Which waste and overflow details apply to MP-4875?
Request the current specification and confirm the waste connection, overflow requirement and included accessories.
