Turnkey development pricing
Engineered to maximize spec compliance while keeping bulk FOB unit costs highly competitive.
One-Piece Toilets

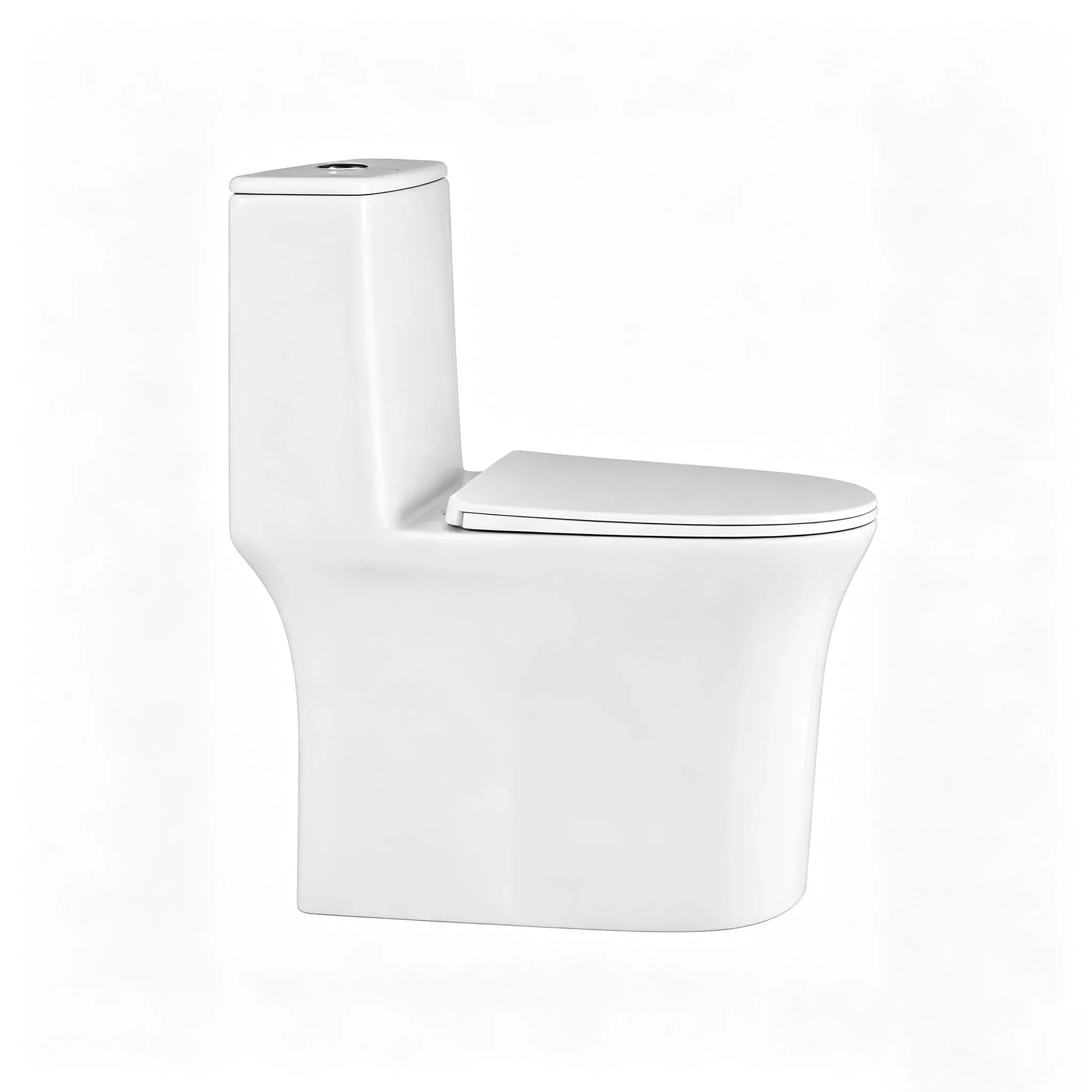

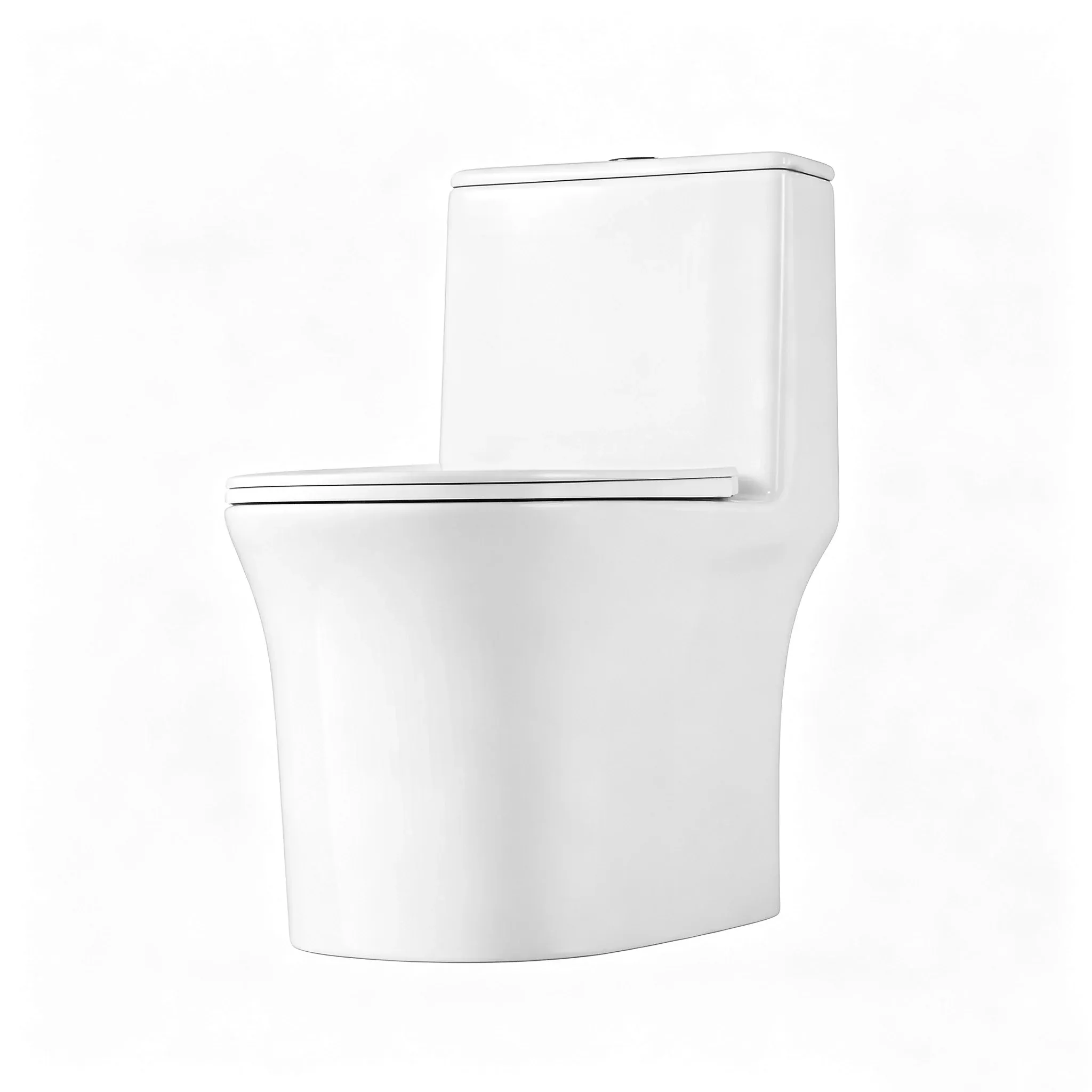

MB-1907 One-Piece Toilet
A space-conscious 680mm one-piece toilet designed with a gently tapered tank profile, offering residential property developers an attractive cost-to-spec ratio for volume developments.
- 680 × 380 × 740 mm gently tapered ceramic profile
- Proven siphonic flushing system compatible with variable municipal water pressures
- Triple-glazed 50mm trapway to prevent bulk toilet paper blockages
- Container-optimized carton packaging for high-density 40HQ export loading
- Model
- MB-1907
- Dimensions
- 680 × 380 × 740 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-1907 680mm Streamlined Real-Estate Development Toilet
A space-conscious 680mm one-piece toilet designed with a gently tapered tank profile, offering residential property developers an attractive cost-to-spec ratio for volume developments.
Suitable for mid-scale residential master-planned communities and developer turnkey packages requiring an optimized cost-to-performance ratio. For projects requiring rimless cyclonic bowl cleaning, consider upgrading to MB-1920.
B2B Project Fit & Sourcing Guidance
Confirm MB-1907 for your market Suitable for mid-scale residential master-planned communities and developer turnkey packages requiring an optimized cost-to-performance ratio.
Alternative selection: For projects requiring rimless cyclonic bowl cleaning, consider upgrading to MB-1920.
Technical specifications
Engineering Data & Sourcing Specifications for MB-1907
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-1907
- Product type
- One-Piece Toilet
- Dimensions
- 680 × 380 × 740 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- Crystal white
- Product family
- One-Piece Toilets
- Flushing Technology
- Dual siphonic flush (4.8L / 3.2L)
- Trapway & Waste Path
- ≥50 mm fully glazed trapway
- Water Seal Depth
- 52 mm water seal depth
- Container Loading (40HQ)
- ~300 pcs / 40HQ container
- OEM / Customization Scope
- Property group carton artwork, customized flush actuator badging, contract palletization
Toilet specification checklist
What buyers should confirm for MB-1907
Check the drainage condition and destination-market requirements before sample approval.Municipal water pressure tolerance
Siphonic geometry operates reliably across variable building feed pressures (0.15 - 0.6 MPa).
Triple-glazed trapway integrity
Passes standard 200-ball and bulk media evacuation tests for zero-blockage handover.
Palletized container load
Accommodates approx. 300 units per 40HQ container with reinforced corner buffers.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-1907 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-1907
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic protection and carton method
- Seat and fitting pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-1907, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-1907
Share your rough-in or outlet position, required flush configuration, target market, quantity and delivery destination. MICAWA will review the request against the current MB-1907 technical information and available supply configuration.Continue exploring
Compare one-piece and smart toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-1907
Use the current product sheet and approved quotation as the final reference for this model.Which rough-in and outlet details should I confirm for MB-1907?
Confirm whether MB-1907 will connect to a floor or wall outlet, the required rough-in distance and the applicable project drainage drawing.
Which flush and seat configuration applies to MB-1907?
Request the current MB-1907 technical sheet to confirm its flushing configuration, seat, included fittings and any available options.
What should I send for a MB-1907 toilet quotation?
Send the target market, rough-in or outlet position, expected quantity, required documentation and delivery destination.
