Walkway clearance verification
Verify that 670 mm overall depth satisfies open corridor and vanity door-swing guidelines.
One-Piece Toilets

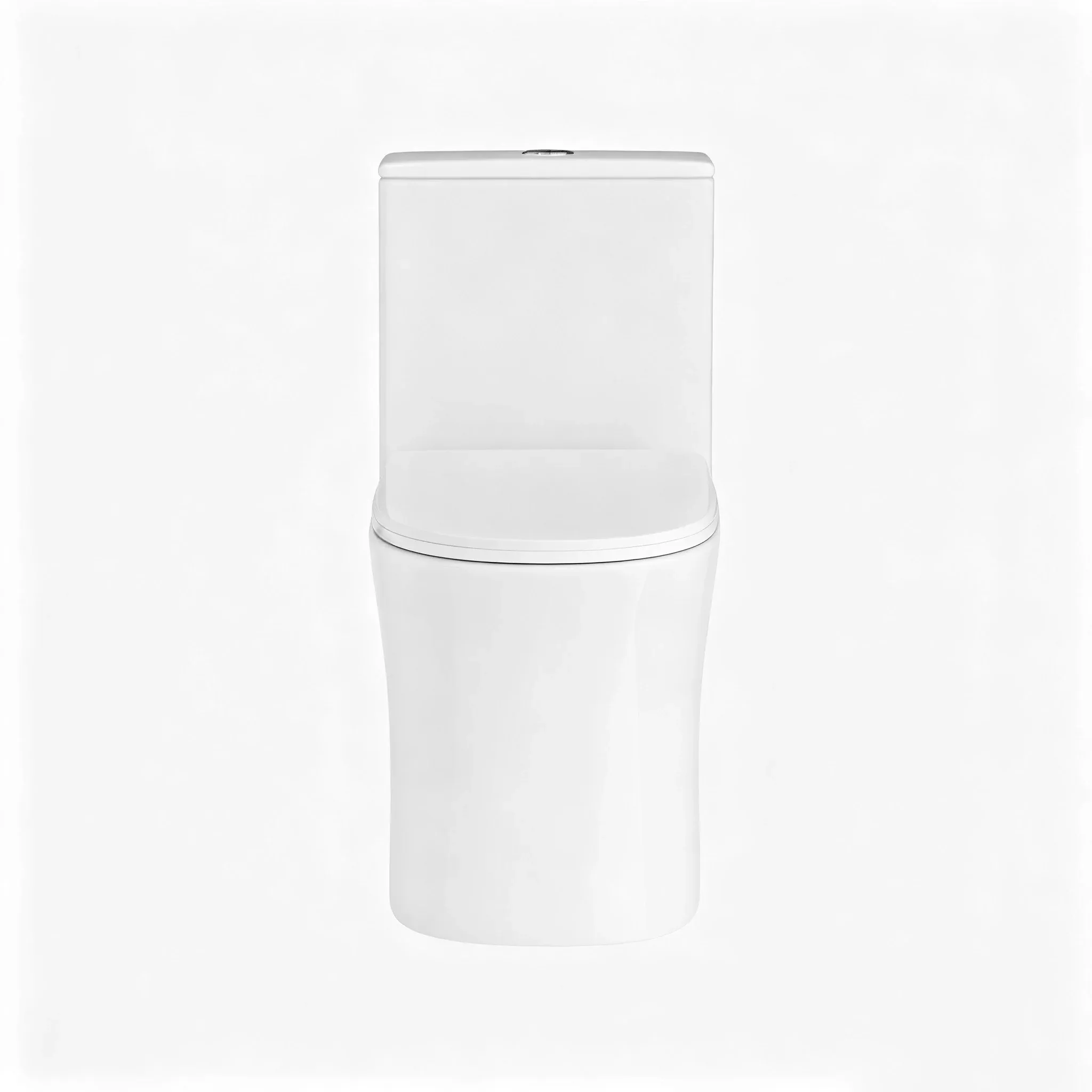

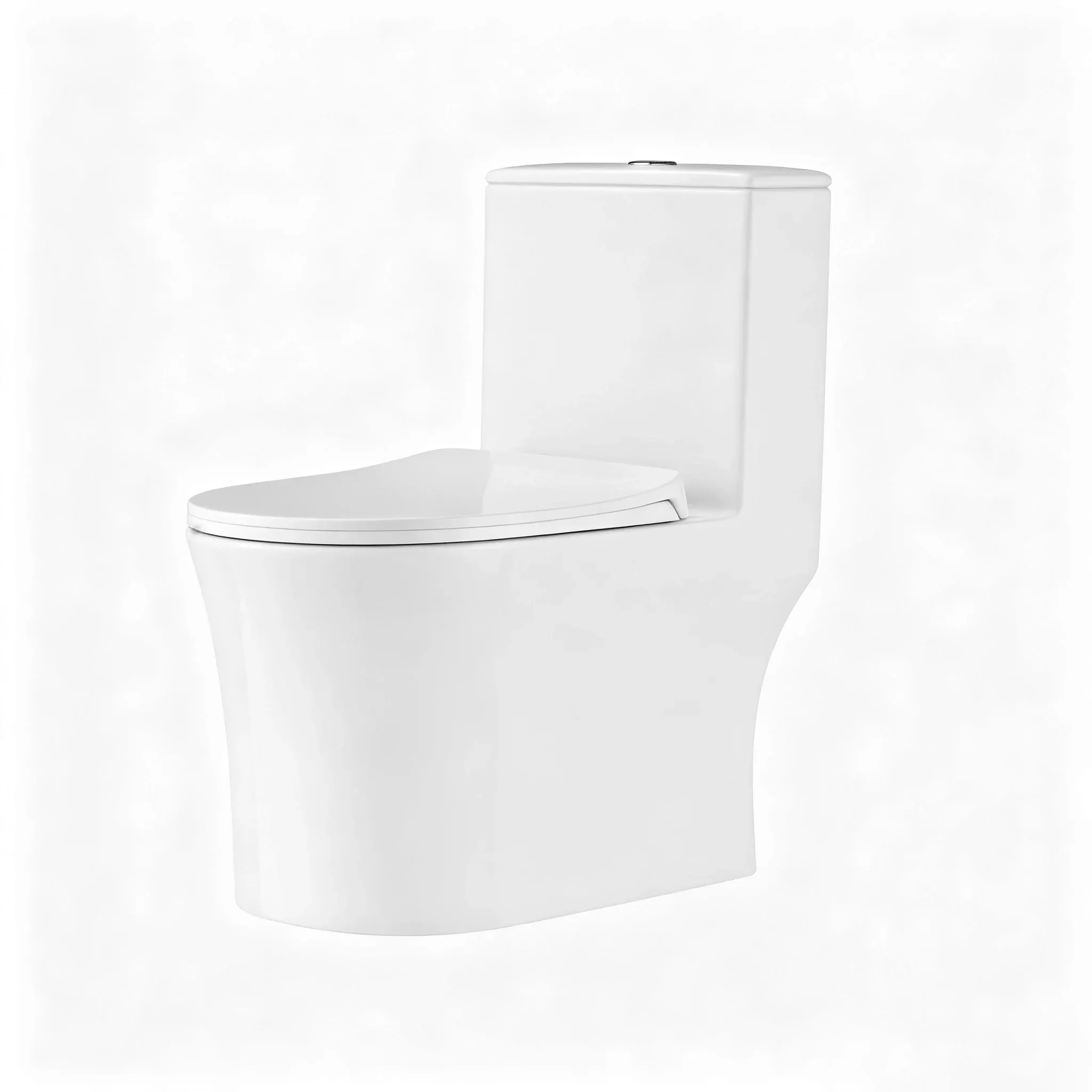

MB-1906 One-Piece Toilet
An ultra-compact 670mm depth one-piece toilet designed to maximize aisleway and vanity clearances in modular bathroom pods, student dormitories, and micro-unit developments.
- 670 × 380 × 750 mm short-projection footprint (ideal for narrow room plans)
- Seamless skirted base allows swift mopping in compact ensuite washrooms
- High-efficiency siphon flush maintaining strong waste clearance on minimal water
- Rugged PP soft-close seat cover resistant to heavy student/tenant usage
- Model
- MB-1906
- Dimensions
- 670 × 380 × 750 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-1906 670mm Ultra-Compact Pod Toilet Specifications
An ultra-compact 670mm depth one-piece toilet designed to maximize aisleway and vanity clearances in modular bathroom pods, student dormitories, and micro-unit developments.
Specifically designed for prefabricated modular pods, student accommodations, and micro-living apartments where space optimization is critical. If layout dimensions permit a slightly longer footprint, compare MB-1907 (680mm) or MB-1891 (690mm).
B2B Project Fit & Sourcing Guidance
Confirm MB-1906 for your market Specifically designed for prefabricated modular pods, student accommodations, and micro-living apartments where space optimization is critical.
Alternative selection: If layout dimensions permit a slightly longer footprint, compare MB-1907 (680mm) or MB-1891 (690mm).
Technical specifications
Engineering Data & Sourcing Specifications for MB-1906
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-1906
- Product type
- One-Piece Toilet
- Dimensions
- 670 × 380 × 750 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- Crystal white
- Product family
- One-Piece Toilets
- Flushing Technology
- Compact siphon jet (4.8L / 3.0L)
- Trapway & Waste Path
- ≥50 mm glazed trapway
- Water Seal Depth
- 50 mm anti-odour water seal
- Container Loading (40HQ)
- ~310 pcs / 40HQ container
- OEM / Customization Scope
- Bulk project packaging, institutional logo laser engraving, master carton palletized shipping
Toilet specification checklist
What buyers should confirm for MB-1906
Check the drainage condition and destination-market requirements before sample approval.High-frequency durability
Fitted with impact-resistant PP soft-close seat designed for high-turnover student accommodation.
Rough-in spacing
Supplied for standard 300 mm / 400 mm subfloor rough-in openings.
Modular container loading
Ultra-dense export carton packing accommodates approx. 310 units per 40HQ container.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-1906 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-1906
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic protection and carton method
- Seat and fitting pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-1906, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-1906
Share your rough-in or outlet position, required flush configuration, target market, quantity and delivery destination. MICAWA will review the request against the current MB-1906 technical information and available supply configuration.Continue exploring
Compare one-piece and smart toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-1906
Use the current product sheet and approved quotation as the final reference for this model.Which rough-in and outlet details should I confirm for MB-1906?
Confirm whether MB-1906 will connect to a floor or wall outlet, the required rough-in distance and the applicable project drainage drawing.
Which flush and seat configuration applies to MB-1906?
Request the current MB-1906 technical sheet to confirm its flushing configuration, seat, included fittings and any available options.
What should I send for a MB-1906 toilet quotation?
Send the target market, rough-in or outlet position, expected quantity, required documentation and delivery destination.
