Rough-in validation
Confirm whether the project requires 300 mm or 400 mm floor rough-in before ordering.
One-Piece Toilets

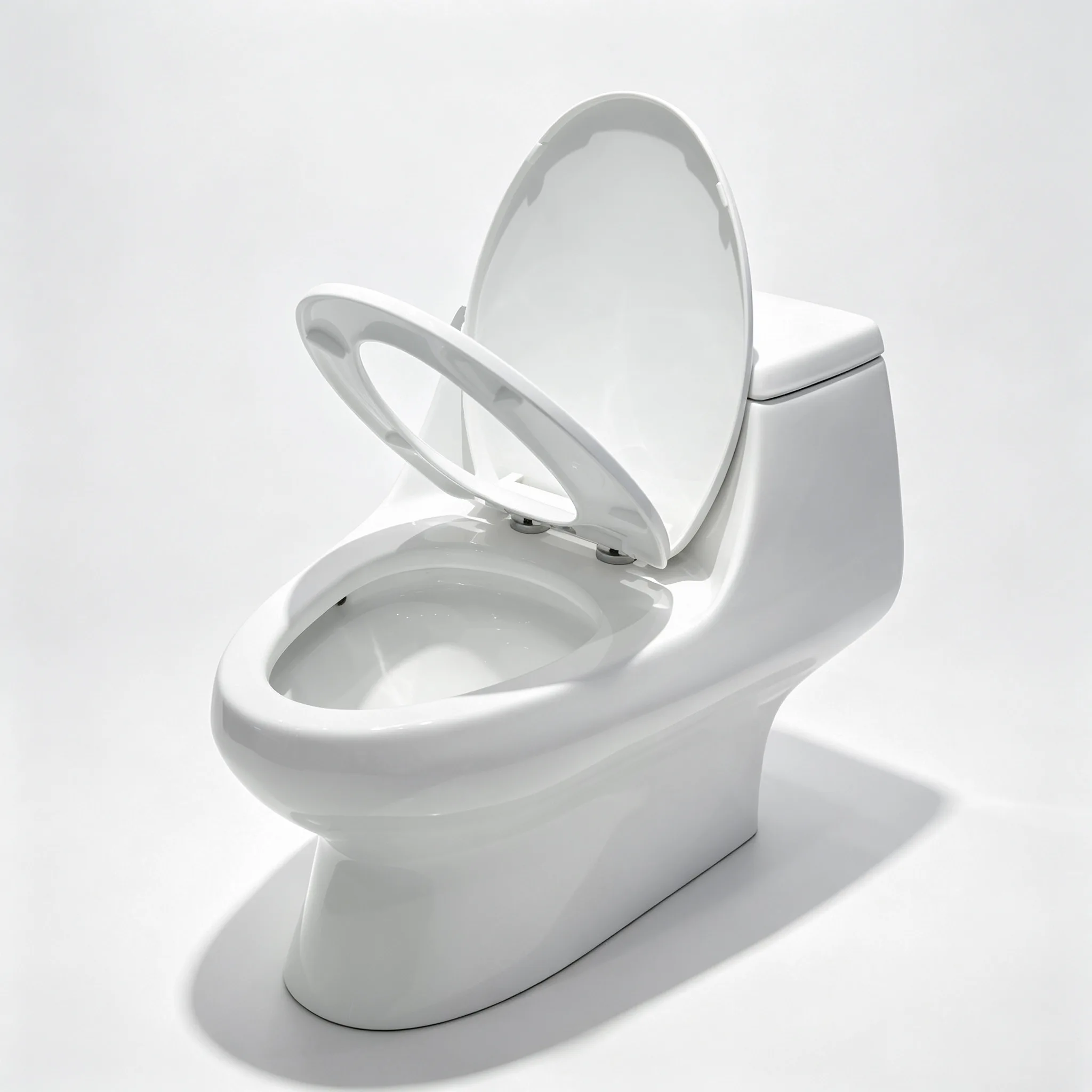

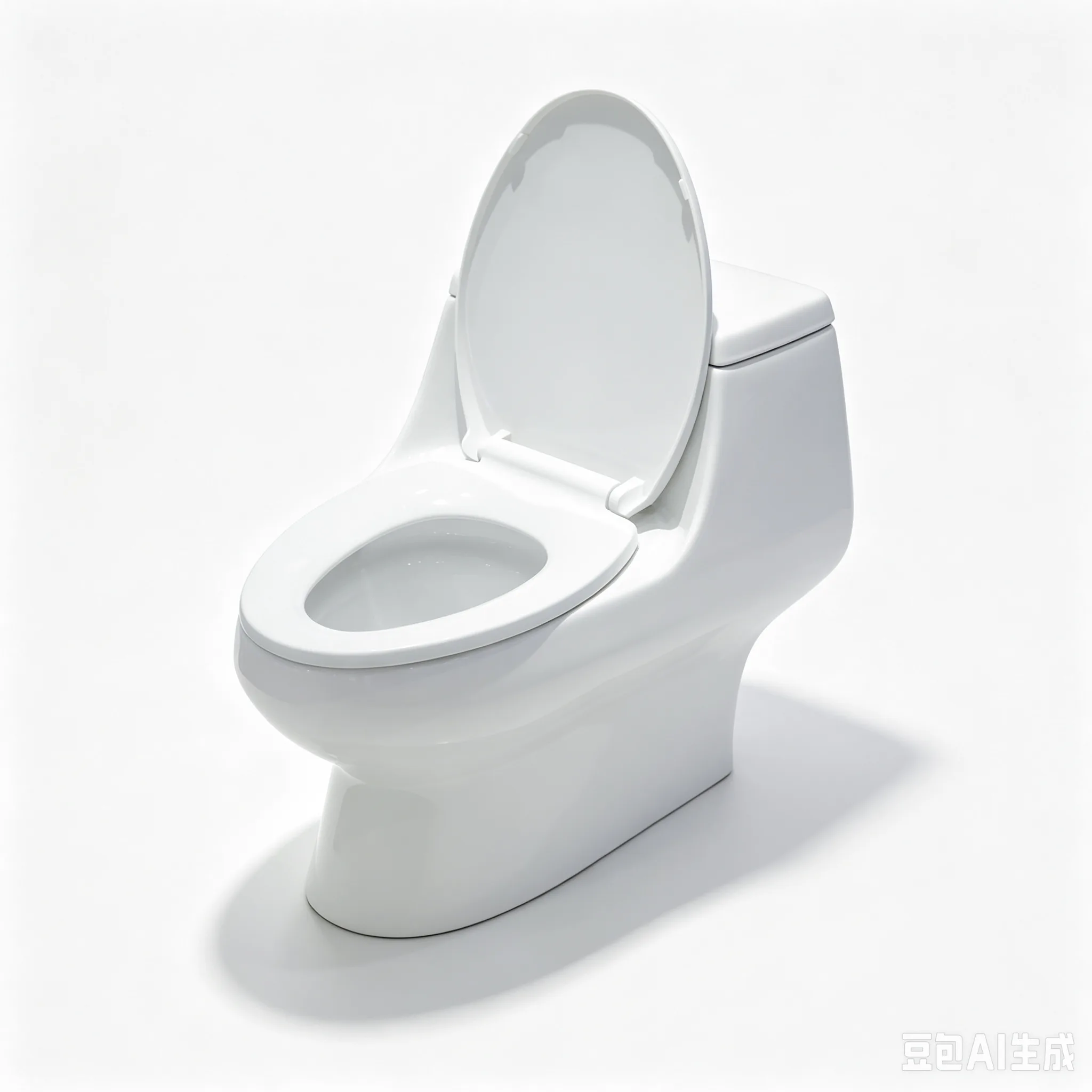

MB-1808A One-Piece Toilet
A 718mm elongated one-piece toilet engineered with softly contoured ceramic lines and a fully enclosed trapway base, offering hotel and residential developments an easy-to-clean floor footprint with reliable siphonic performance.
- 718 × 520 × 596 mm comfortable elongated bowl profile
- Fully skirted trapway eliminating side dust collection crevices
- Dual-mode siphon flushing (S-trap: 300 / 400 mm floor rough-in)
- Crystal-white vitrified ceramic with antibacterial microcrystalline glaze
- Model
- MB-1808A
- Dimensions
- 718 × 520 × 596 mm
- Configuration
- Floor outlet · 300 / 400 mm rough-in
- Finish / color
- Crystal white
Model overview
MB-1808A Engineering & Sourcing Specifications
A 718mm elongated one-piece toilet engineered with softly contoured ceramic lines and a fully enclosed trapway base, offering hotel and residential developments an easy-to-clean floor footprint with reliable siphonic performance.
Well-suited for 3- to 4-star hotel guestrooms and residential master bathrooms where comfortable elongated seating and efficient housekeeping turnaround are required. If your project brief requires crisp geometric lines, review MB-1843. For buildings with rear through-wall drainage, specify MB-1898H.
B2B Project Fit & Sourcing Guidance
Confirm MB-1808A for your market Well-suited for 3- to 4-star hotel guestrooms and residential master bathrooms where comfortable elongated seating and efficient housekeeping turnaround are required.
Alternative selection: If your project brief requires crisp geometric lines, review MB-1843. For buildings with rear through-wall drainage, specify MB-1898H.
Technical specifications
Engineering Data & Sourcing Specifications for MB-1808A
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MB-1808A
- Product type
- One-Piece Toilet
- Dimensions
- 718 × 520 × 596 mm
- Installation / Outlet
- Floor outlet · 300 / 400 mm rough-in
- Finish / Color
- Crystal white
- Product family
- One-Piece Toilets
- Flushing Technology
- Siphon Jet dual-flush (4.8L / 3.3L)
- Trapway & Waste Path
- ≥50 mm fully glazed trapway
- Water Seal Depth
- 55 mm deep anti-odour water seal
- Container Loading (40HQ)
- ~280 pcs / 40HQ container
- OEM / Customization Scope
- Laser logo on cistern lid, OEM shipping mark, customized barcode cartons
Toilet specification checklist
What buyers should confirm for MB-1808A
Check the drainage condition and destination-market requirements before sample approval.Seat cover specification
Standard configuration includes PP soft-close seat; heavy-duty UF (urea-formaldehyde) seat available on OEM request.
Flush mechanism branding
Fitted with standard high-end water fittings; certified WDI or R&T mechanisms optional for project tenders.
Container loading target
Estimated packaging volume: ~0.24 CBM/ctn; approx. 280 units per 40HQ container.
Category engineering
One-Piece Toilet Manufacturing Advantages
MICAWA combines high-temperature ceramic production, fully glazed trapways and verified flushing and durability tests for one-piece toilet programs.Microcrystalline easy-clean glaze
An antibacterial, self-cleaning glaze supports a smoother surface and easier routine cleaning.
Fully vitrified ceramic body
Fired at 1,280°C for 18 hours, with a water absorption rate of 0.1%.
Fully glazed waste path
The complete trapway receives three glaze applications, with a passage diameter of at least 50 mm, a three-second rapid discharge target and a water seal height of at least 50 mm.
Water-saving dual flush
Full flush uses no more than 4.8 L and half flush no more than 3.3 L, with flushing noise around 50 dB.
360° rim wash coverage
A full circular water path achieves a measured 98% cleaning rate, helping reduce repeat flushing.
High discharge performance
Test capability reaches 200 ball discharges, 1,000 g solid-waste discharge and zero residual particles.
Durable seat and flushing parts
Soft-close seats are tested for at least 50,000 opening cycles, while flushing components are tested for at least 100,000 operating cycles.
Filtered inlet valve
An integrated inlet filter helps the flushing system adapt to more complex water conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MB-1808A against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MB-1808A
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic protection and carton method
- Seat and fitting pack list
- Model labels and shipping marks
- Loading quantity after packing confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MB-1808A, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MB-1808A
Share your rough-in or outlet position, required flush configuration, target market, quantity and delivery destination. MICAWA will review the request against the current MB-1808A technical information and available supply configuration.Continue exploring
Compare one-piece and smart toilet options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Toilets FAQ
Questions to confirm for MB-1808A
Use the current product sheet and approved quotation as the final reference for this model.Which rough-in and outlet details should I confirm for MB-1808A?
Confirm whether MB-1808A will connect to a floor or wall outlet, the required rough-in distance and the applicable project drainage drawing.
Which flush and seat configuration applies to MB-1808A?
Request the current MB-1808A technical sheet to confirm its flushing configuration, seat, included fittings and any available options.
What should I send for a MB-1808A toilet quotation?
Send the target market, rough-in or outlet position, expected quantity, required documentation and delivery destination.
