Minimum vanity top width
Requires minimum 900 mm wide countertop to accommodate 666 mm undermount flange.
Undermount Basins

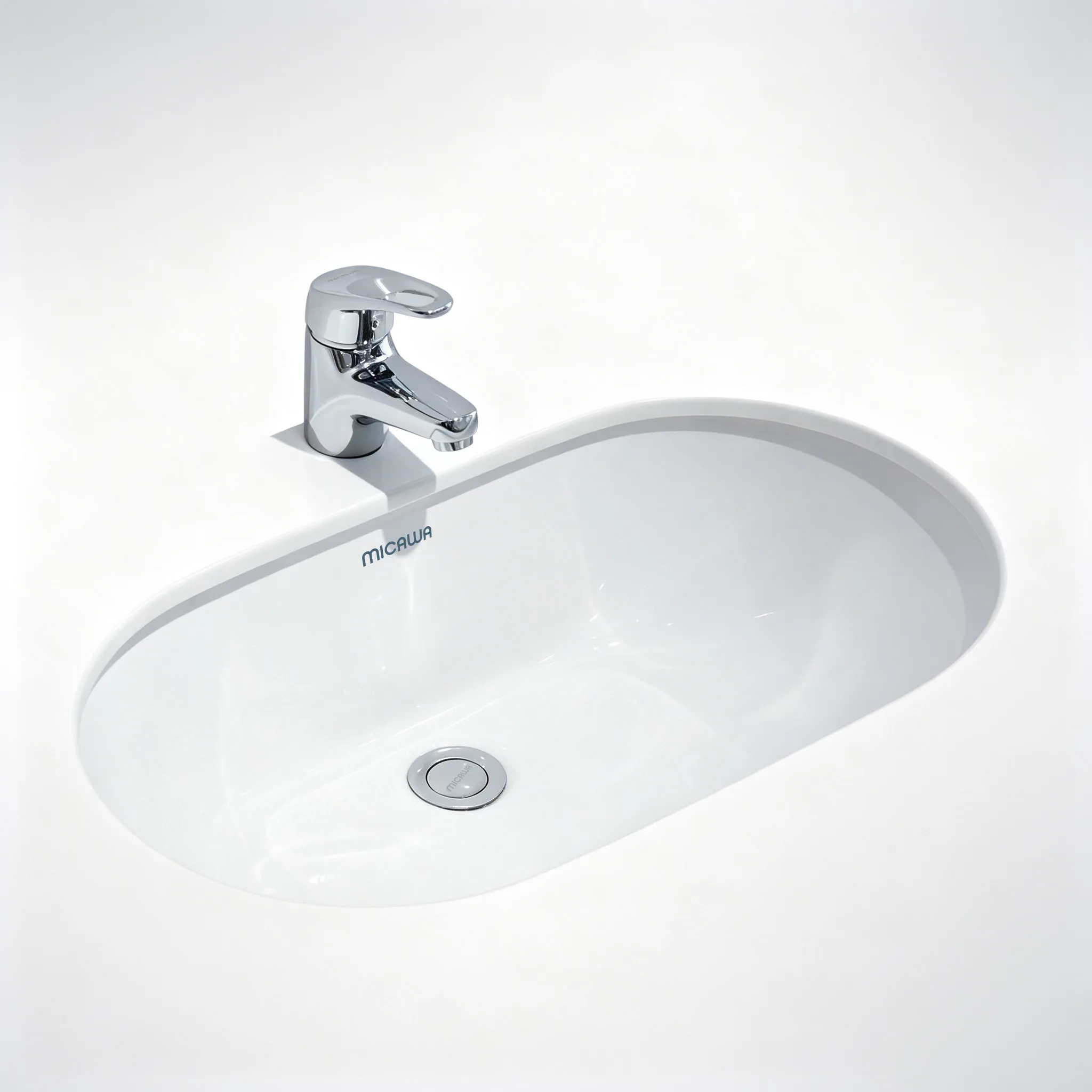

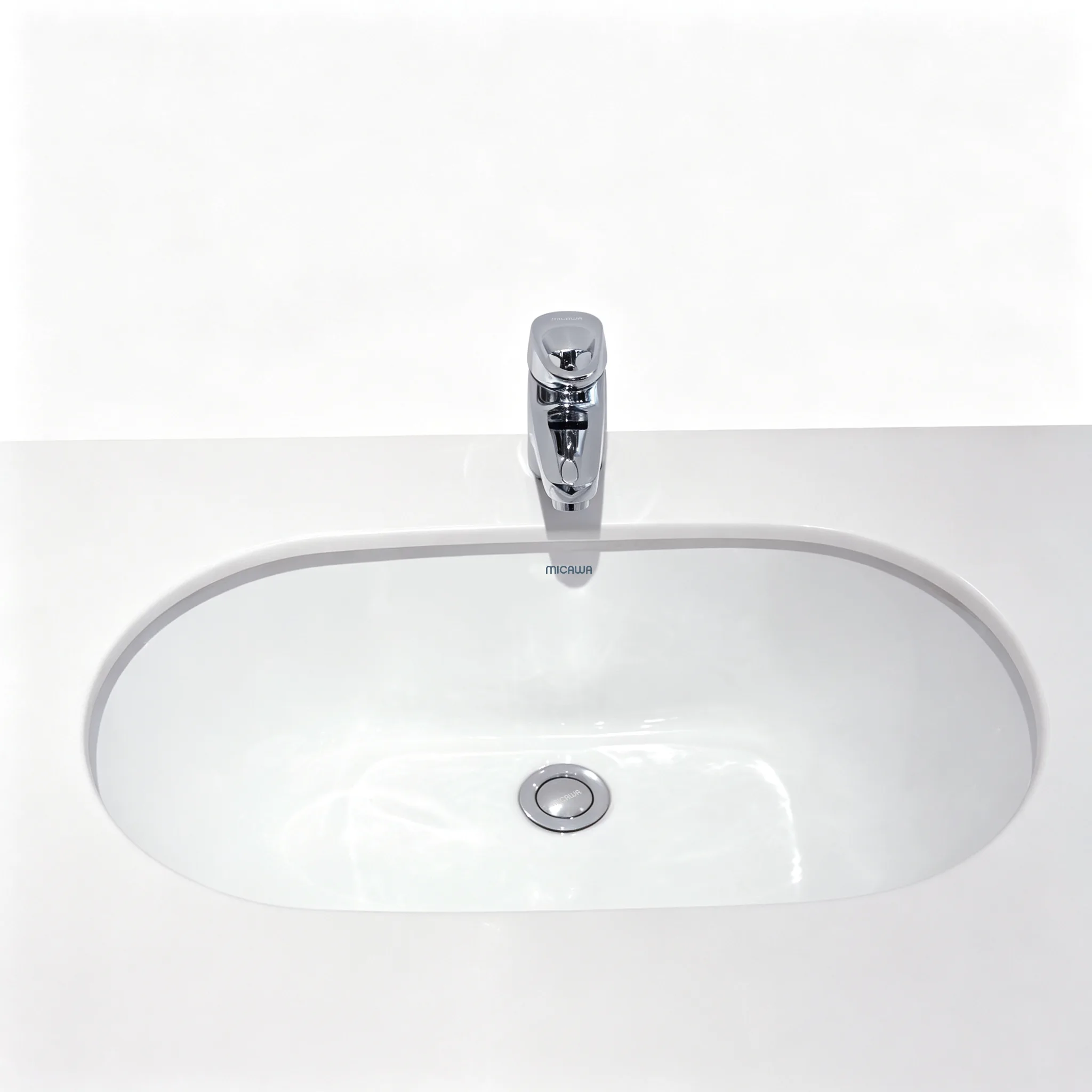

MP-4860 Undermount Ceramic Basin
A 666mm wide-stance undermount ceramic basin combining an elongated rectangular silhouette with rounded end radii, offering expansive wash area for premium double or single vanities.
- 666 × 402 × 205 mm expansive elongated wash area
- Wide 666mm aperture providing substantial room for dual-faucet or single luxury setups
- Sub-countertop seamless installation maximizing usable vanity top workspace
- High-fire 1,280°C vitreous china with antibacterial easy-clean glaze
- Model
- MP-4860
- Dimensions
- 666 × 402 × 205 mm
- Configuration
- Waste not included
- Finish / color
- Crystal white
Model overview
MP-4860 666mm Elongated Undermount Basin Specifications
A 666mm wide-stance undermount ceramic basin combining an elongated rectangular silhouette with rounded end radii, offering expansive wash area for premium double or single vanities.
Engineered for luxury hotel master suites, executive residential bathrooms, and wide vanity counters (≥1,200mm width). If vanity width is under 1,000mm, compact 556mm MP-4807 or 600mm MP-4717 is recommended.
B2B Project Fit & Sourcing Guidance
Confirm MP-4860 for your market Engineered for luxury hotel master suites, executive residential bathrooms, and wide vanity counters (≥1,200mm width).
Alternative selection: If vanity width is under 1,000mm, compact 556mm MP-4807 or 600mm MP-4717 is recommended.
Technical specifications
Engineering Data & Sourcing Specifications for MP-4860
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MP-4860
- Product type
- Undermount Ceramic Basin
- Dimensions
- 666 × 402 × 205 mm
- Installation / Outlet
- Waste not included
- Finish / Color
- Crystal white
- Product family
- Undermount Basins
- Flushing Technology
- Broad-surface gravity drainage with front overflow slot
- Trapway & Waste Path
- 45 mm standard drain hole
- Water Seal Depth
- 205 mm deep bowl capacity
- Container Loading (40HQ)
- ~600 pcs / 40HQ container
- OEM / Customization Scope
- Client brand firing, CNC cutout DXF files, project master cartons with customized shipping marks
Undermount basin installation checklist
What buyers should confirm for MP-4860
Match the basin to the countertop cut-out, fixing method and plumbing layout before release.Cabinet internal clearance
Verify that cabinet partition walls do not obstruct the 666 mm undermount lip.
Slotted pop-up drain pairing
Compatible with all standard G 1-1/4" slotted basin clicker wastes.
Export transit security
Protected by heavy-gauge honeycomb cradles; ~600 units / 40HQ container.
Category engineering
Ceramic Basin Manufacturing Advantages
MICAWA ceramic basins use high-pressure casting, high-temperature vitrification and controlled glazing and dimensional inspection to support coordinated vanity and project installation.High-pressure casting
Basin bodies are high-pressure cast and fired at 1,280°C for 18 hours for full ceramic vitrification.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with a total glaze thickness of 0.5–1.0 mm and water absorption of no more than 0.2%.
Thermal-cycle resistance
Alternating hot-and-cold cycle tests show no cracking, supporting use in changing bathroom temperatures.
Complete basin range
The product line covers countertop, semi-recessed, undermount, wall-hung, pedestal and integrated basin formats.
Practical bowl depth
Bowl depths across the range extend from 140 to 210 mm.
Controlled installation details
Overflow holes are standard within applicable configurations, and dimensional tolerance is tightly controlled to ±1.5 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MP-4860 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MP-4860
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Rim and glazed-surface protection
- Fixing and accessory pack list
- Model labels and shipping marks
- Loading quantity after carton confirmation
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MP-4860, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MP-4860
Share your countertop material and cut-out, fixing method, faucet position, waste and overflow requirements, quantity and market. MICAWA will review the request against the current MP-4860 technical information and available supply configuration.Continue exploring
Compare undermount and countertop basin options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Ceramic Basins FAQ
Questions to confirm for MP-4860
Use the current product sheet and approved quotation as the final reference for this model.Can I request a countertop cut-out drawing for MP-4860?
Yes. Request the current MP-4860 drawing and confirm the cut-out, reveal direction and fixing method before fabrication.
Which countertop details should I provide for MP-4860?
Share countertop material, thickness, cabinet clearance and faucet position so installation compatibility can be reviewed.
Which plumbing details are needed for MP-4860?
Confirm the waste connection, overflow requirement and available clearance inside the vanity or counter.
