Sensor power standard
Confirm AC220V mains power connection or DC 6V battery pack configuration.
Urinals

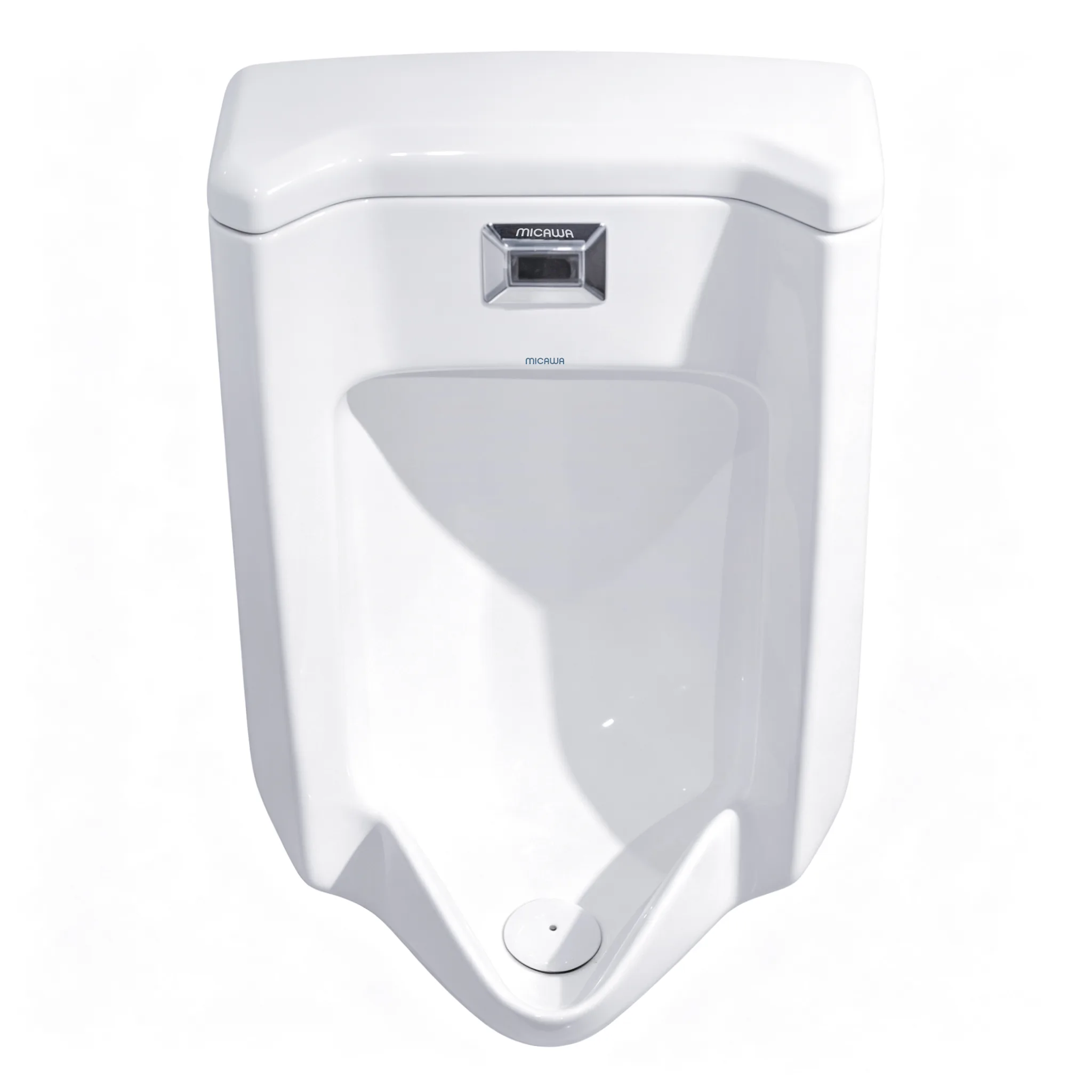

MN-6805G Sensor Wall-Hung Urinal
An architectural 830mm square-profile wall-hung urinal with an integrated infrared flush sensor, delivering touchless hygiene for corporate office buildings and luxury shopping centers.
- 830 × 490 × 368 mm architectural geometric silhouette

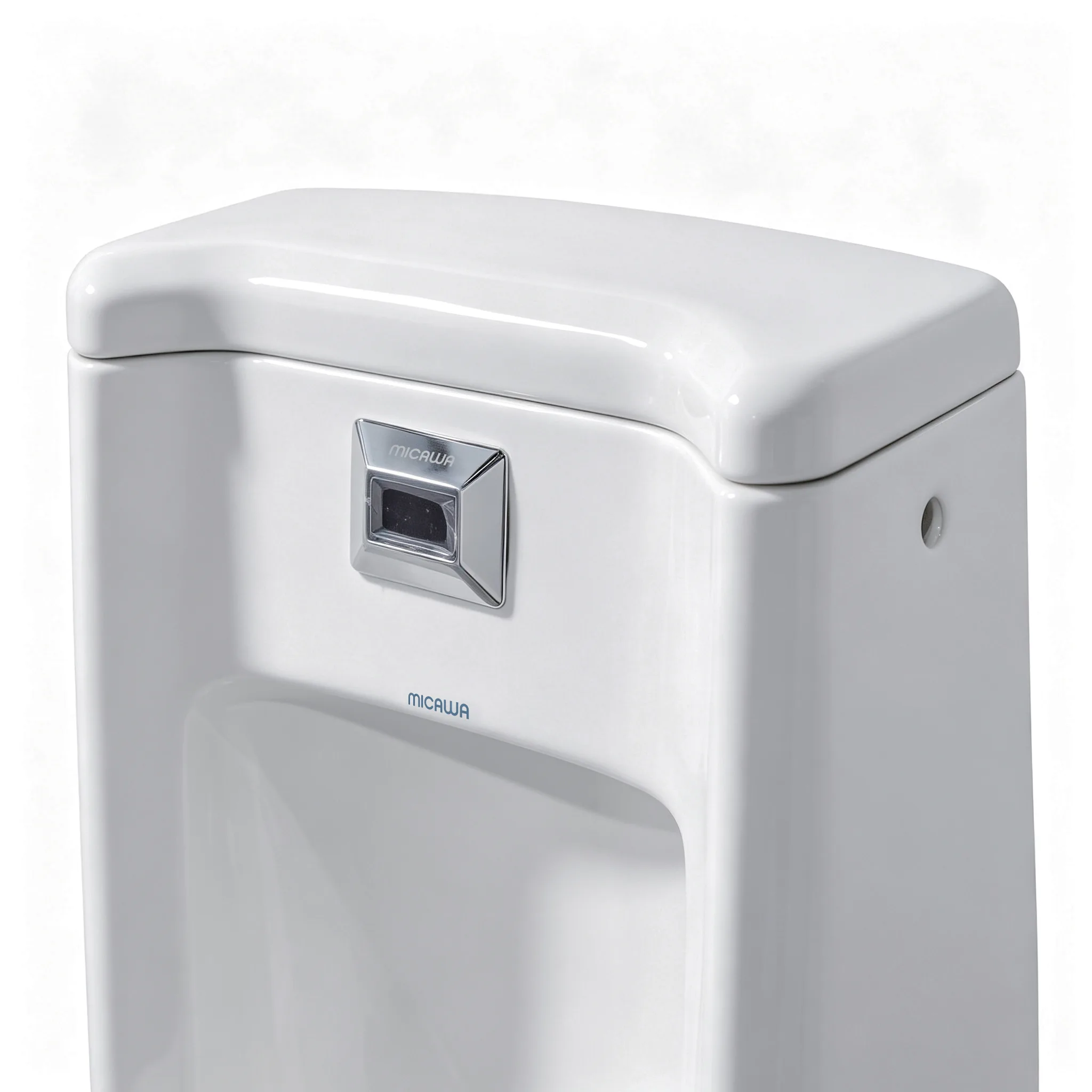

- Integrated touch-free infrared sensor flush mechanism
- Intelligent pre-flush and main-flush water management (down to 0.5L/use)
- Fully concealed in-wall service connections for anti-tamper security
- Model
- MN-6805G
- Dimensions
- 830 × 490 × 368 mm
- Configuration
- Wall-hung installation
- Finish / color
- Crystal white
Model overview
MN-6805G Touchless Sensor Commercial Urinal Specifications
An architectural 830mm square-profile wall-hung urinal with an integrated infrared flush sensor, delivering touchless hygiene for corporate office buildings and luxury shopping centers.
Engineered for Class-A corporate washrooms, convention centers, and high-end retail venues where modern design and touchless sanitation are critical. For compact washrooms with restricted stall width under 350mm, specify compact MN-6823G.
B2B Project Fit & Sourcing Guidance
Confirm MN-6805G for your market Engineered for Class-A corporate washrooms, convention centers, and high-end retail venues where modern design and touchless sanitation are critical.
Alternative selection: For compact washrooms with restricted stall width under 350mm, specify compact MN-6823G.
Technical specifications
Engineering Data & Sourcing Specifications for MN-6805G
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MN-6805G
- Product type
- Sensor Wall-Hung Urinal
- Dimensions
- 830 × 490 × 368 mm
- Installation / Outlet
- Wall-hung installation
- Finish / Color
- Crystal white
- Product family
- Urinals
- Flushing Technology
- Microprocessor sensor-controlled washdown (0.5L - 1.0L)
- Trapway & Waste Path
- Concealed horizontal waste connection (50 mm)
- Water Seal Depth
- 50 mm deep water trap
- Container Loading (40HQ)
- ~240 pcs / 40HQ container
- OEM / Customization Scope
- Sensor cover branding, customized sensing distance parameters, OEM project master carton
Urinal project checklist
What buyers should confirm for MN-6805G
Commercial urinal selection depends on the wall condition, drainage route and flush-control system.Water supply rough-in
Requires concealed rear-inlet water feed behind ceramic shell.
Vandal-resistant wall locking
Secured via concealed bottom hex-locking bolts to prevent unauthorized removal.
Sensor electronics transit pack
Sensor module and solenoid pre-tested and individually boxed; ~240 units / 40HQ.
Category engineering
Urinal Manufacturing Advantages
MICAWA urinals combine high-pressure casting, high-temperature firing, low-volume flushing and flexible inlet, drainage and control configurations for commercial washrooms.High-pressure ceramic casting
The ceramic body is high-pressure cast, fully vitrified and fired at 1,280°C for 18 hours.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with water absorption of no more than 0.5%.
Ceramic body strength
The ceramic body has a flexural failure load of at least 0.22 kN.
Low-volume flushing
Water use can be as low as 0.5 L per flush, saving up to 62.5% per cycle while covering 96% of the inner wall.
Drainage capacity
The waste outlet diameter is at least 19 mm.
Flexible inlet options
The urinal range supports rear-inlet and top-inlet configurations.
Wall or floor drainage
Wall-drain and floor-drain configurations are available across the range.
Multiple flush controls
Range options include sensor, manual push-button and foot-operated flushing controls.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MN-6805G against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MN-6805G
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic body protection
- Flush-control and fitting pack list
- Installation labels and shipping marks
- Project delivery sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MN-6805G, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MN-6805G
Share your inlet and drainage positions, flush control, power condition where applicable, target market and quantity. MICAWA will review the request against the current MN-6805G technical information and available supply configuration.Continue exploring
Compare urinals and sanitary ware for commercial washrooms
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Urinals FAQ
Questions to confirm for MN-6805G
Use the current product sheet and approved quotation as the final reference for this model.Which inlet and drainage arrangement applies to MN-6805G?
Confirm top or rear inlet, wall or floor drainage and the available service positions for MN-6805G.
Which flush-control option should be specified for MN-6805G?
State whether the project requires sensor, manual or another control method and provide power conditions where applicable.
What project information is needed to quote MN-6805G?
Share quantity, installation drawing, washroom layout, destination market and documentation requirements.
