Flush valve pairing
Compatible with external exposed sensor valves or concealed in-wall solenoids.
Urinals

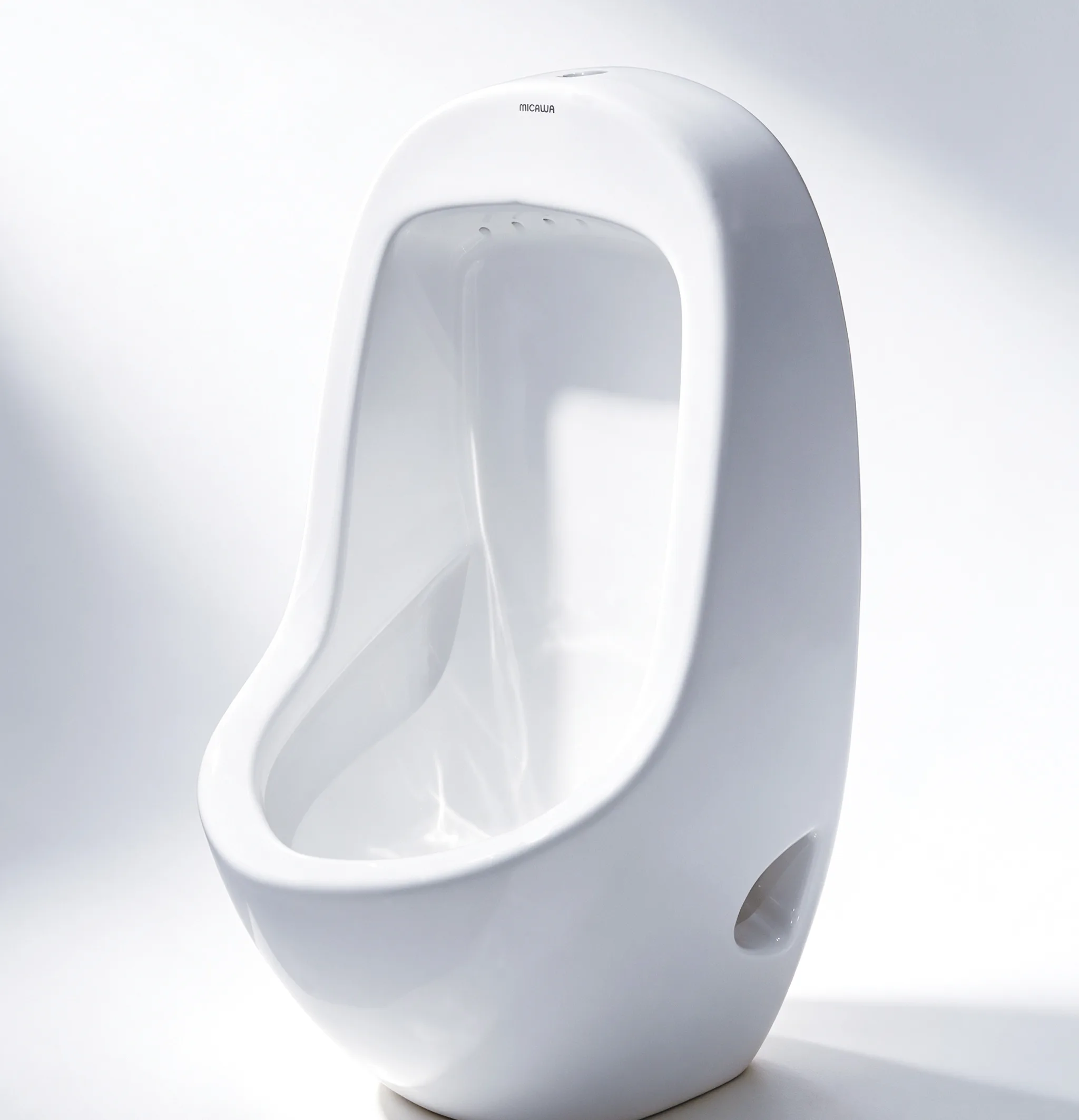

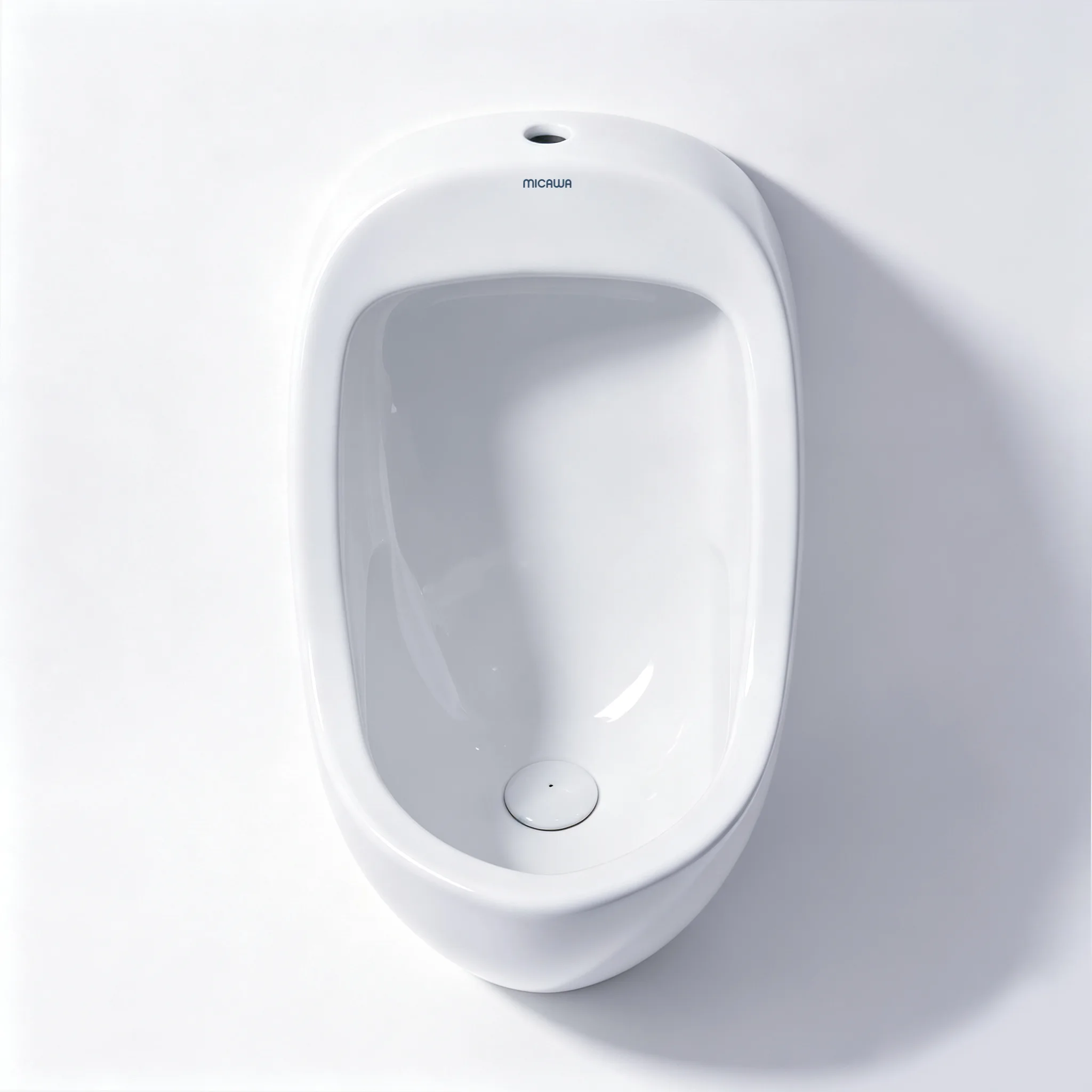

MN-6802 Wall-Hung Urinal
A heavy-duty 770mm rounded wall-hung vitreous ceramic urinal engineered for high-traffic municipal washrooms, transit hubs, and educational facilities.
- 770 × 365 × 380 mm rounded ergonomic bowl stance
- Microcrystalline antibacterial glaze providing rapid non-stick washdown
- High-load wall-mounting bracket system included
- Fired at 1,280°C with <0.5% water absorption for odor-free operation
- Model
- MN-6802
- Dimensions
- 770 × 365 × 380 mm
- Configuration
- Wall-hung installation
- Finish / color
- Crystal white
Model overview
MN-6802 Rounded Commercial Wall-Hung Urinal Specifications
A heavy-duty 770mm rounded wall-hung vitreous ceramic urinal engineered for high-traffic municipal washrooms, transit hubs, and educational facilities.
Specified for schools, transit stations, airport terminals, and commercial centers demanding vandal-resistant durability. For touchless sensor-integrated flushing out of the box, select MN-6805G or MN-6823G.
B2B Project Fit & Sourcing Guidance
Confirm MN-6802 for your market Specified for schools, transit stations, airport terminals, and commercial centers demanding vandal-resistant durability.
Alternative selection: For touchless sensor-integrated flushing out of the box, select MN-6805G or MN-6823G.
Technical specifications
Engineering Data & Sourcing Specifications for MN-6802
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MN-6802
- Product type
- Wall-Hung Urinal
- Dimensions
- 770 × 365 × 380 mm
- Installation / Outlet
- Wall-hung installation
- Finish / Color
- Crystal white
- Product family
- Urinals
- Flushing Technology
- Washdown gravity flush (0.5L - 1.5L per cycle)
- Trapway & Waste Path
- Integrated ceramic P-trap / 50 mm outlet
- Water Seal Depth
- 50 mm anti-backflow water seal
- Container Loading (40HQ)
- ~340 pcs / 40HQ container
- OEM / Customization Scope
- Public works logo engraving, top/rear inlet conversion, bulk project export boxing
Urinal project checklist
What buyers should confirm for MN-6802
Commercial urinal selection depends on the wall condition, drainage route and flush-control system.Inlet connection direction
Top-inlet or back-inlet configuration confirmed prior to production batch.
Wall bracket anchoring
Heavy-duty steel mounting clips and wall expansion bolts included in fitting kit.
Container logistics yield
Optimized nesting packing accommodates approx. 340 units per 40HQ.
Category engineering
Urinal Manufacturing Advantages
MICAWA urinals combine high-pressure casting, high-temperature firing, low-volume flushing and flexible inlet, drainage and control configurations for commercial washrooms.High-pressure ceramic casting
The ceramic body is high-pressure cast, fully vitrified and fired at 1,280°C for 18 hours.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with water absorption of no more than 0.5%.
Ceramic body strength
The ceramic body has a flexural failure load of at least 0.22 kN.
Low-volume flushing
Water use can be as low as 0.5 L per flush, saving up to 62.5% per cycle while covering 96% of the inner wall.
Drainage capacity
The waste outlet diameter is at least 19 mm.
Flexible inlet options
The urinal range supports rear-inlet and top-inlet configurations.
Wall or floor drainage
Wall-drain and floor-drain configurations are available across the range.
Multiple flush controls
Range options include sensor, manual push-button and foot-operated flushing controls.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MN-6802 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MN-6802
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic body protection
- Flush-control and fitting pack list
- Installation labels and shipping marks
- Project delivery sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MN-6802, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MN-6802
Share your inlet and drainage positions, flush control, power condition where applicable, target market and quantity. MICAWA will review the request against the current MN-6802 technical information and available supply configuration.Continue exploring
Compare urinals and sanitary ware for commercial washrooms
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Urinals FAQ
Questions to confirm for MN-6802
Use the current product sheet and approved quotation as the final reference for this model.Which inlet and drainage arrangement applies to MN-6802?
Confirm top or rear inlet, wall or floor drainage and the available service positions for MN-6802.
Which flush-control option should be specified for MN-6802?
State whether the project requires sensor, manual or another control method and provide power conditions where applicable.
What project information is needed to quote MN-6802?
Share quantity, installation drawing, washroom layout, destination market and documentation requirements.
