Splash wall protection
760 mm extended ceramic back eliminates need for secondary wall splash plates.
Urinals

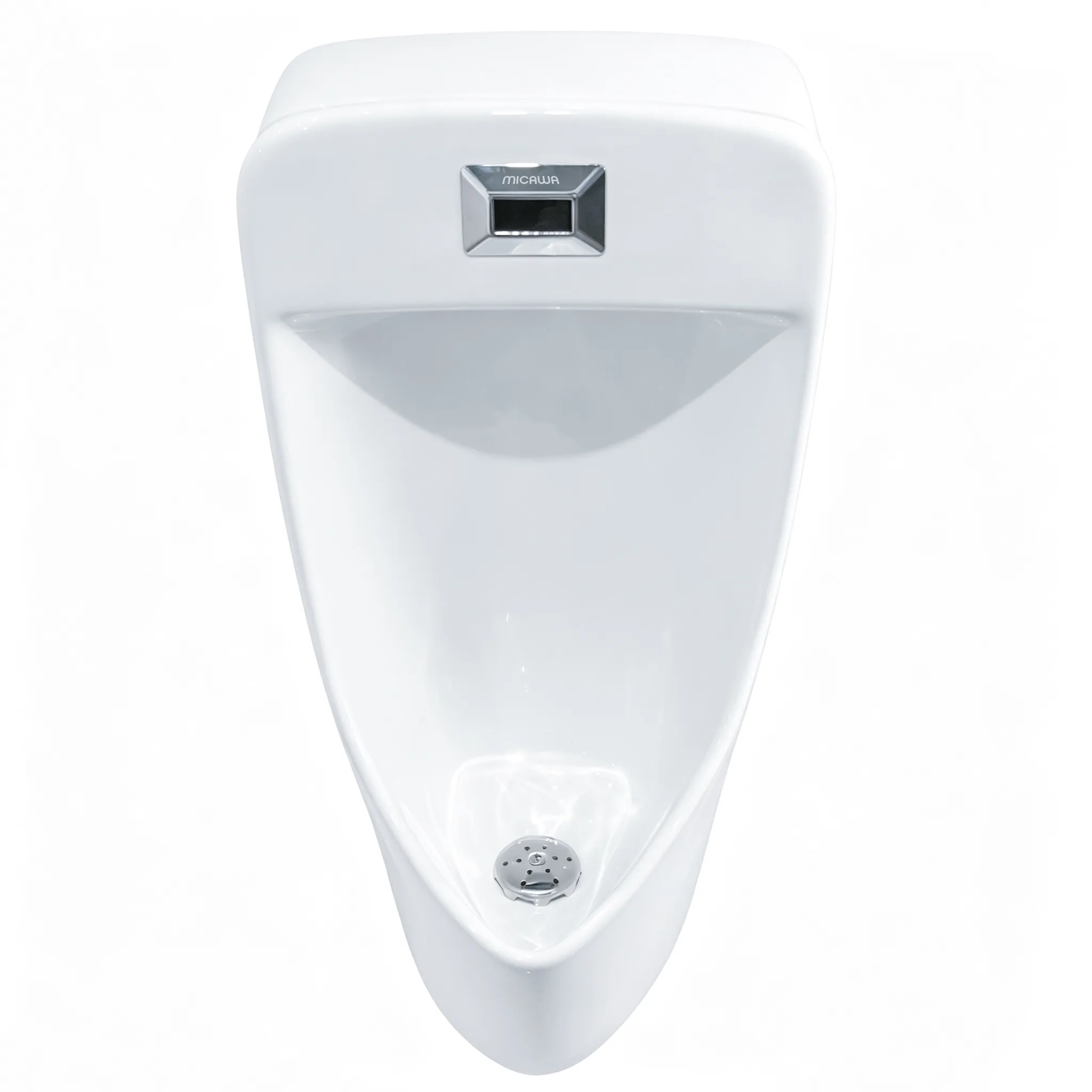

MN-6827G Sensor Wall-Hung Urinal
A 760mm tall high-back wall-hung sensor urinal featuring an extended ceramic splash guard to protect back-wall tiling in high-traffic public facilities.
- 360 × 380 × 760 mm tall splash-conscious profile

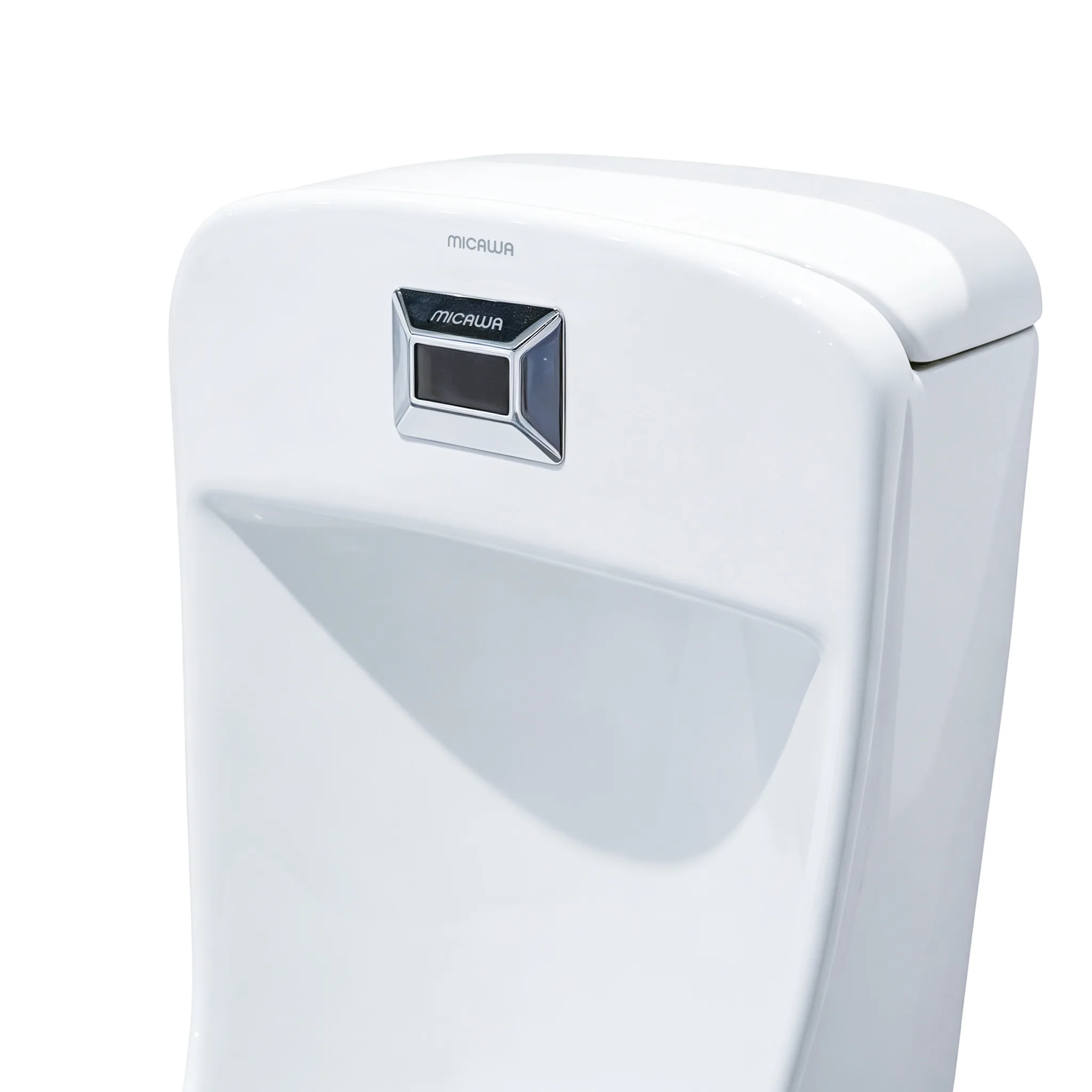

- Integrated touch-free infrared sensor with automatic 24-hour hygiene flush
- Extended ceramic shroud catching ambient splash and reducing tile grout staining
- Smooth easy-rinse glazed internal waste channel
- Model
- MN-6827G
- Dimensions
- 360 × 380 × 760 mm
- Configuration
- Wall-hung installation
- Finish / color
- Crystal white
Model overview
MN-6827G 760mm Tall High-Back Sensor Urinal Specifications
A 760mm tall high-back wall-hung sensor urinal featuring an extended ceramic splash guard to protect back-wall tiling in high-traffic public facilities.
Engineered for airport terminals, sports stadiums, motorway service areas, and high-turnover public washrooms. For a streamlined curved front aesthetic in executive suites, review MN-6828G.
B2B Project Fit & Sourcing Guidance
Confirm MN-6827G for your market Engineered for airport terminals, sports stadiums, motorway service areas, and high-turnover public washrooms.
Alternative selection: For a streamlined curved front aesthetic in executive suites, review MN-6828G.
Technical specifications
Engineering Data & Sourcing Specifications for MN-6827G
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MN-6827G
- Product type
- Sensor Wall-Hung Urinal
- Dimensions
- 360 × 380 × 760 mm
- Installation / Outlet
- Wall-hung installation
- Finish / Color
- Crystal white
- Product family
- Urinals
- Flushing Technology
- Dual-stage infrared sensor flush (0.8L - 1.2L)
- Trapway & Waste Path
- 50 mm internal siphon P-trap
- Water Seal Depth
- 50 mm deep water trap
- Container Loading (40HQ)
- ~280 pcs / 40HQ container
- OEM / Customization Scope
- Public sector tender branding, custom voltage solenoids, project crate packing
Urinal project checklist
What buyers should confirm for MN-6827G
Commercial urinal selection depends on the wall condition, drainage route and flush-control system.Hygiene purge cycle
Automatic self-flush every 24 hours prevents trap evaporation and trapway odour.
Solid backing wall required
Heavy-duty wall fixings require structural masonry or reinforced timber studs.
Palletized container logistics
Reinforced tall cartons accommodated at approx. 280 units per 40HQ.
Category engineering
Urinal Manufacturing Advantages
MICAWA urinals combine high-pressure casting, high-temperature firing, low-volume flushing and flexible inlet, drainage and control configurations for commercial washrooms.High-pressure ceramic casting
The ceramic body is high-pressure cast, fully vitrified and fired at 1,280°C for 18 hours.
Composite high-temperature glazing
A second high-temperature glazing process creates a microcrystalline antibacterial easy-clean surface with water absorption of no more than 0.5%.
Ceramic body strength
The ceramic body has a flexural failure load of at least 0.22 kN.
Low-volume flushing
Water use can be as low as 0.5 L per flush, saving up to 62.5% per cycle while covering 96% of the inner wall.
Drainage capacity
The waste outlet diameter is at least 19 mm.
Flexible inlet options
The urinal range supports rear-inlet and top-inlet configurations.
Wall or floor drainage
Wall-drain and floor-drain configurations are available across the range.
Multiple flush controls
Range options include sensor, manual push-button and foot-operated flushing controls.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MN-6827G against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MN-6827G
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Ceramic body protection
- Flush-control and fitting pack list
- Installation labels and shipping marks
- Project delivery sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MN-6827G, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MN-6827G
Share your inlet and drainage positions, flush control, power condition where applicable, target market and quantity. MICAWA will review the request against the current MN-6827G technical information and available supply configuration.Continue exploring
Compare urinals and sanitary ware for commercial washrooms
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Urinals FAQ
Questions to confirm for MN-6827G
Use the current product sheet and approved quotation as the final reference for this model.Which inlet and drainage arrangement applies to MN-6827G?
Confirm top or rear inlet, wall or floor drainage and the available service positions for MN-6827G.
Which flush-control option should be specified for MN-6827G?
State whether the project requires sensor, manual or another control method and provide power conditions where applicable.
What project information is needed to quote MN-6827G?
Share quantity, installation drawing, washroom layout, destination market and documentation requirements.
