Pathway & doorway clearance
Verify 800 mm bathroom door width to ensure smooth installation entry.
Bathtubs

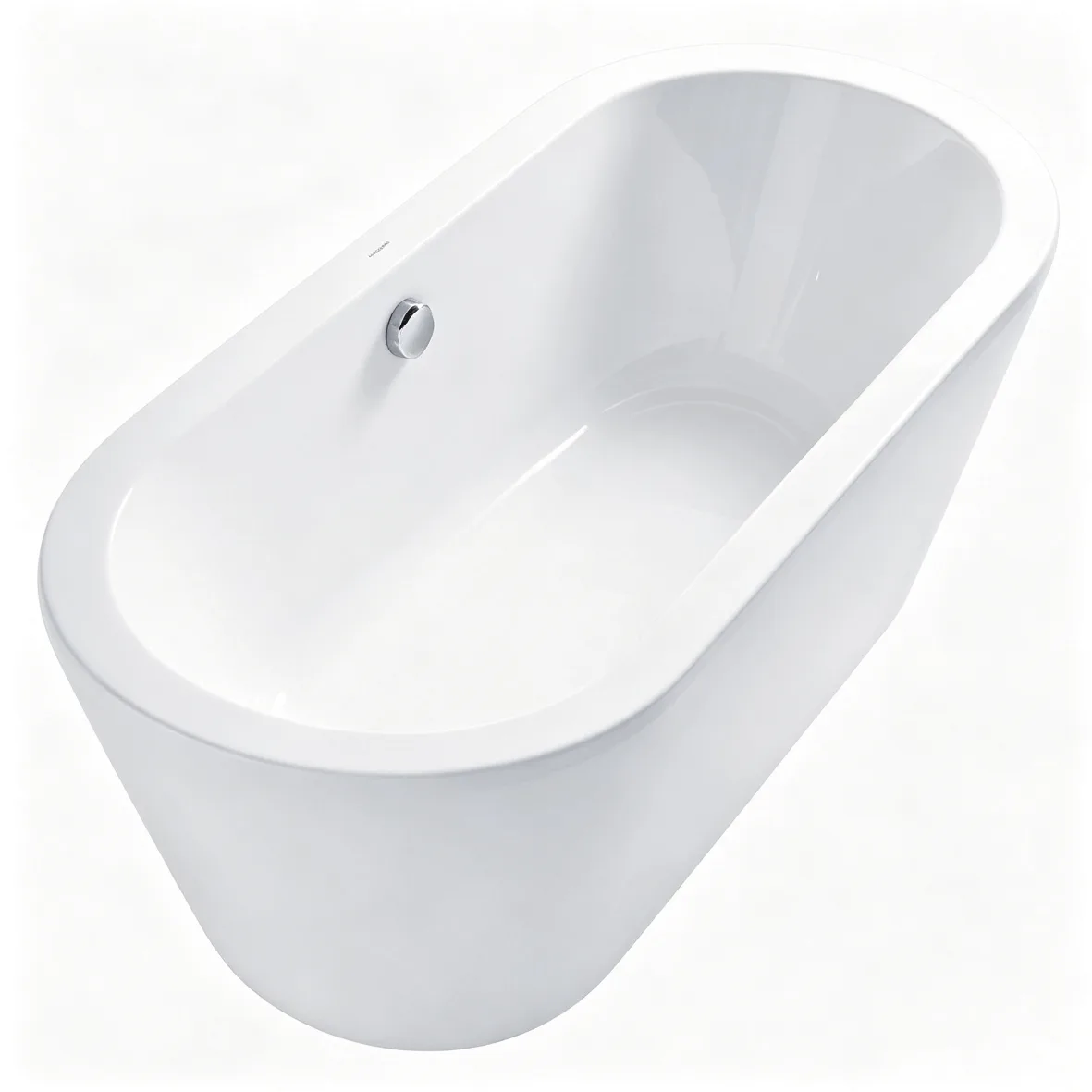

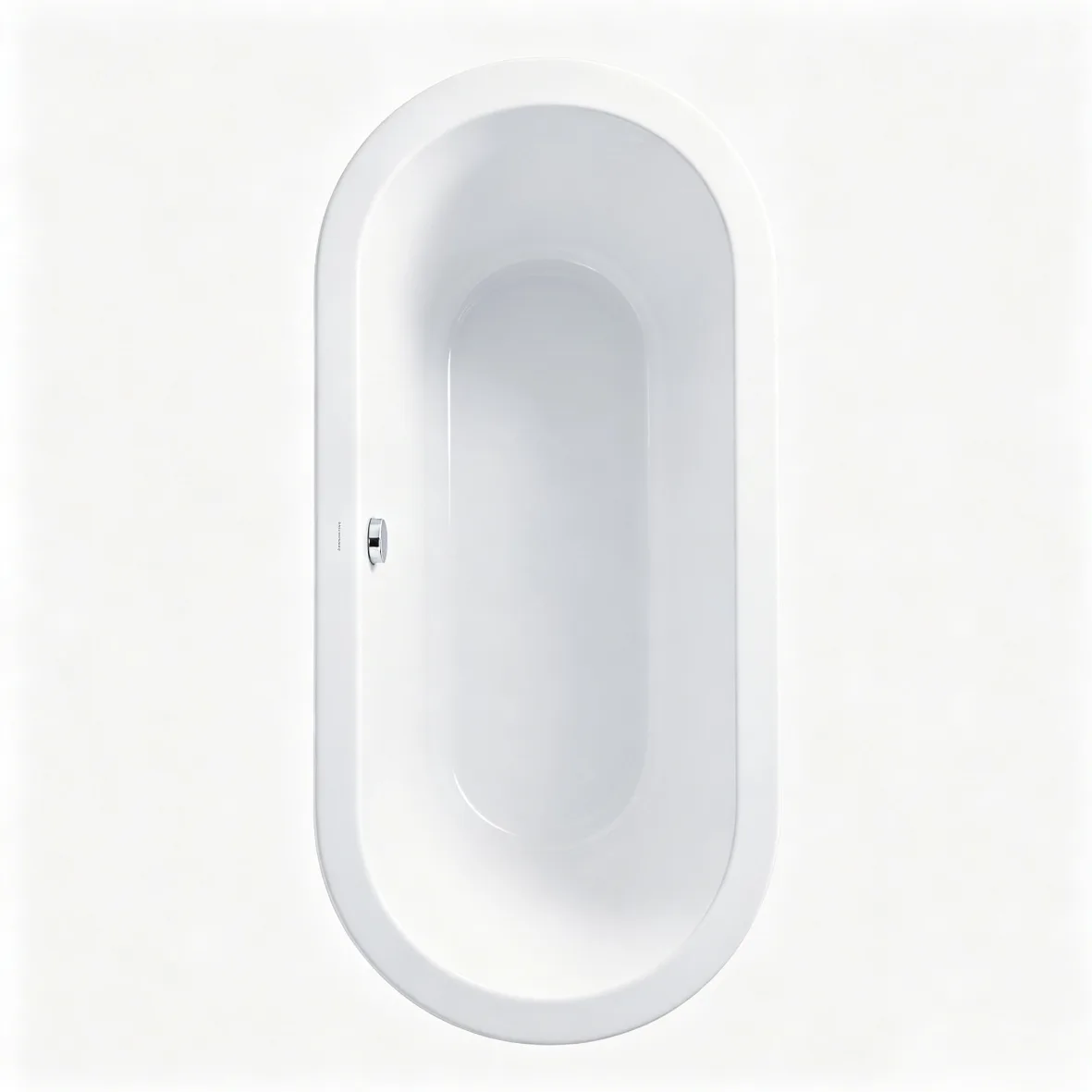

M-1750ZQ Acrylic Skirted Bathtub
A 1750mm full-skirt freestanding acrylic soaking bathtub engineered with a seamless one-piece outer shroud, ergonomic 120° backrest angles, and integrated internal overflow.
- 1750 × 800 × 600 mm expansive deep-soaking interior
- Seamless one-piece thermoformed skirt eliminating joint crevices
- Stain-resistance Grade 5 surface with non-porous anti-yellowing acrylic
- Heavy-duty 304 stainless steel base support frame with adjustable leveling feet
- Model
- M-1750ZQ
- Dimensions
- 1750 × 800 × 600 mm
- Configuration
- Full-skirt bathtub
- Finish / color
- Confirm current finish options
Model overview
M-1750ZQ 1750mm Full-Skirt Seamless Bathtub Specifications
A 1750mm full-skirt freestanding acrylic soaking bathtub engineered with a seamless one-piece outer shroud, ergonomic 120° backrest angles, and integrated internal overflow.
Standard choice for 5-star hotel master suites, luxury condominiums, and wellness spa developments. If a matte-white finish is required for stone-look coordination, choose M-1753ZQ.
B2B Project Fit & Sourcing Guidance
Confirm M-1750ZQ for your market Standard choice for 5-star hotel master suites, luxury condominiums, and wellness spa developments.
Alternative selection: If a matte-white finish is required for stone-look coordination, choose M-1753ZQ.
Technical specifications
Engineering Data & Sourcing Specifications for M-1750ZQ
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- M-1750ZQ
- Product type
- Acrylic Skirted Bathtub
- Dimensions
- 1750 × 800 × 600 mm
- Installation / Outlet
- Full-skirt bathtub
- Finish / Color
- Confirm current finish options
- Product family
- Bathtubs
- Flushing Technology
- Center bottom pop-up waste with integrated overflow channel
- Trapway & Waste Path
- 50 mm flexible drain pipe included
- Water Seal Depth
- 430 mm soaking depth / 260 L capacity
- Container Loading (40HQ)
- ~55 pcs / 40HQ container
- OEM / Customization Scope
- Gloss white vs matte white finish, private brand badge, customized shipping crate marks
Bathtub project checklist
What buyers should confirm for M-1750ZQ
Account for room dimensions, installation format, drainage and faucet coordination.Central waste alignment
Matches floor-mounted freestanding bath filler M-6145F or wall-mount spouts.
Floor weight loading
Water capacity approx. 260 L; check floor slab loading capacity under full load.
Export wooden crate packaging
Heavy-duty honeycomb box with wooden base skid; ~55 units / 40HQ container.
Category engineering
Bathtub Manufacturing Advantages
MICAWA acrylic bathtubs combine thick thermoformed sheet, a five-layer reinforced structure, verified heat and stain resistance and ergonomic soaking dimensions.Thick acrylic surface
The acrylic sheet thickness is at least 4.2 mm, with Barcol hardness of at least 40.
High-temperature stability
After two hours of continuous exposure to 95°C water, the surface shows no deformation, blistering or whitening.
One-piece thermoforming
The visible acrylic shell is formed as one piece without a post-process sprayed paint finish.
Low-emission easy-care material
The surface reaches stain-resistance Grade 5, contains no phthalate plasticisers and supports low VOC emissions.
Five-layer reinforced construction
The composite one-piece structure improves heat retention by 32%.
Stable and slip-conscious base
The bathtub floor has a slip coefficient of at least 0.65, while the support frame carries at least 300 kg.
Ergonomic soaking position
A 120° biomimetic backrest is paired with a standard soaking depth of 430 mm.
Flexible installation range
The range covers freestanding, built-in and single-, double- or three-sided skirt configurations.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model M-1750ZQ against the current technical sheet and quotation.
Packaging & delivery
Packing checks for M-1750ZQ
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Surface, rim and frame protection
- Waste and accessory pack list
- Wooden-frame or carton requirement
- Loading and handling plan
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model M-1750ZQ, including available detail imagery and video material.Model inquiry
Request the current specification and quote for M-1750ZQ
Share your installation format, room and access dimensions, waste position, faucet configuration, target market and quantity. MICAWA will review the request against the current M-1750ZQ technical information and available supply configuration.Continue exploring
Compare bathtubs and coordinated filling options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
M-6145F Freestanding Bathtub Faucet
Confirm with current technical sheet Floor-mounted bathtub faucet
View productBathtubs FAQ
Questions to confirm for M-1750ZQ
Use the current product sheet and approved quotation as the final reference for this model.Which installation format applies to M-1750ZQ?
Request the current M-1750ZQ drawing and confirm freestanding, skirted, built-in or massage configuration and service access.
Which room and plumbing dimensions are needed for M-1750ZQ?
Share access dimensions, installation clearance, waste position, overflow requirements and the room plan.
How should a faucet be coordinated with M-1750ZQ?
Confirm whether the bath filler is floor-, deck- or wall-mounted and check its position against the bathtub drawing.
