Freestanding room clearance
Requires minimum 100 mm peripheral clearance around curved perimeter for cleaning.
Bathtubs

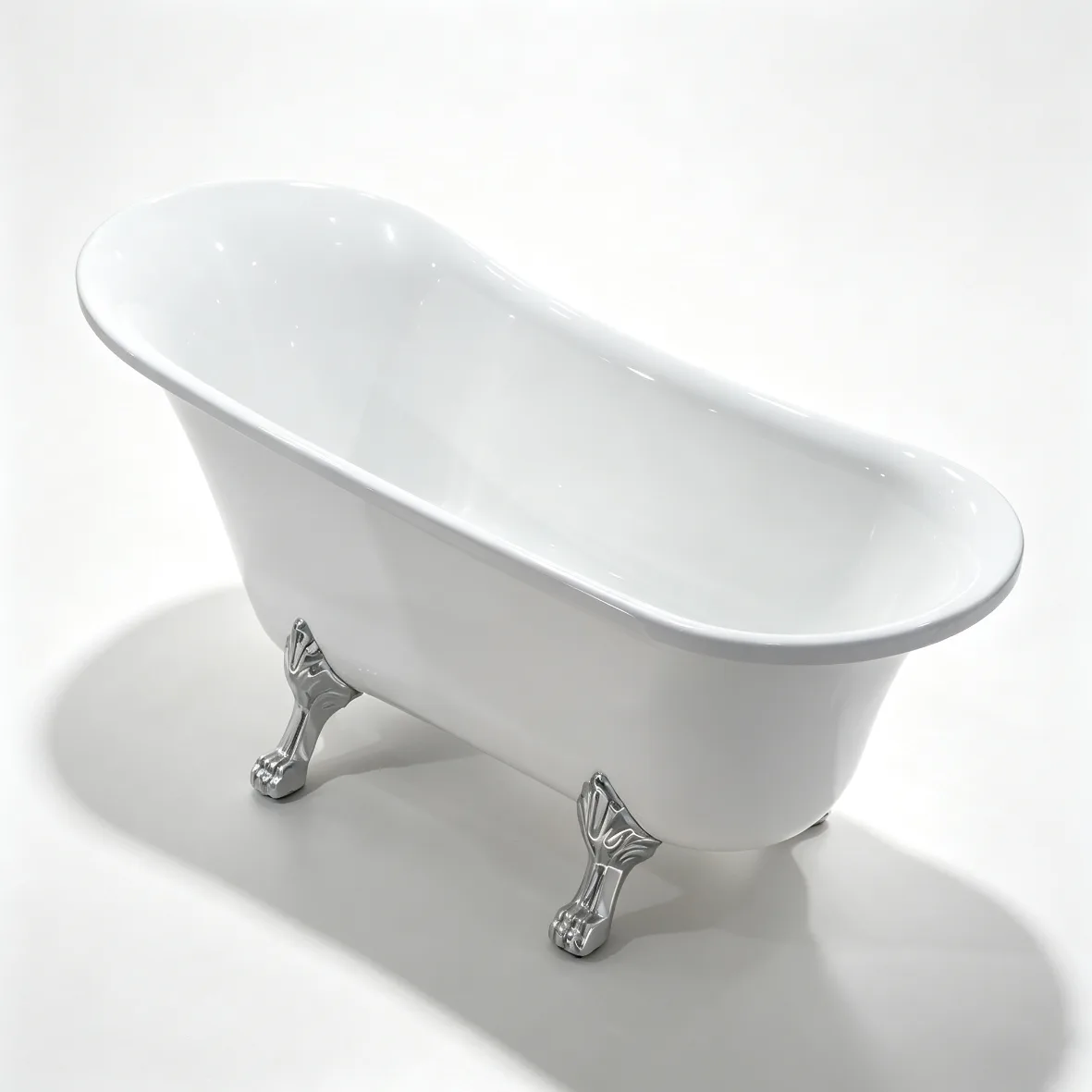

M-1609ZQ Freestanding Bathtub
A 1600mm classical freestanding acrylic bathtub featuring an ergonomic raised chaise backrest, decorative alloy claw feet, and a 5-layer fiberglass reinforced core for boutique hospitality projects.
- 1600 × 700 × 800 mm ergonomic high-back chaise silhouette
- ≥4.2mm sanitary-grade pure acrylic sheet with Barcol hardness ≥40
- Solid metal decorative claw feet load-tested to exceed 300 kg capacity
- Five-layer reinforced composite construction improving heat retention by 32%
- Model
- M-1609ZQ
- Dimensions
- 1600 × 700 × 800 mm
- Configuration
- Chaise-style bathtub
- Finish / color
- Confirm current finish options
Model overview
M-1609ZQ 1600mm Classical Chaise Bathtub Specifications
A 1600mm classical freestanding acrylic bathtub featuring an ergonomic raised chaise backrest, decorative alloy claw feet, and a 5-layer fiberglass reinforced core for boutique hospitality projects.
Specified for luxury heritage hotels, romantic resort villas, and French/classical master ensuites. For modern minimalist architecture with flat skirted lines, review M-1750ZQ or M-1753ZQ.
B2B Project Fit & Sourcing Guidance
Confirm M-1609ZQ for your market Specified for luxury heritage hotels, romantic resort villas, and French/classical master ensuites.
Alternative selection: For modern minimalist architecture with flat skirted lines, review M-1750ZQ or M-1753ZQ.
Technical specifications
Engineering Data & Sourcing Specifications for M-1609ZQ
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- M-1609ZQ
- Product type
- Freestanding Bathtub
- Dimensions
- 1600 × 700 × 800 mm
- Installation / Outlet
- Chaise-style bathtub
- Finish / Color
- Confirm current finish options
- Product family
- Bathtubs
- Flushing Technology
- Integrated waste & overflow drainage (standard 50 mm outlet)
- Trapway & Waste Path
- Subfloor flexible connection hose 40/50 mm
- Water Seal Depth
- 430 mm deep soaking water depth
- Container Loading (40HQ)
- ~48 pcs / 40HQ container (wood crated)
- OEM / Customization Scope
- Exterior acrylic paint color (White/Black/Navy), claw foot plating finish, hotel logo decal
Bathtub project checklist
What buyers should confirm for M-1609ZQ
Account for room dimensions, installation format, drainage and faucet coordination.Drain & overflow plumbing
Fitted with flexible brass pop-up waste coupling to subfloor trap.

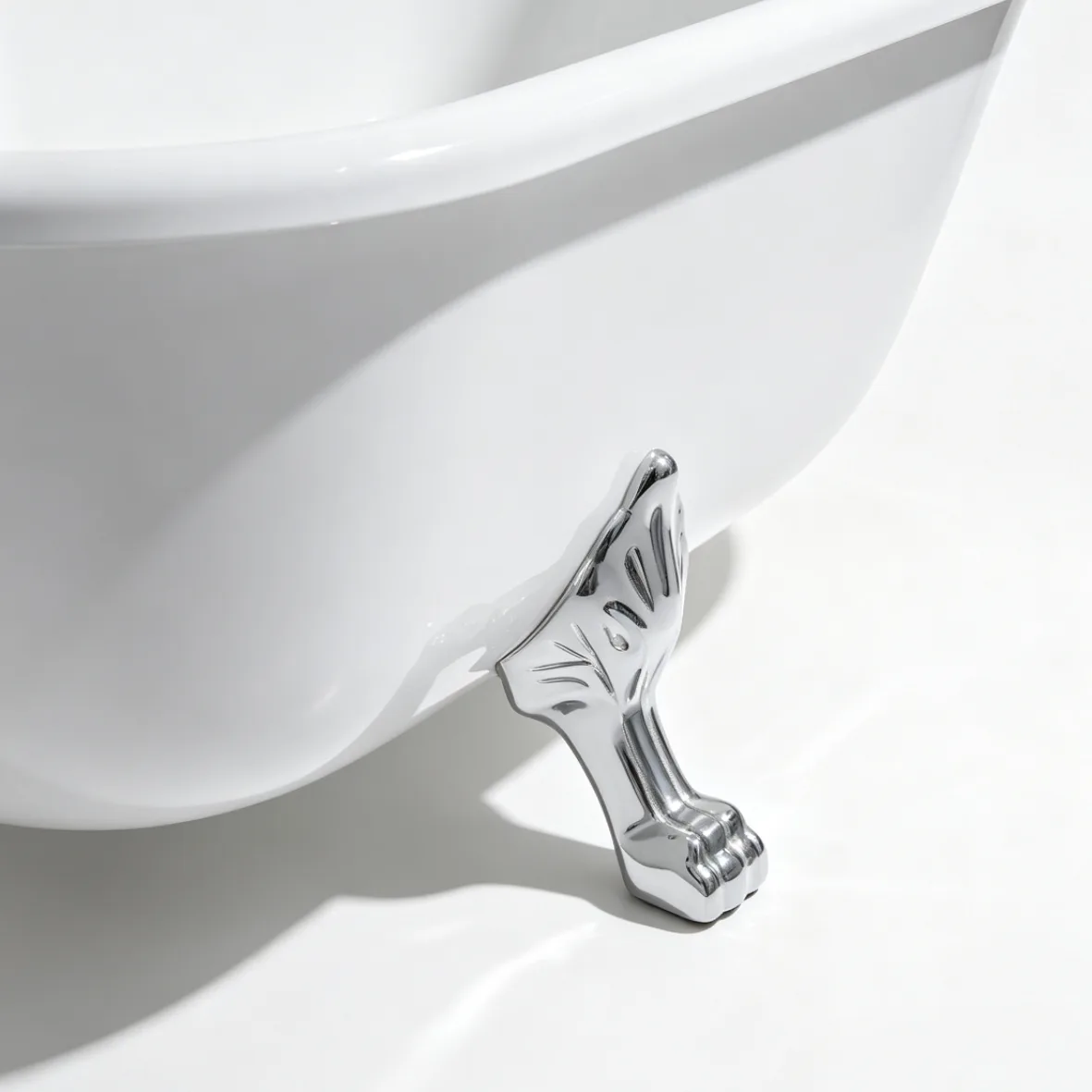

Claw foot finish matching
Claw feet available in Polished Chrome, Brushed Gold, or Matte Black finishes.
Heavy crate transit pack
Packed in reinforced wooden crate frame with corner shock absorbers; ~48 units / 40HQ.
Category engineering
Bathtub Manufacturing Advantages
MICAWA acrylic bathtubs combine thick thermoformed sheet, a five-layer reinforced structure, verified heat and stain resistance and ergonomic soaking dimensions.Thick acrylic surface
The acrylic sheet thickness is at least 4.2 mm, with Barcol hardness of at least 40.
High-temperature stability
After two hours of continuous exposure to 95°C water, the surface shows no deformation, blistering or whitening.
One-piece thermoforming
The visible acrylic shell is formed as one piece without a post-process sprayed paint finish.
Low-emission easy-care material
The surface reaches stain-resistance Grade 5, contains no phthalate plasticisers and supports low VOC emissions.
Five-layer reinforced construction
The composite one-piece structure improves heat retention by 32%.
Stable and slip-conscious base
The bathtub floor has a slip coefficient of at least 0.65, while the support frame carries at least 300 kg.
Ergonomic soaking position
A 120° biomimetic backrest is paired with a standard soaking depth of 430 mm.
Flexible installation range
The range covers freestanding, built-in and single-, double- or three-sided skirt configurations.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model M-1609ZQ against the current technical sheet and quotation.
Packaging & delivery
Packing checks for M-1609ZQ
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Surface, rim and frame protection
- Waste and accessory pack list
- Wooden-frame or carton requirement
- Loading and handling plan
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model M-1609ZQ, including available detail imagery and video material.Model inquiry
Request the current specification and quote for M-1609ZQ
Share your installation format, room and access dimensions, waste position, faucet configuration, target market and quantity. MICAWA will review the request against the current M-1609ZQ technical information and available supply configuration.Continue exploring
Compare bathtubs and coordinated filling options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Bathtubs FAQ
Questions to confirm for M-1609ZQ
Use the current product sheet and approved quotation as the final reference for this model.Which installation format applies to M-1609ZQ?
Request the current M-1609ZQ drawing and confirm freestanding, skirted, built-in or massage configuration and service access.
Which room and plumbing dimensions are needed for M-1609ZQ?
Share access dimensions, installation clearance, waste position, overflow requirements and the room plan.
How should a faucet be coordinated with M-1609ZQ?
Confirm whether the bath filler is floor-, deck- or wall-mounted and check its position against the bathtub drawing.
