Left vs right hand apron
Confirm whether jobsite requires left-corner or right-corner double-skirt exposure.
Bathtubs

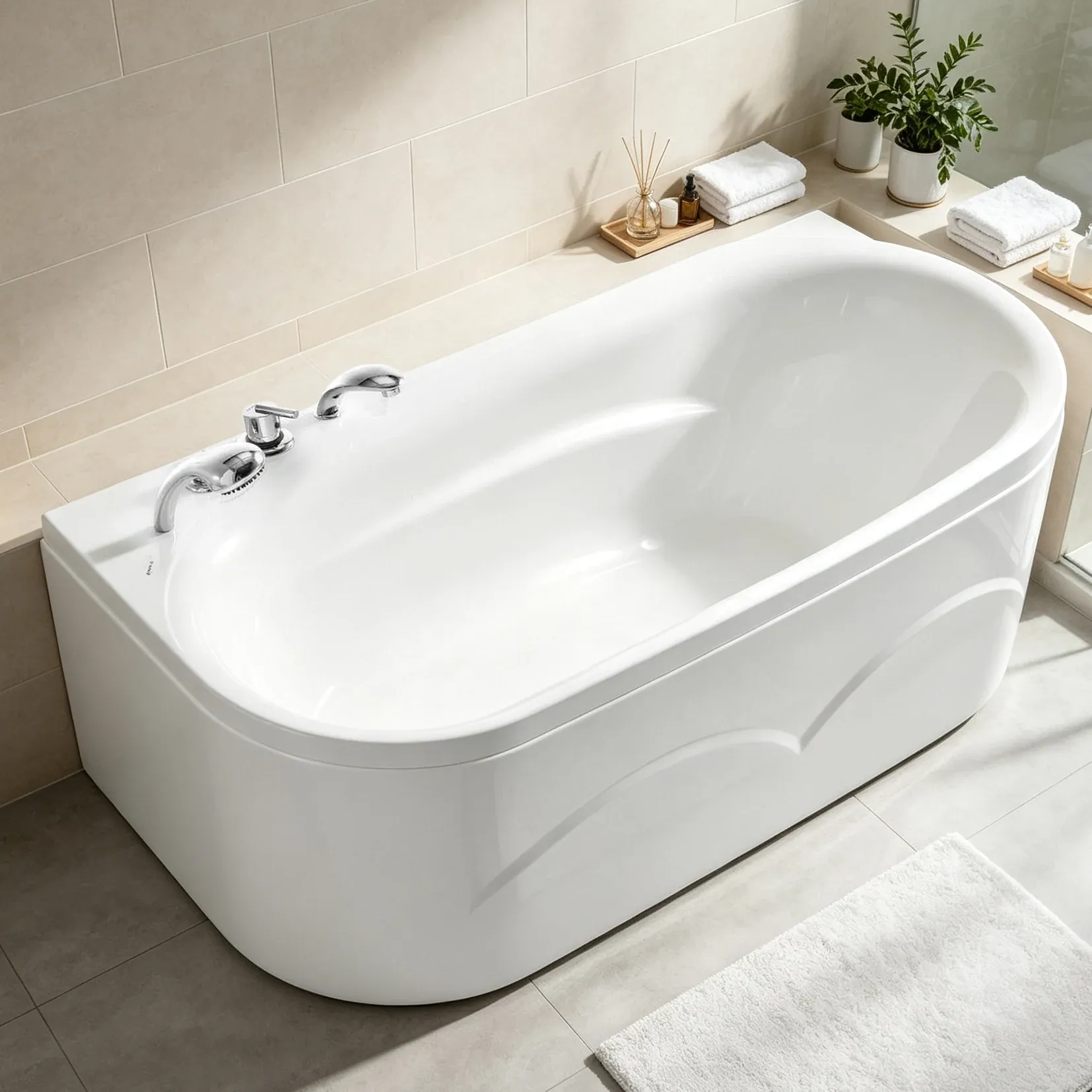

MJ-1728SQ Double-Skirt Bathtub
A generous 1710mm double-skirt acrylic bathtub engineered for alcove or corner installations, featuring pre-fitted waste fittings and a dual-side apron for right- or left-hand wall placement.
- 1710 × 850 × 660 mm generous deep-soaking dimensions
- Double-skirt apron design providing finished fascia on front and exposed end
- Structural galvanized steel support frame with adjustable leveling feet
- Thick thermoformed sanitary acrylic retaining water warmth during extended baths
- Model
- MJ-1728SQ
- Dimensions
- 1710 × 850 × 660 mm
- Configuration
- Double-skirt bathtub with fittings
- Finish / color
- Crystal white
Model overview
MJ-1728SQ 1710mm Double-Skirt Alcove Bathtub Specifications
A generous 1710mm double-skirt acrylic bathtub engineered for alcove or corner installations, featuring pre-fitted waste fittings and a dual-side apron for right- or left-hand wall placement.
Optimal for multi-unit apartment developments, master ensuites, and hotel room renovations. If a lower 590mm step-in rim height is required for accessible use, specify MJ-1785SQ.
B2B Project Fit & Sourcing Guidance
Confirm MJ-1728SQ for your market Optimal for multi-unit apartment developments, master ensuites, and hotel room renovations.
Alternative selection: If a lower 590mm step-in rim height is required for accessible use, specify MJ-1785SQ.
Technical specifications
Engineering Data & Sourcing Specifications for MJ-1728SQ
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MJ-1728SQ
- Product type
- Double-Skirt Bathtub
- Dimensions
- 1710 × 850 × 660 mm
- Installation / Outlet
- Double-skirt bathtub with fittings
- Finish / Color
- Crystal white
- Product family
- Bathtubs
- Flushing Technology
- Pre-assembled end waste with overflow link
- Trapway & Waste Path
- 50 mm flexible waste pipe
- Water Seal Depth
- 440 mm water immersion depth / 260 L capacity
- Container Loading (40HQ)
- ~50 pcs / 40HQ container
- OEM / Customization Scope
- Apron orientation (Left/Right), private label badging, project master shipping crates
Bathtub project checklist
What buyers should confirm for MJ-1728SQ
Account for room dimensions, installation format, drainage and faucet coordination.Wall tiling flange
Integrated tile bead prevents water seepage between tub rim and wall tiles.

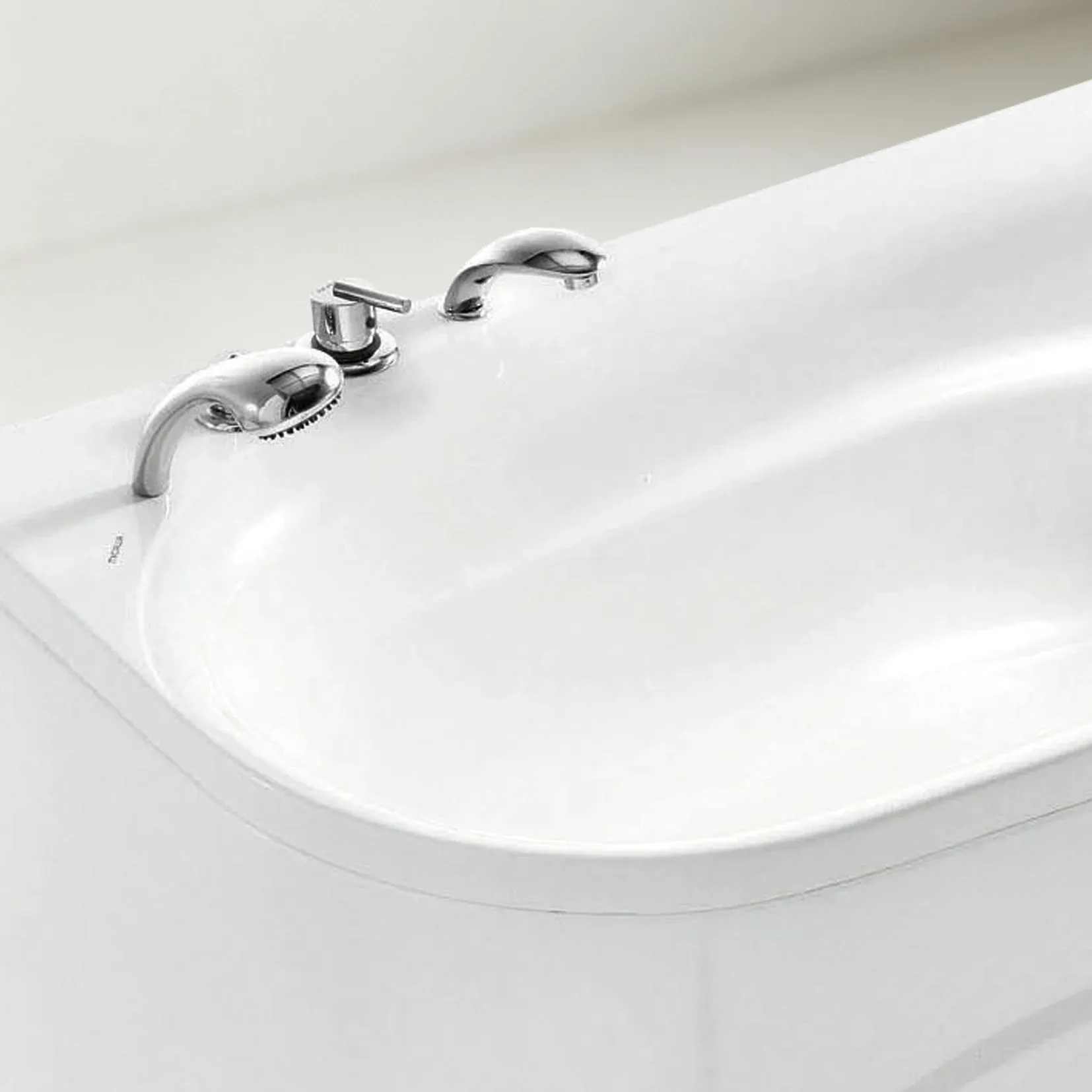

Pre-assembled waste set
Factory-fitted pop-up drain and overflow simplifies contractor installation time.
Container loading economy
Dense nested crating yields approx. 50 units per 40HQ container.
Category engineering
Bathtub Manufacturing Advantages
MICAWA acrylic bathtubs combine thick thermoformed sheet, a five-layer reinforced structure, verified heat and stain resistance and ergonomic soaking dimensions.Thick acrylic surface
The acrylic sheet thickness is at least 4.2 mm, with Barcol hardness of at least 40.
High-temperature stability
After two hours of continuous exposure to 95°C water, the surface shows no deformation, blistering or whitening.
One-piece thermoforming
The visible acrylic shell is formed as one piece without a post-process sprayed paint finish.
Low-emission easy-care material
The surface reaches stain-resistance Grade 5, contains no phthalate plasticisers and supports low VOC emissions.
Five-layer reinforced construction
The composite one-piece structure improves heat retention by 32%.
Stable and slip-conscious base
The bathtub floor has a slip coefficient of at least 0.65, while the support frame carries at least 300 kg.
Ergonomic soaking position
A 120° biomimetic backrest is paired with a standard soaking depth of 430 mm.
Flexible installation range
The range covers freestanding, built-in and single-, double- or three-sided skirt configurations.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MJ-1728SQ against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MJ-1728SQ
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Surface, rim and frame protection
- Waste and accessory pack list
- Wooden-frame or carton requirement
- Loading and handling plan
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MJ-1728SQ, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MJ-1728SQ
Share your installation format, room and access dimensions, waste position, faucet configuration, target market and quantity. MICAWA will review the request against the current MJ-1728SQ technical information and available supply configuration.Continue exploring
Compare bathtubs and coordinated filling options
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
MJ-1353ZQ Corner Full-Skirt Bathtub
1350 × 1350 × 600 mm Full-skirt corner bathtub with fittings
View product
Bathtubs FAQ
Questions to confirm for MJ-1728SQ
Use the current product sheet and approved quotation as the final reference for this model.Which installation format applies to MJ-1728SQ?
Request the current MJ-1728SQ drawing and confirm freestanding, skirted, built-in or massage configuration and service access.
Which room and plumbing dimensions are needed for MJ-1728SQ?
Share access dimensions, installation clearance, waste position, overflow requirements and the room plan.
How should a faucet be coordinated with MJ-1728SQ?
Confirm whether the bath filler is floor-, deck- or wall-mounted and check its position against the bathtub drawing.
