Which cabinet dimensions and installation details apply to MXD-298HF?

Request the current MXD-298HF drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.

How should the basin and countertop be specified for MXD-298HF?

Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.

Which finish, hardware and branding options can be reviewed for MXD-298HF?

Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.

Bathroom Vanities

MXD-298HF Bathroom Vanity Cabinet

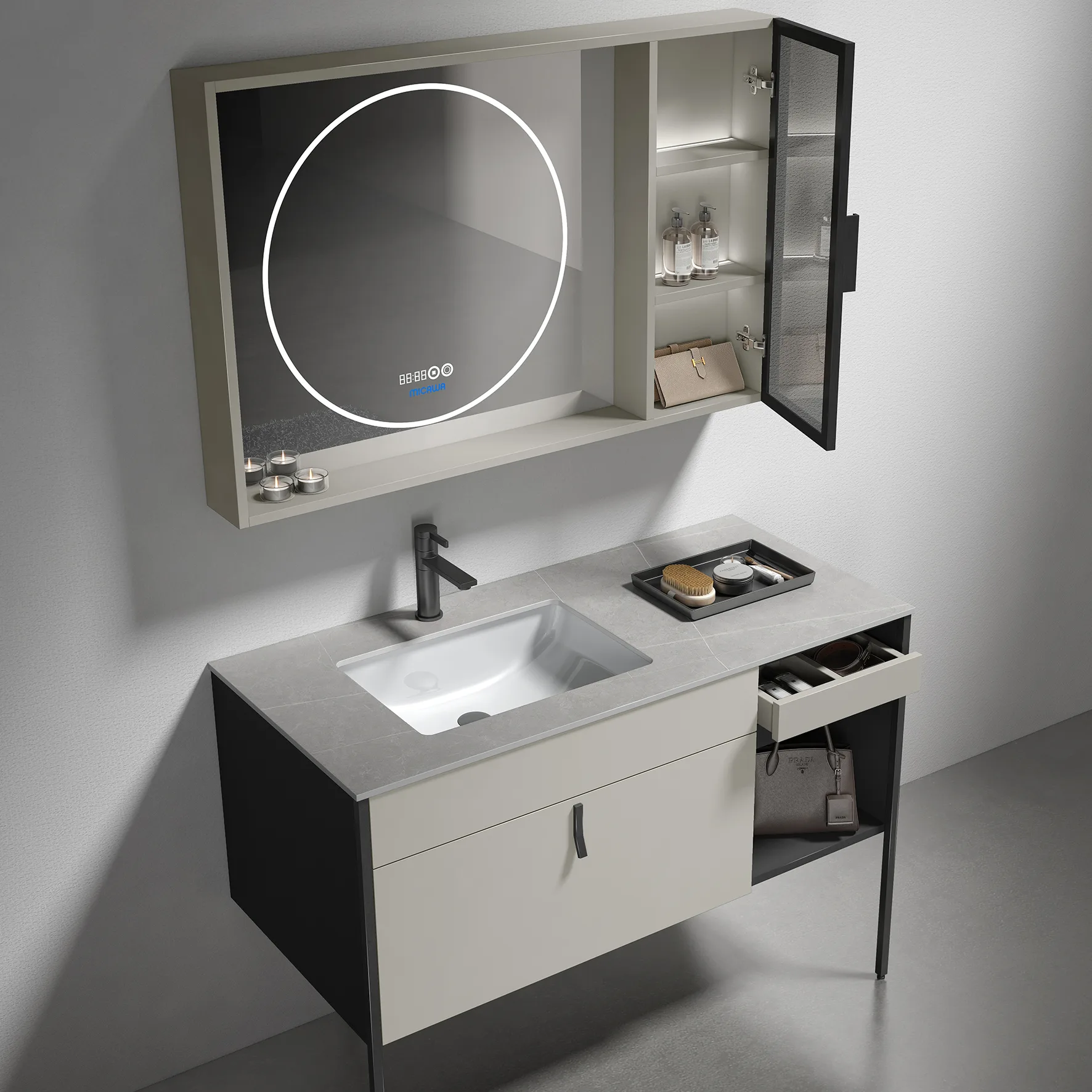

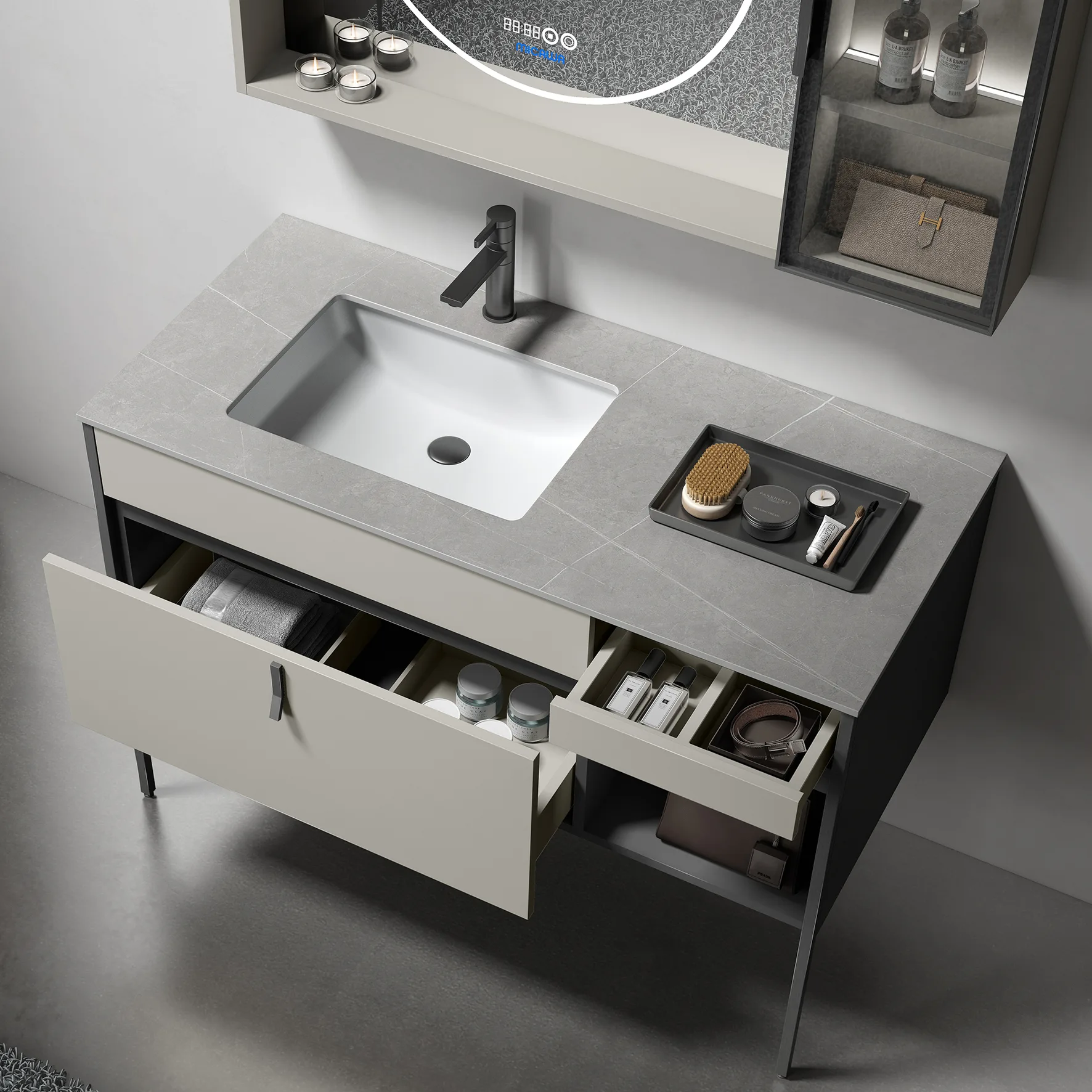

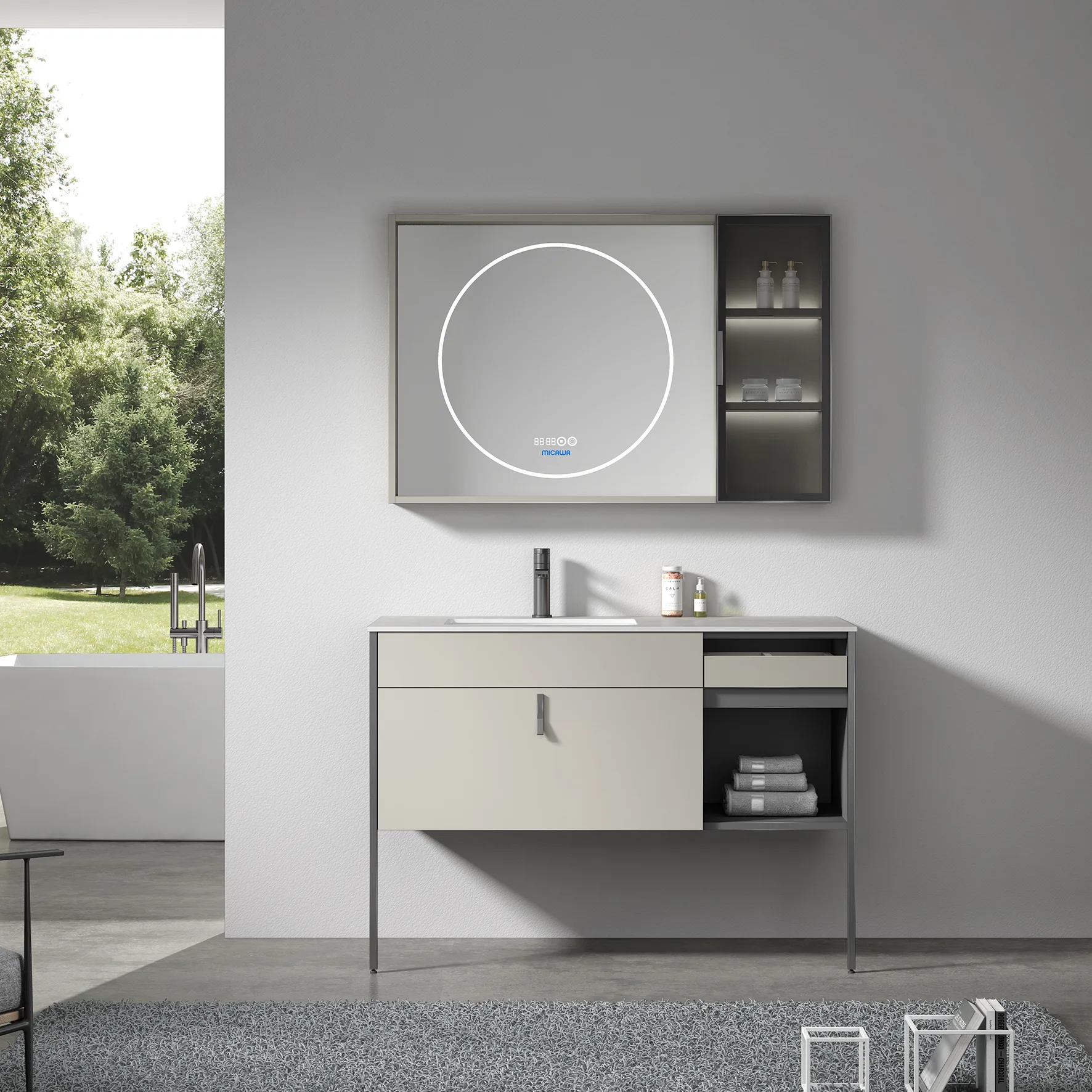

A robust 1200mm floor-standing bathroom vanity console with Casio-grey sintered-stone countertop, spacious bottom drawer storage, open tinted-glass display shelf, and an 1150×750mm dual-key smart mirror cabinet.

1200 × 560 × 815 mm floor-standing solid construction
Casio-grey sintered-stone top with easy-clean undermount ceramic basin
1150 × 750 mm dual-key touch-control illuminated mirror cabinet
Mocha-grey ecological board with waterproof edge seals and metal base legs

Model: MXD-298HF
Dimensions: 1200 × 560 × 815 mm
Configuration: Mirror cabinet · ecological board
Finish / color: Marsh grey

Request MXD-298HF Information

Model overview

MXD-298HF 1200mm Floor-Standing Heavy-Duty Vanity Specifications

Ideal for hotel renovations and residential retrofits where lightweight partition walls cannot support heavy floating vanities. For floating wall-hung styling with identical 1200mm width, review MMY-1200SW or MZS-80SW.

B2B Project Fit & Sourcing Guidance

Ideal for hotel renovations and residential retrofits where lightweight partition walls cannot support heavy floating vanities.

Alternative selection: For floating wall-hung styling with identical 1200mm width, review MMY-1200SW or MZS-80SW.

Confirm MXD-298HF for your market

Technical specifications

Engineering Data & Sourcing Specifications for MXD-298HF

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: MXD-298HF
Product type: Bathroom Vanity Cabinet
Dimensions: 1200 × 560 × 815 mm
Installation / Outlet: Mirror cabinet · ecological board
Finish / Color: Marsh grey
Product family: Bathroom Vanities
Flushing Technology: Integrated ceramic basin gravity drain with overflow
Trapway & Waste Path: Rear internal plumbing cavity depth 100 mm
Water Seal Depth: Moisture-resistant ecological board core
Container Loading (40HQ): ~135 sets / 40HQ container
OEM / Customization Scope: Cabinet color finishes (Mocha/Grey/Oak), custom hardware finishes, project bulk packaging

Bathroom vanity configuration checklist

What buyers should confirm for MXD-298HF

Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.

No wall load-bearing required

Floor-standing metal subframe carries all deadweight, simplifying light-stud installations.

Finished floor leveling

Adjustable leveling glides compensate for minor tile slope (±10 mm adjustment).

Floor vs wall drain clearance

Accommodates both through-floor S-trap and in-wall P-trap plumbing layouts.

Container loading economy

Sturdy nesting crate geometry accommodates approx. 135 sets per 40HQ.

Category engineering

Bathroom Vanity Manufacturing Advantages

MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.

E0 antibacterial multilayer board

18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.

Fully sealed cabinet edges

High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.

Nine-stage painted finish

PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.

Tested soft-close hinges

Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.

Heavy-duty concealed runners

Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.

Clear smart-mirror system

High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.

Modular beauty storage

Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.

Multiple countertop systems

Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.

Project-level customisation

Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MXD-298HF against the current technical sheet and quotation.

Packaging & delivery

Packing checks for MXD-298HF

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Cabinet, basin and mirror protection
Hardware and accessory pack list
Brand labels and shipping marks
Room or model-based delivery sequence

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model MXD-298HF, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for MXD-298HF

Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MXD-298HF technical information and available supply configuration.

Inquire about MXD-298HF

Name Email

Mobile / WhatsApp

Company Name Message
