Finished opening dimensions
Measure wall-to-wall dimension after tile installation to ensure precise track sizing.
Shower Screens

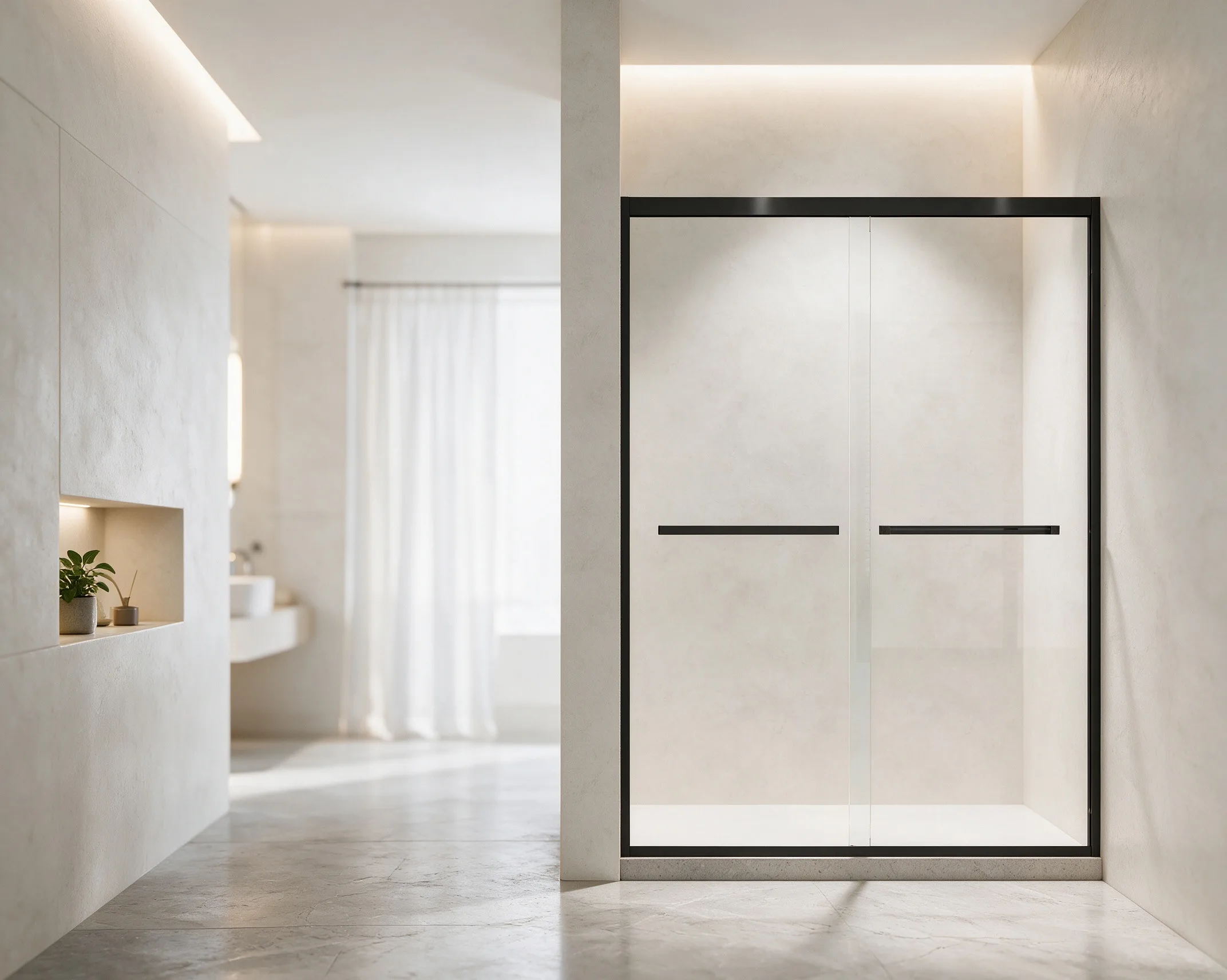

MPF-030 Double Sliding Shower Screen
A straight-line double-sliding shower enclosure engineered with automotive-grade 8mm/10mm tempered safety glass, smooth stainless steel bearing rollers, and magnetic water barrier seals.
- Custom linear widths and heights available for non-standard project dimensions
- Automotive-grade 8mm float tempered glass with 3C and CE safety certification
- Heavy-duty 304 stainless steel bearing rollers tested to 50,000 quiet cycles (≤45 dB)
- High-elasticity EVM magnetic sealing strips with double-layer U-shaped barrier
- Model
- MPF-030
- Dimensions
- Non-standard sizing available
- Configuration
- Straight-line double sliding door
- Finish / color
- Mirror / black / gunmetal / brushed gold
Model overview
MPF-030 Linear Double-Sliding Shower Enclosure Specifications
A straight-line double-sliding shower enclosure engineered with automotive-grade 8mm/10mm tempered safety glass, smooth stainless steel bearing rollers, and magnetic water barrier seals.
Specified for 4- and 5-star hotel wet-and-dry bathrooms, luxury condominium master showers, and modern apartments. For 90-degree corner bathrooms requiring a diamond footprint, review MPF-034.
B2B Project Fit & Sourcing Guidance
Confirm MPF-030 for your market Specified for 4- and 5-star hotel wet-and-dry bathrooms, luxury condominium master showers, and modern apartments.
Alternative selection: For 90-degree corner bathrooms requiring a diamond footprint, review MPF-034.
Technical specifications
Engineering Data & Sourcing Specifications for MPF-030
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MPF-030
- Product type
- Double Sliding Shower Screen
- Dimensions
- Non-standard sizing available
- Installation / Outlet
- Straight-line double sliding door
- Finish / Color
- Mirror / black / gunmetal / brushed gold
- Product family
- Shower Screens
- Flushing Technology
- Double-layer bottom magnetic barrier seal (zero floor leakage)
- Trapway & Waste Path
- Profile adjustment range ±15 mm for out-of-plumb walls
- Water Seal Depth
- Grade 10 rust-resistant 304 stainless steel hardware
- Container Loading (40HQ)
- ~220 sets / 40HQ container (wood crate)
- OEM / Customization Scope
- Glass thickness (8mm/10mm), custom laser etched logo on glass, hardware PVD finishes
Shower enclosure measurement checklist
What buyers should confirm for MPF-030
Accurate finished dimensions are required to define the door, glass and hardware configuration.Glass explosion-proof film
Optional factory-applied nano safety film retains glass fragments in event of impact.
Hardware finish matching
Profiles available in Mirror Chrome, Matte Black, Gunmetal Grey, or Brushed Gold.
Heavy glass crate transit
Fumigated solid wooden crates with corner impact protection; ~220 sets / 40HQ.
Category engineering
Shower Screen Manufacturing Advantages
MICAWA shower screens combine certified tempered safety glass, corrosion-tested framing, durable sliding or hinged hardware and custom dimensional support.Automotive-grade tempered glass
Standard 8 mm float tempered glass can be upgraded to 10 mm and is covered by China Compulsory Certification (3C).
Safer breakage characteristics
A 50 × 50 mm area produces at least 60 fragments, while polished corners use a radius of at least 3 mm to reduce edge risk.
Optional safety film
A nano safety and anti-explosion film can be specified for added breakage retention.
Impact verification
Glass assemblies pass an 18 kg steel-ball drop impact test.
Corrosion-resistant frames
Options include 1.2–1.8 mm food-grade 304 stainless steel with Grade 10 rust resistance after 48-hour neutral salt spray, or ≥95% pure aluminium with 13–14 HW hardness and ≥10 μm anodised film.
Durable quiet sliding system
Stainless-steel bearing rollers complete at least 50,000 cycles without sticking or abnormal noise, operate at no more than 45 dB and include anti-derailment and damping features.
Solid stainless-steel hinges
Hinges reach Grade 10 rust resistance after 48-hour salt spray and support opening angles up to 120°.
Age-resistant water sealing
High-elasticity EVM magnetic seals withstand temperatures from -20°C to 70°C and use a double-layer U-shaped water barrier.
Custom enclosure formats
Multiple shapes, heights and widths can be adjusted for non-standard project conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MPF-030 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MPF-030
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Glass edge and corner protection
- Hardware set identification
- Crate and shipping-mark requirements
- Handling and installation sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MPF-030, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MPF-030
Share your finished opening dimensions, door format and direction, glass thickness, hardware finish, quantity and project location. MICAWA will review the request against the current MPF-030 technical information and available supply configuration.Continue exploring
Compare shower enclosures and coordinated shower products
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
Shower Screens FAQ
Questions to confirm for MPF-030
Use the current product sheet and approved quotation as the final reference for this model.Which finished-opening measurements are needed for MPF-030?
Provide wall-to-wall dimensions, height and out-of-square conditions after wall and floor finishes are complete.
Which glass and hardware options should be confirmed for MPF-030?
Confirm glass thickness, safety treatment, frame material, hardware finish and door direction against the current drawing.
How should water sealing be reviewed for MPF-030?
Share tray or floor conditions, threshold details and splash-control expectations so seals and configuration can be checked.
