In-wall pipe centreline spacing
Supplied with eccentric S-unions accommodating 135 mm to 165 mm pipe centres.
Shower Faucets

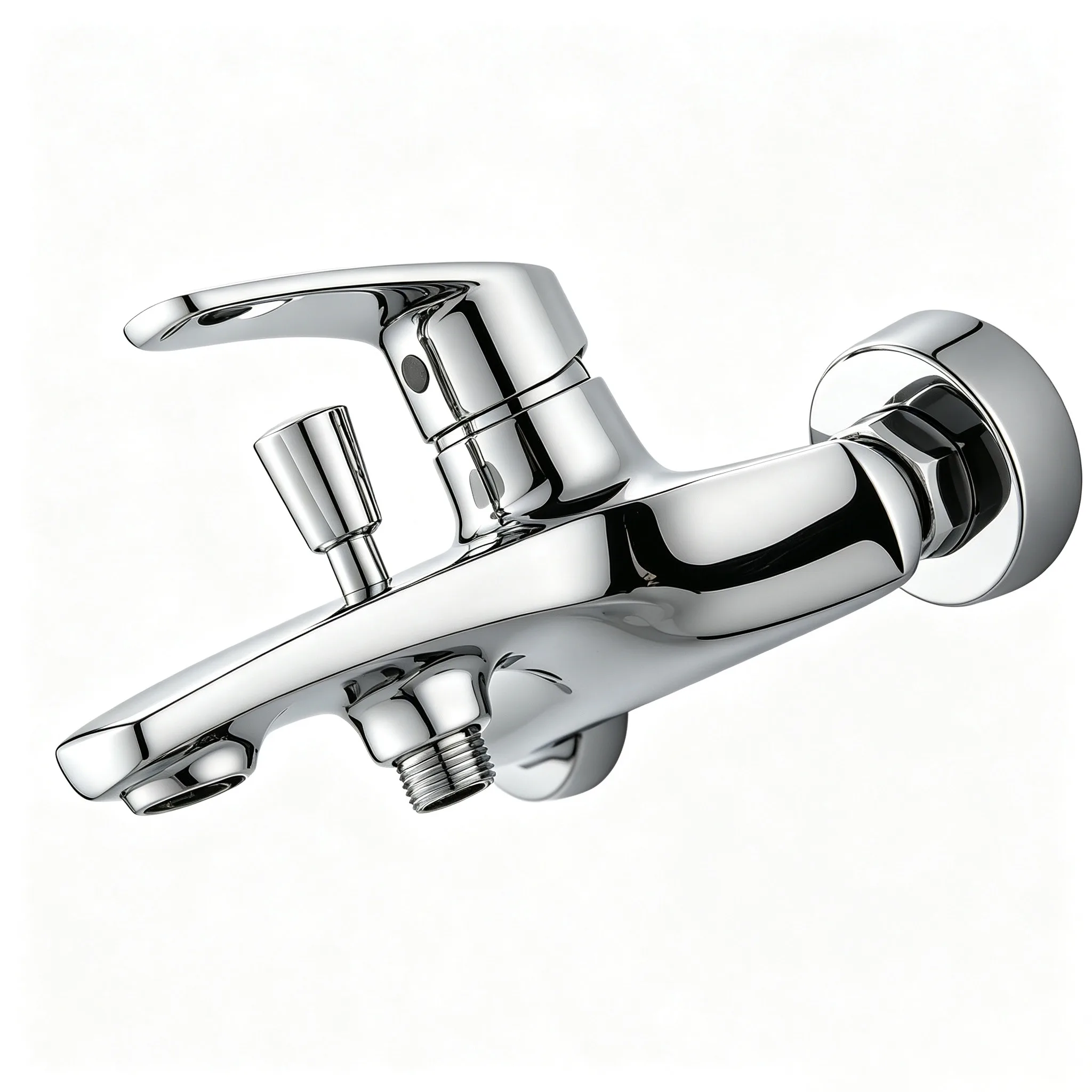

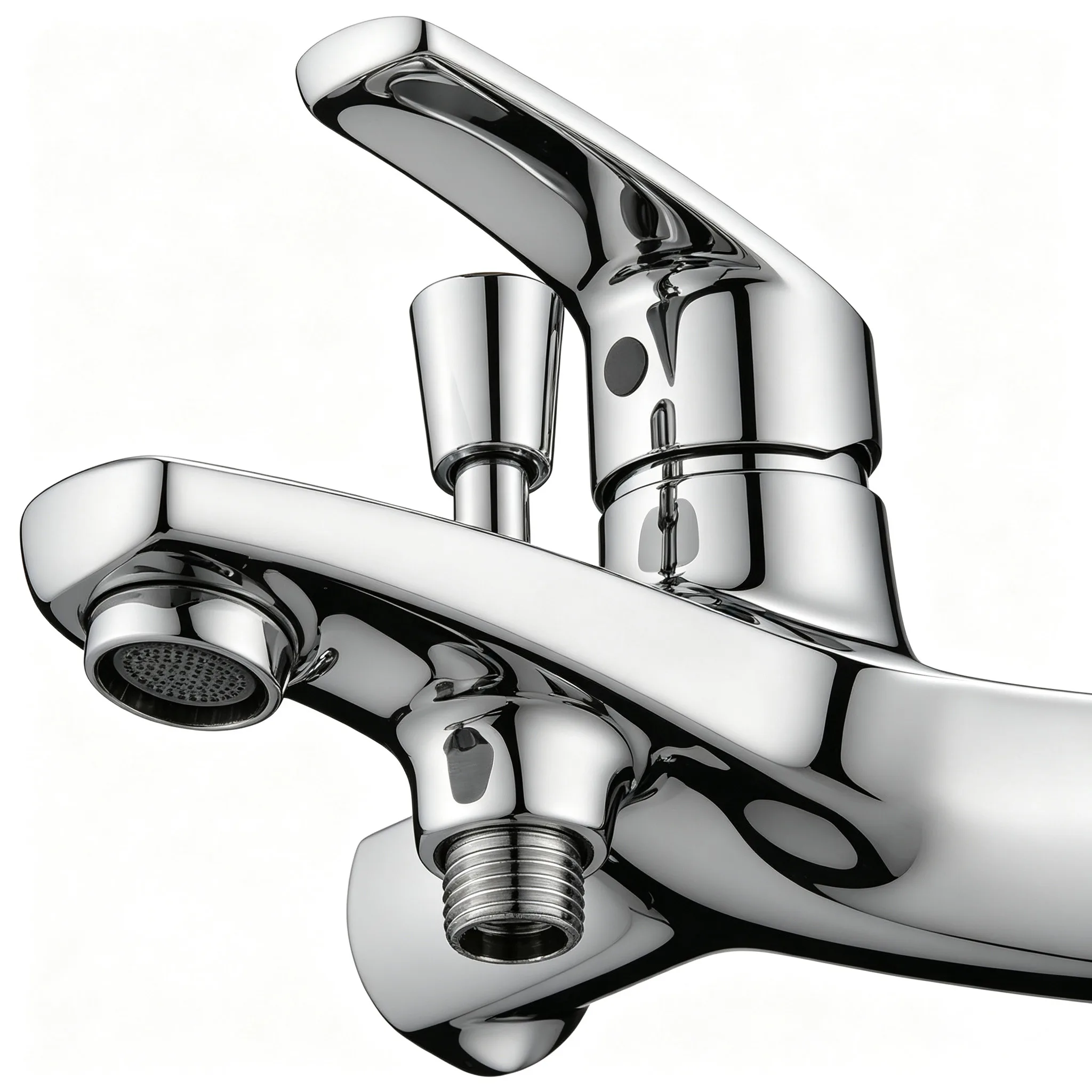

M-2208C Bathtub Faucet
A classic wall-mounted bathtub and shower mixer faucet featuring an integrated low-lead brass valve body, high-flow tub spout, and pull-up automatic return diverter mechanism.
- Exposed wall-mounted installation with standard 150 ± 15 mm S-union centres
- Solid low-lead brass valve body withstands 2.5 MPa static water pressure
- Ceramic disc cartridge tested to exceed 500,000 smooth cycle operations
- Multi-layer polished chrome finish rated Grade 10 under 24-hr neutral salt spray
- Model
- M-2208C
- Dimensions
- Confirm with current technical sheet
- Configuration
- Bathtub faucet
- Finish / color
- Chrome
Model overview
M-2208C Wall-Mounted Bath & Shower Mixer Specifications
A classic wall-mounted bathtub and shower mixer faucet featuring an integrated low-lead brass valve body, high-flow tub spout, and pull-up automatic return diverter mechanism.
Specified for alcove bathtub retrofits, hotel tub-shower combinations, and residential bathroom packages. If a dedicated overhead rainfall shower system with high-rise column is required, choose M-3652-1C.
B2B Project Fit & Sourcing Guidance
Confirm M-2208C for your market Specified for alcove bathtub retrofits, hotel tub-shower combinations, and residential bathroom packages.
Alternative selection: If a dedicated overhead rainfall shower system with high-rise column is required, choose M-3652-1C.
Technical specifications
Engineering Data & Sourcing Specifications for M-2208C
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- M-2208C
- Product type
- Bathtub Faucet
- Dimensions
- Confirm with current technical sheet
- Installation / Outlet
- Bathtub faucet
- Finish / Color
- Chrome
- Product family
- Shower Faucets
- Flushing Technology
- Dual-outlet bath filling + handheld shower diversion
- Trapway & Waste Path
- Standard G 1/2" eccentric S-union inlets
- Water Seal Depth
- 2.5 MPa burst-proof solid brass casting
- Container Loading (40HQ)
- ~1,200 pcs / 40HQ container
- OEM / Customization Scope
- Laser engraved brand logo, custom aerator flow rates, contract master carton
Shower system specification checklist
What buyers should confirm for M-2208C
Coordinate the installation wall, outlet functions and local water conditions before approval.Flow rate performance
Tub spout delivers ≥18 L/min at 0.3 MPa for rapid bathtub filling.
Hand shower pairing
Standard G 1/2" bottom hose outlet connects to included flexible shower hose.
High volume export loading
Individually boxed in padded display cartons; ~1,200 units / 40HQ container.
Category engineering
Shower System Manufacturing Advantages
MICAWA shower systems combine brass valve bodies, durable cartridges, corrosion-tested finishes, pressure verification and configurable overhead, hand-shower and auxiliary outlets.Integrated low-lead brass body
The valve body is cast as one piece and paired with a ceramic cartridge tested for at least 500,000 operating cycles.
Corrosion-resistant plating
Multi-layer plating reaches Grade 10 rust resistance after a 24-hour neutral salt-spray test.
Oxygen-enriched pressure boost
Water-and-air mixing can improve outlet performance by about 25% under low-water-pressure conditions.
Accurate thermostatic control
Thermostatic configurations control temperature within ±1°C and use a 38°C safety-lock starting point.
Easy-clean spray outlets
Silicone nozzles on overhead and hand showers allow scale to be cleared by hand, with multiple spray modes available.
Four-function configurations
Mainstream systems integrate an overhead shower, hand shower, lower outlet and cleaning spray gun.
Sealing pressure verification
Shower assemblies pass a 1.6 MPa sealing and pressure-hold test.
Adjustable installation dimensions
Typical overhead shower sizes are 250–320 mm, while riser height can be adjusted from 1,000 to 1,500 mm.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model M-2208C against the current technical sheet and quotation.
Packaging & delivery
Packing checks for M-2208C
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Valve and trim-set identification
- Hose, showerhead and accessory pack list
- Finish protection and shipping marks
- Rough-in and final-trim delivery needs
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model M-2208C, including available detail imagery and video material.Model inquiry
Request the current specification and quote for M-2208C
Share your exposed or concealed installation, outlet functions, water pressure, connection standard, finish, market and quantity. MICAWA will review the request against the current M-2208C technical information and available supply configuration.Continue exploring
Compare shower systems and matching faucet finishes
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
M-1118HW Single-Lever Swivel Faucet
Confirm with current technical sheet Single-lever swivel faucet
View product
Shower Systems FAQ
Questions to confirm for M-2208C
Use the current product sheet and approved quotation as the final reference for this model.Is M-2208C an exposed or concealed shower configuration?
Confirm the installation format, wall construction and valve-access requirements against the current M-2208C drawing.
Which outlet functions should be specified for M-2208C?
List overhead shower, hand shower, bath spout or auxiliary outlet needs and any thermostatic requirement.
Which water and connection details are needed for M-2208C?
Provide water pressure, hot-water system, connection standard, finish, target market and expected quantity.
