Main cabinet
790 × 490 × 450 mm, concealed bevelled handle; confirm mounting and plumbing clearances.
Bathroom Vanities
MXD-4725-8HW Bathroom Vanity Cabinet

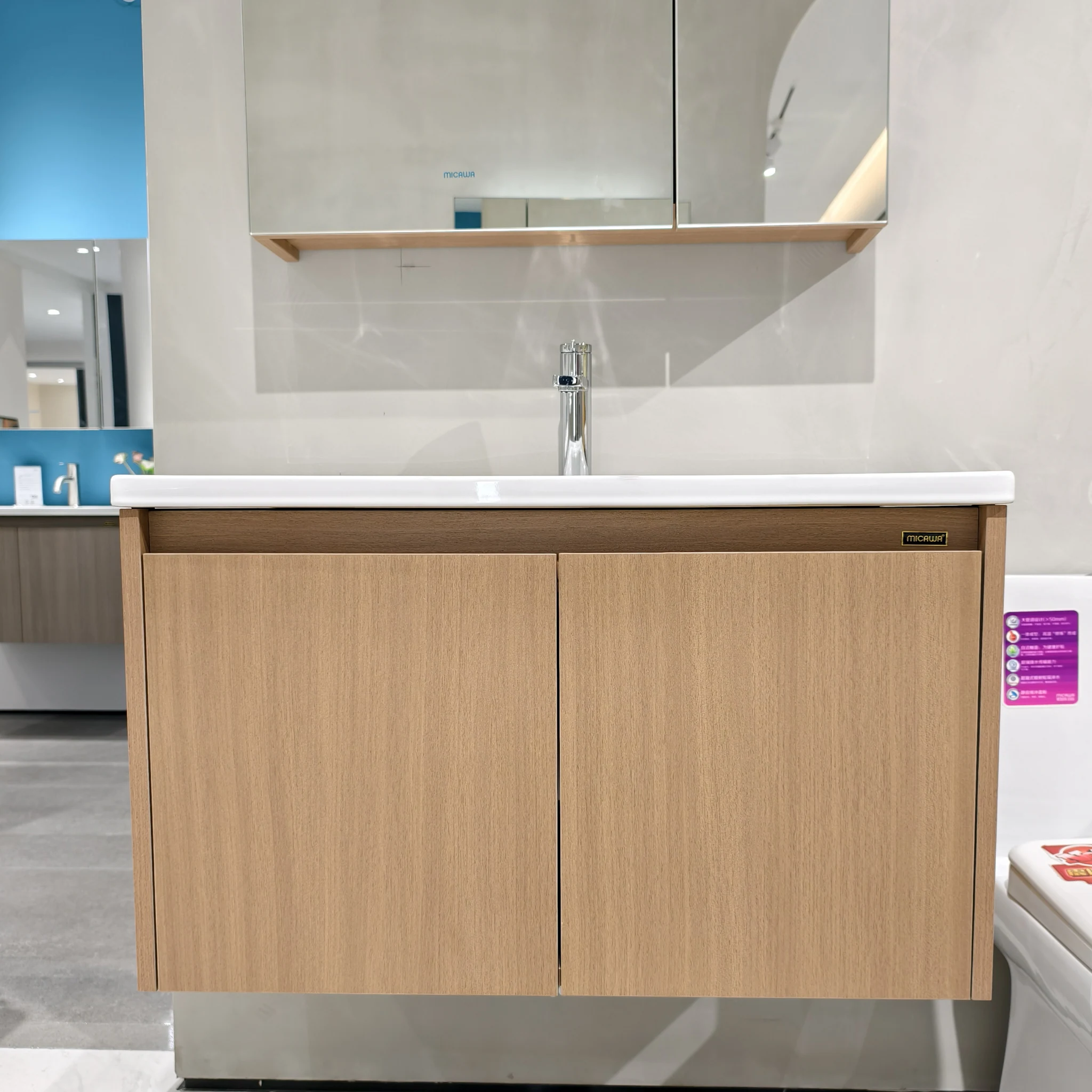

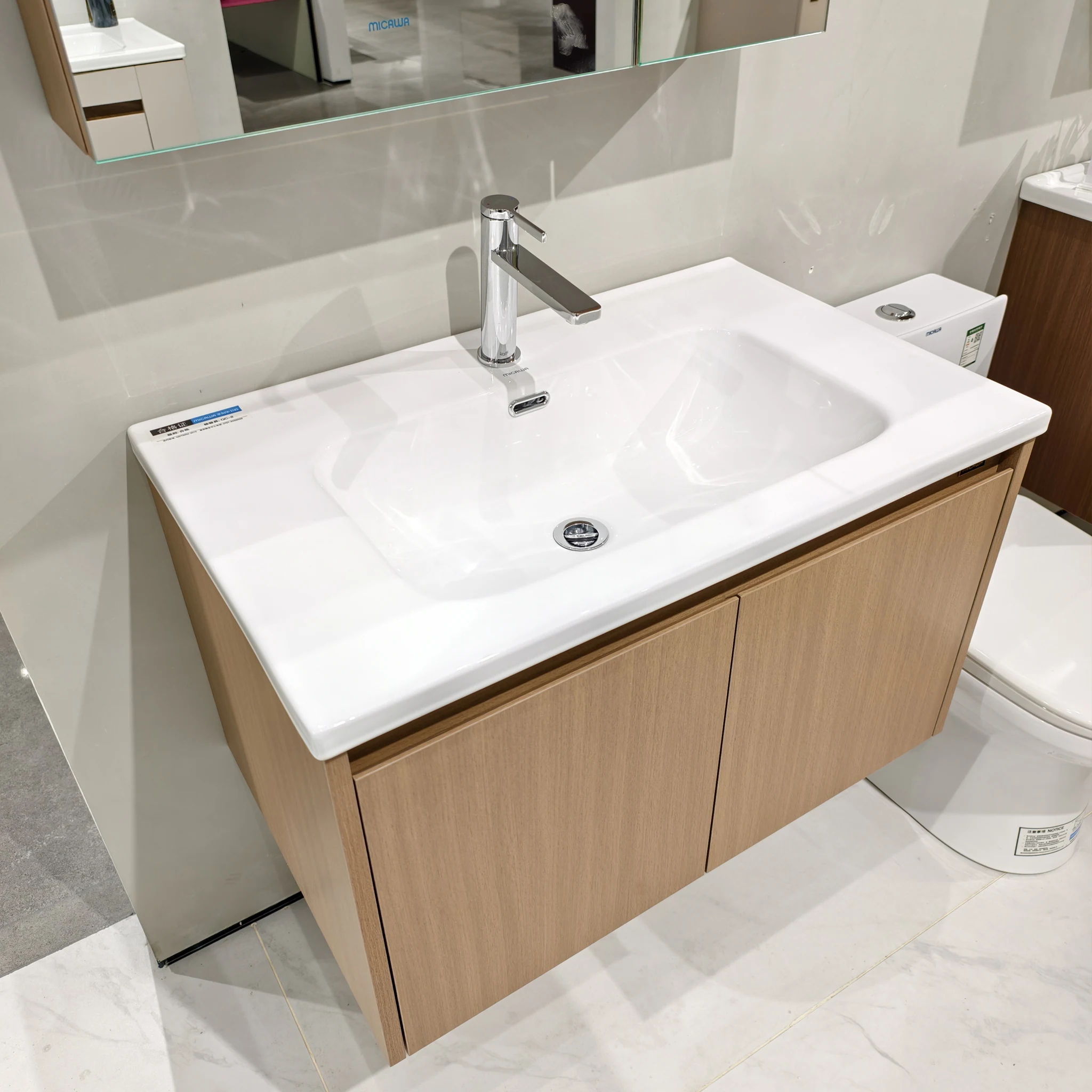

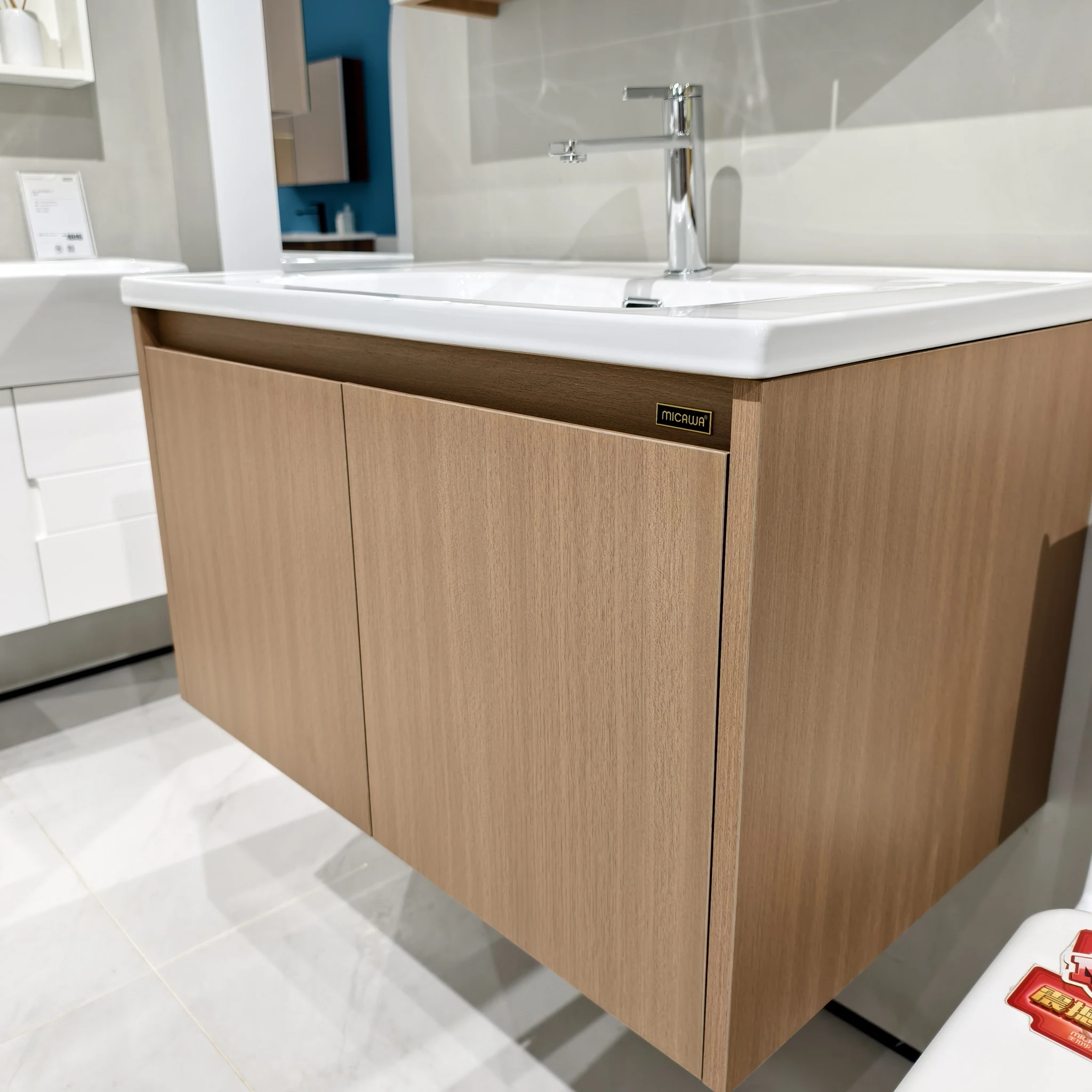

The MXD-4725-8HW includes a 790 × 490 × 450 mm main cabinet with a concealed bevelled handle, a 750 × 155 × 700 mm smart mirror cabinet with hand-wave-sensing side lights and an MP-4725-8 ceramic basin measuring 800 × 500 mm. The cabinet uses multi-layer solid wood ecological board in the 7952 oak-pattern finish, with a mirror, metal and stainless steel fittings.
- 790 × 490 × 450 mm cabinet with concealed bevelled handle
- 750 × 155 × 700 mm mirror cabinet with hand-wave-sensing side lights
- MP-4725-8 ceramic basin: 800 × 500 mm
- Multi-layer solid wood ecological board, finish code 7952
- Model
- MXD-4725-8HW
- Dimensions
- 790 × 490 × 450 mm main cabinet
- Configuration
- Concealed bevelled handle · gesture-sensing mirror · MP-4725-8 ceramic basin
- Finish / color
- 7952 oak-pattern ecological board
Model overview
MXD-4725-8HW Cabinet, Mirror and Ceramic Basin Specifications
The MXD-4725-8HW includes a 790 × 490 × 450 mm main cabinet with a concealed bevelled handle, a 750 × 155 × 700 mm smart mirror cabinet with hand-wave-sensing side lights and an MP-4725-8 ceramic basin measuring 800 × 500 mm. The cabinet uses multi-layer solid wood ecological board in the 7952 oak-pattern finish, with a mirror, metal and stainless steel fittings.
Consider this model for an 800 mm ceramic-basin brief with a concealed-handle cabinet and gesture-controlled mirror lighting. Compare MQF-4726-8HW for a beige-grey cabinet with an MP-4726-8 ceramic basin.
B2B Project Fit & Sourcing Guidance
Confirm MXD-4725-8HW for your market Consider this model for an 800 mm ceramic-basin brief with a concealed-handle cabinet and gesture-controlled mirror lighting.
Alternative selection: Compare MQF-4726-8HW for a beige-grey cabinet with an MP-4726-8 ceramic basin.
Technical specifications
Engineering Data & Sourcing Specifications for MXD-4725-8HW
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MXD-4725-8HW
- Product type
- Bathroom Vanity Cabinet
- Dimensions
- 790 × 490 × 450 mm main cabinet
- Installation / Outlet
- Concealed bevelled handle · gesture-sensing mirror · MP-4725-8 ceramic basin
- Finish / Color
- 7952 oak-pattern ecological board
- Product family
- Bathroom Vanities
Bathroom vanity configuration checklist
What buyers should confirm for MXD-4725-8HW
Approve bathroom furniture as a coordinated assembly rather than as an isolated cabinet.Mirror cabinet
750 × 155 × 700 mm, with hand-wave-sensing side lights; confirm electrical requirements.
Ceramic basin
MP-4725-8, 800 × 500 mm; confirm faucet and waste configuration.
Board and finish sample
Multi-layer solid wood ecological board in finish code 7952; approve the oak-pattern finish sample.
Category engineering
Bathroom Vanity Manufacturing Advantages
MICAWA bathroom vanities combine low-emission multilayer boards, sealed edges, durable coatings and tested soft-close hardware with modular smart-mirror and storage options.E0 antibacterial multilayer board
18 mm multilayer solid-wood board has formaldehyde emissions of no more than 0.015 mg/m³ and a 24-hour water-absorption swelling rate of no more than 1.5%.
Fully sealed cabinet edges
High-temperature EVA edge banding supports screw-holding force of at least 1,150 N and mould resistance rated Grade 1.
Nine-stage painted finish
PE primer and PU topcoat create an 80–120 μm film, with 500-hour UV ageing, colour difference below ΔE 2.0 and pencil hardness of at least 2H.
Tested soft-close hinges
Two-stage soft-close hinges complete at least 40,000 cycles without failure and reach Grade 9 rust resistance after a 24-hour acidic salt-spray test.
Heavy-duty concealed runners
Three-section concealed soft-close runners support at least 30 kg dynamic load and remain smooth and quiet through 40,000 cycles.
Clear smart-mirror system
High-definition float silver mirrors maintain undistorted imaging, with three lighting temperatures and graphene demisting that clears the mirror in about 30 seconds.
Modular beauty storage
Divided mirror-cabinet and drawer storage can improve mirror-cabinet space utilisation by about 50% compared with conventional layouts.
Multiple countertop systems
Options include integrated ceramic or sintered-stone basins, sintered-stone tops with undermount ceramic basins, natural marble and engineered stone.
Project-level customisation
Dimensions, materials and style can be adjusted, with optional washer-dryer integration, toothbrush sterilisation, beauty lighting and divided storage.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MXD-4725-8HW against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MXD-4725-8HW
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Cabinet, basin and mirror protection
- Hardware and accessory pack list
- Brand labels and shipping marks
- Room or model-based delivery sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MXD-4725-8HW, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MXD-4725-8HW
Share your cabinet dimensions, basin and countertop configuration, finish, hardware, quantity and destination. MICAWA will review the request against the current MXD-4725-8HW technical information and available supply configuration.Continue exploring
Compare bathroom vanity configurations
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
MXD-335-10SW Bathroom Vanity Cabinet
1000 × 500 × 520 mm Wooden-frame smart mirror · ceramic basin MP-4726-10
View productBathroom Cabinets FAQ
Questions to confirm for MXD-4725-8HW
Use the current product sheet and approved quotation as the final reference for this model.Which cabinet dimensions and installation details apply to MXD-4725-8HW?
Request the current MXD-4725-8HW drawing and confirm width, depth, height, wall or floor installation and plumbing clearance.
How should the basin and countertop be specified for MXD-4725-8HW?
Confirm basin format, countertop material, faucet holes and the relationship between the cabinet, basin and plumbing.
Which finish, hardware and branding options can be reviewed for MXD-4725-8HW?
Share finish direction, handles, hinges, runners, mirror, storage, private-label and packaging requirements for evaluation.
