Finished dimensions and door movement
Confirm the finished opening, height and T-shaped layout against an approved drawing before ordering.
Shower Screens

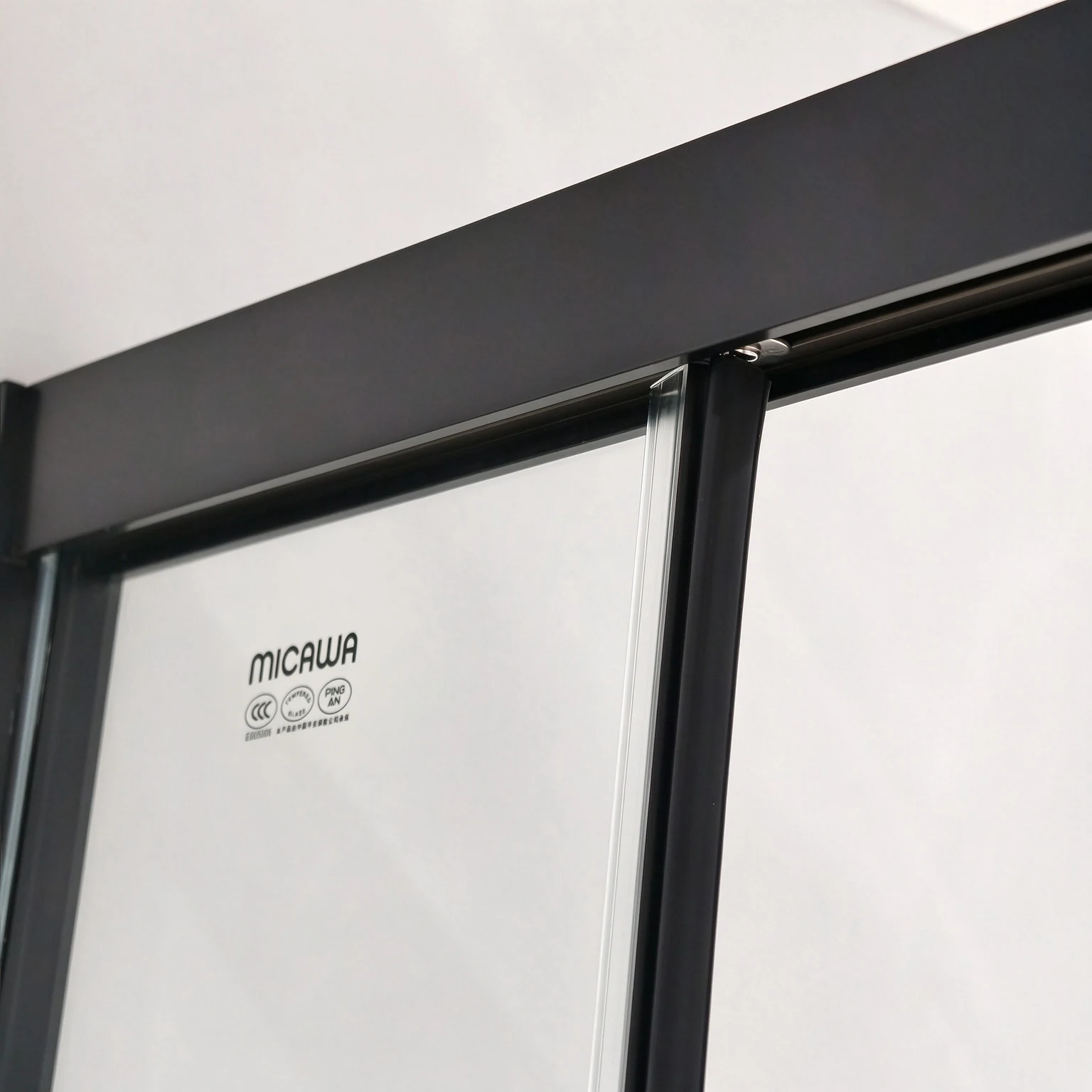

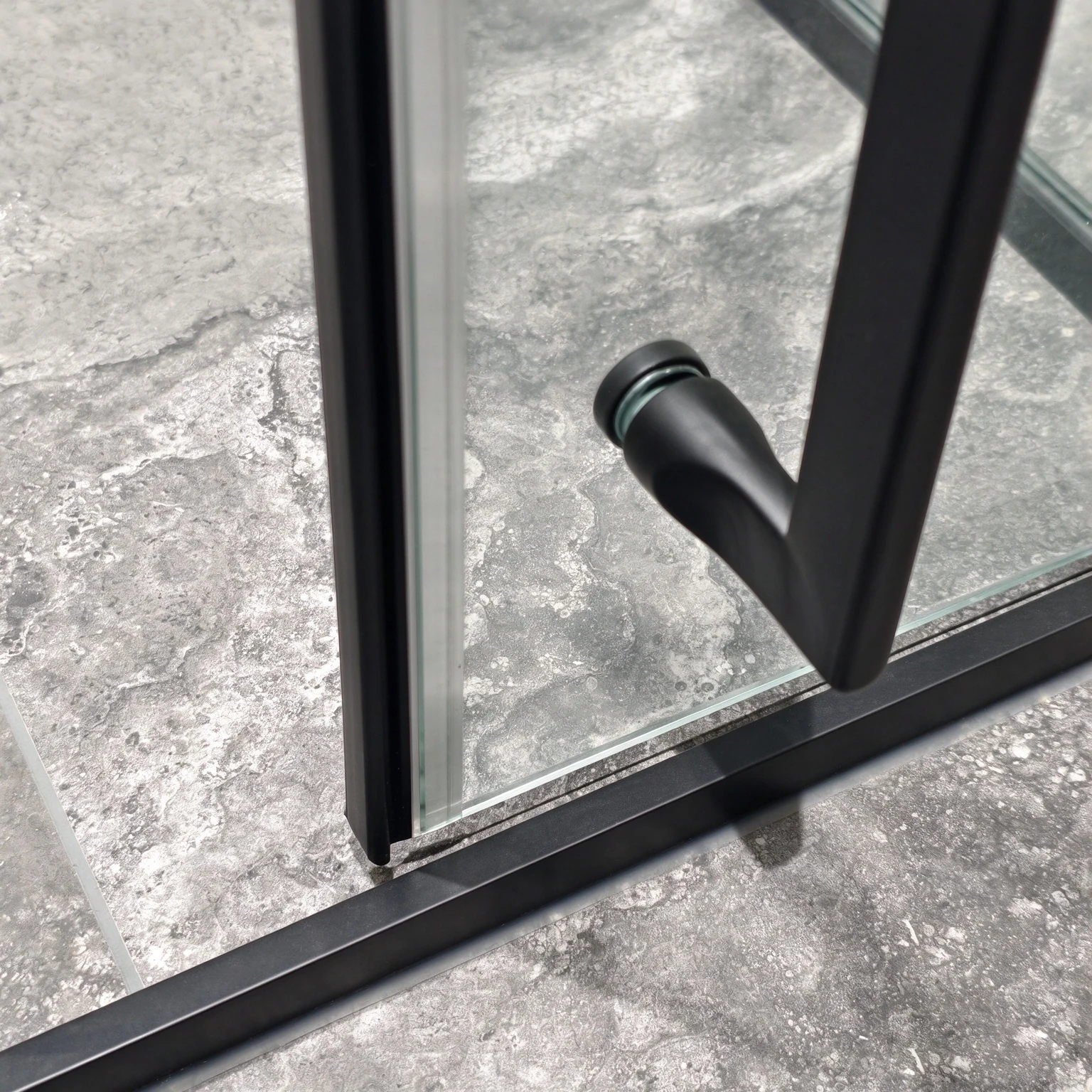

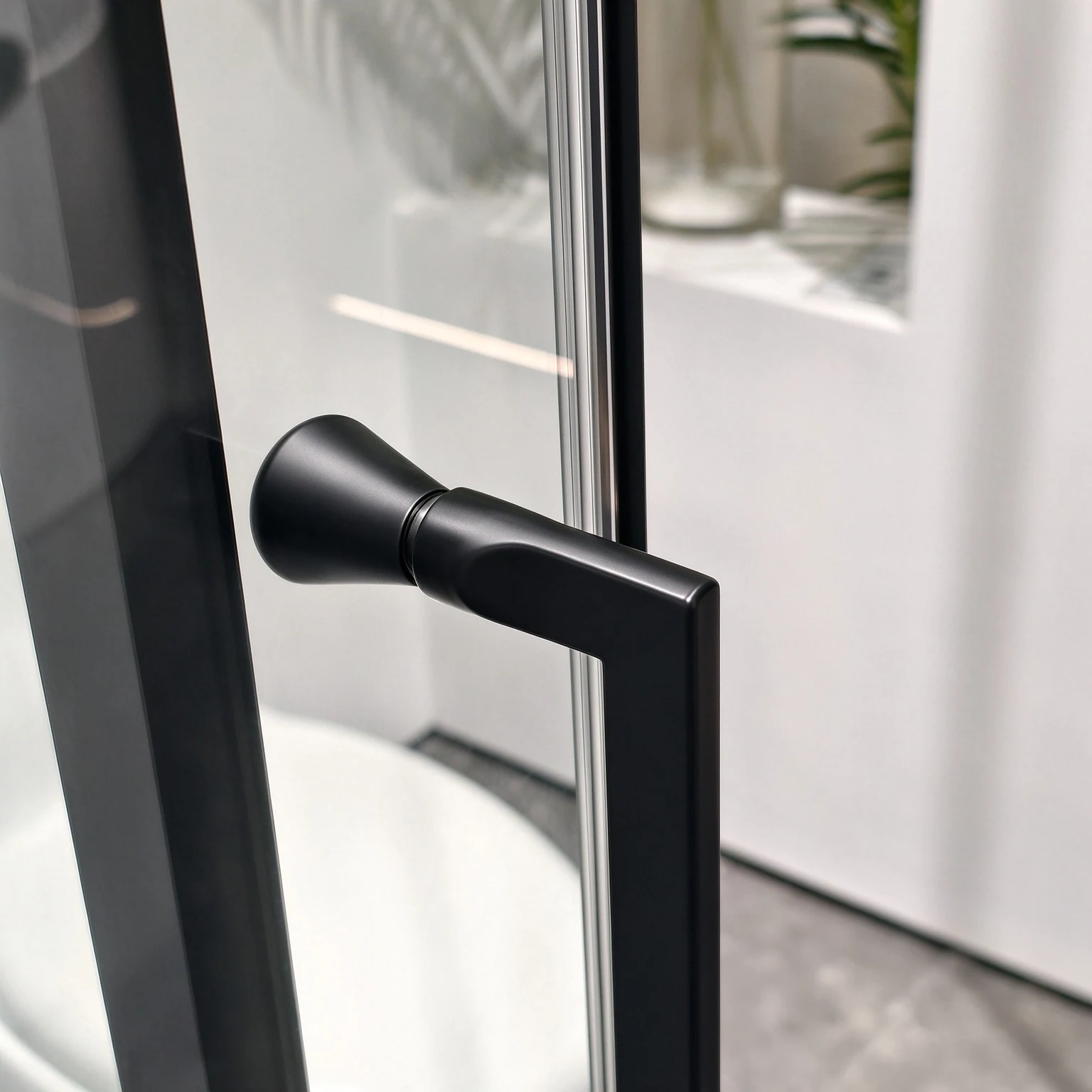

MPF-042 T-Shaped Sliding Shower Enclosure
The MPF-042 features a T-shaped layout with a dual-purpose sliding door, 8 mm glass and stainless steel profiles. Profile finishes include mirror, matte black, gunmetal grey and brushed gold. Glass tint and film options can be selected for the project.
- T-shaped layout with a dual-purpose sliding door
- 8 mm glass and stainless steel profiles
- Mirror, matte black, gunmetal grey and brushed gold profile finishes
- Optional grey, blue or brown glass; protective, clear, patterned or frosted film options
- Model
- MPF-042
- Dimensions
- 8 mm glass; dimensions to be confirmed
- Configuration
- T-shaped dual-purpose sliding door · Stainless steel profiles
- Finish / color
- Mirror / matte black / gunmetal grey / brushed gold
Model overview
MPF-042 T-Shaped Sliding Shower Enclosure Specifications
The MPF-042 features a T-shaped layout with a dual-purpose sliding door, 8 mm glass and stainless steel profiles. Profile finishes include mirror, matte black, gunmetal grey and brushed gold. Glass tint and film options can be selected for the project.
Consider this model for bathroom layouts requiring a T-shaped shower partition and dual-purpose sliding door; confirm the finished opening and door movement against the project drawing. For a straight-line layout with two sliding doors and bottom rollers, compare MPF-047.
B2B Project Fit & Sourcing Guidance
Confirm MPF-042 for your market Consider this model for bathroom layouts requiring a T-shaped shower partition and dual-purpose sliding door; confirm the finished opening and door movement against the project drawing.
Alternative selection: For a straight-line layout with two sliding doors and bottom rollers, compare MPF-047.
Technical specifications
Engineering Data & Sourcing Specifications for MPF-042
Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.- Product model
- MPF-042
- Product type
- T-Shaped Sliding Shower Enclosure
- Dimensions
- 8 mm glass; dimensions to be confirmed
- Installation / Outlet
- T-shaped dual-purpose sliding door · Stainless steel profiles
- Finish / Color
- Mirror / matte black / gunmetal grey / brushed gold
- Product family
- Shower Screens
Shower enclosure measurement checklist
What buyers should confirm for MPF-042
Accurate finished dimensions are required to define the door, glass and hardware configuration.Profile finish
Select mirror, matte black, gunmetal grey or brushed gold stainless steel profiles.
Glass tint and film
Optional glass colours are grey, blue and brown; confirm the required protective, clear, patterned or frosted film.
Glass area and quotation basis
Record the panel widths and heights used for the enquiry so the glass area can be calculated consistently. Pricing and any minimum-area or minimum-quantity conditions are confirmed in the quotation.
Category engineering
Shower Screen Manufacturing Advantages
MICAWA shower screens combine certified tempered safety glass, corrosion-tested framing, durable sliding or hinged hardware and custom dimensional support.Automotive-grade tempered glass
Standard 8 mm float tempered glass can be upgraded to 10 mm and is covered by China Compulsory Certification (3C).
Safer breakage characteristics
A 50 × 50 mm area produces at least 60 fragments, while polished corners use a radius of at least 3 mm to reduce edge risk.
Optional safety film
A nano safety and anti-explosion film can be specified for added breakage retention.
Impact verification
Glass assemblies pass an 18 kg steel-ball drop impact test.
Corrosion-resistant frames
Options include 1.2–1.8 mm food-grade 304 stainless steel with Grade 10 rust resistance after 48-hour neutral salt spray, or ≥95% pure aluminium with 13–14 HW hardness and ≥10 μm anodised film.
Durable quiet sliding system
Stainless-steel bearing rollers complete at least 50,000 cycles without sticking or abnormal noise, operate at no more than 45 dB and include anti-derailment and damping features.
Solid stainless-steel hinges
Hinges reach Grade 10 rust resistance after 48-hour salt spray and support opening angles up to 120°.
Age-resistant water sealing
High-elasticity EVM magnetic seals withstand temperatures from -20°C to 70°C and use a double-layer U-shaped water barrier.
Custom enclosure formats
Multiple shapes, heights and widths can be adjusted for non-standard project conditions.
These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model MPF-042 against the current technical sheet and quotation.
Packaging & delivery
Packing checks for MPF-042
Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.
- Glass edge and corner protection
- Hardware set identification
- Crate and shipping-mark requirements
- Handling and installation sequence
Product presentation
Need a closer view before shortlisting?
Request the current product presentation package for model MPF-042, including available detail imagery and video material.Model inquiry
Request the current specification and quote for MPF-042
Share your finished opening dimensions, door format and direction, glass thickness, hardware finish, quantity and project location. MICAWA will review the request against the current MPF-042 technical information and available supply configuration.Continue exploring
Compare shower enclosures and coordinated shower products
Compare related MICAWA models and confirm the best fit for the same purchasing brief.
M-6145F Freestanding Bathtub Faucet
Confirm with current technical sheet Floor-mounted bathtub faucet
View product
Shower Screens FAQ
Questions to confirm for MPF-042
Use the current product sheet and approved quotation as the final reference for this model.Which finished-opening measurements are needed for MPF-042?
Provide wall-to-wall dimensions, height and out-of-square conditions after wall and floor finishes are complete.
Which glass and hardware options should be confirmed for MPF-042?
Confirm glass thickness, safety treatment, frame material, hardware finish and door direction against the current drawing.
How should water sealing be reviewed for MPF-042?
Share tray or floor conditions, threshold details and splash-control expectations so seals and configuration can be checked.
