Is M-3611-1F an exposed or concealed shower configuration?

Confirm the installation format, wall construction and valve-access requirements against the current M-3611-1F drawing.

Which outlet functions should be specified for M-3611-1F?

List overhead shower, hand shower, bath spout or auxiliary outlet needs and any thermostatic requirement.

Which water and connection details are needed for M-3611-1F?

Provide water pressure, hot-water system, connection standard, finish, target market and expected quantity.

Shower Faucets

M-3611-1F Rainfall Shower Set

The M-3611-1F gunmetal grey shower set combines a brass body and ceramic cartridge with an overhead rainfall shower and multifunction hand shower. The overhead shower height is adjustable, with single-valve control and quick switching through a ceramic cartridge. The multi-layer electroplated finish achieves Grade 10 in a 24-hour salt spray test.

Brass body with ceramic cartridge
Gunmetal grey finish with multi-layer electroplating

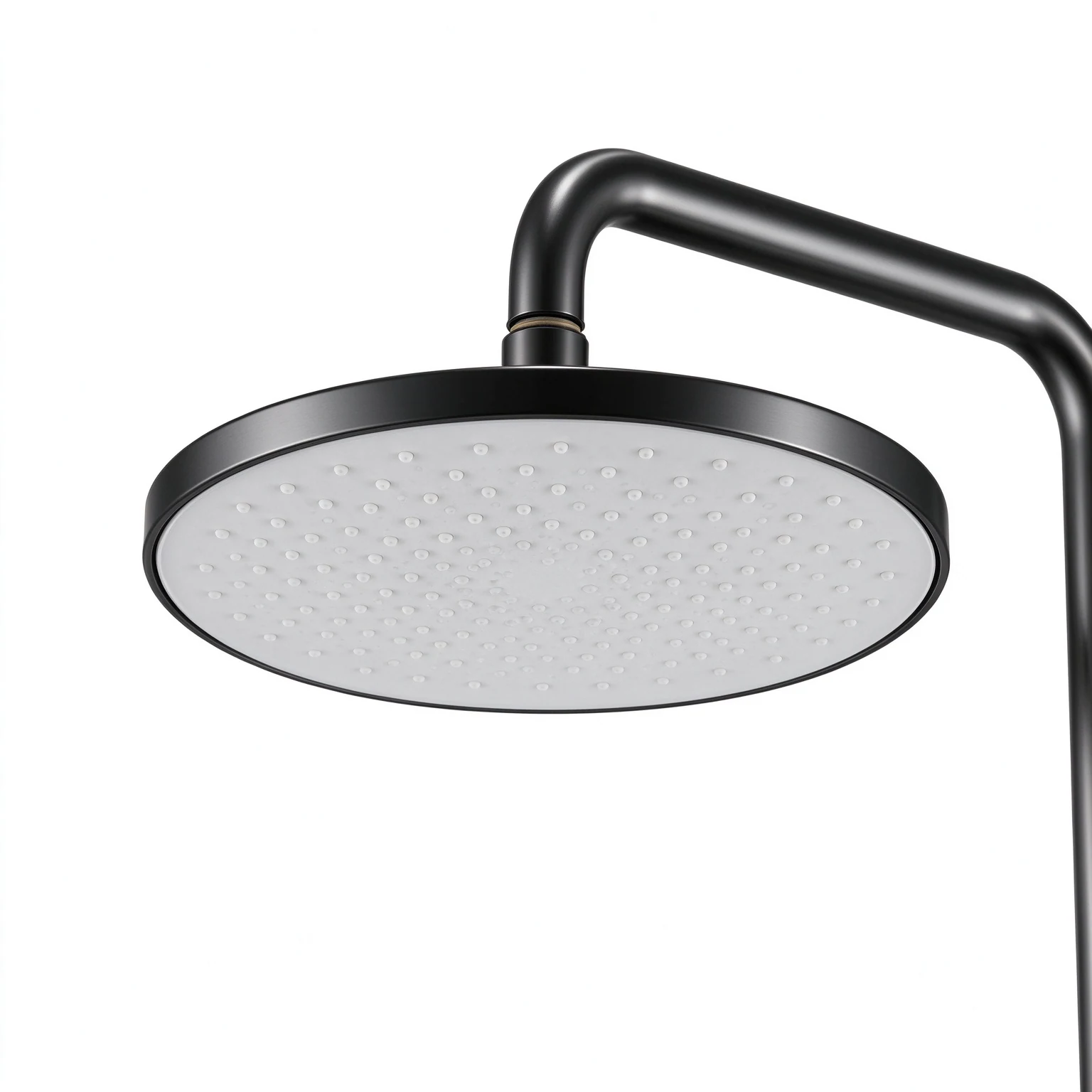

Overhead rainfall shower with adjustable height

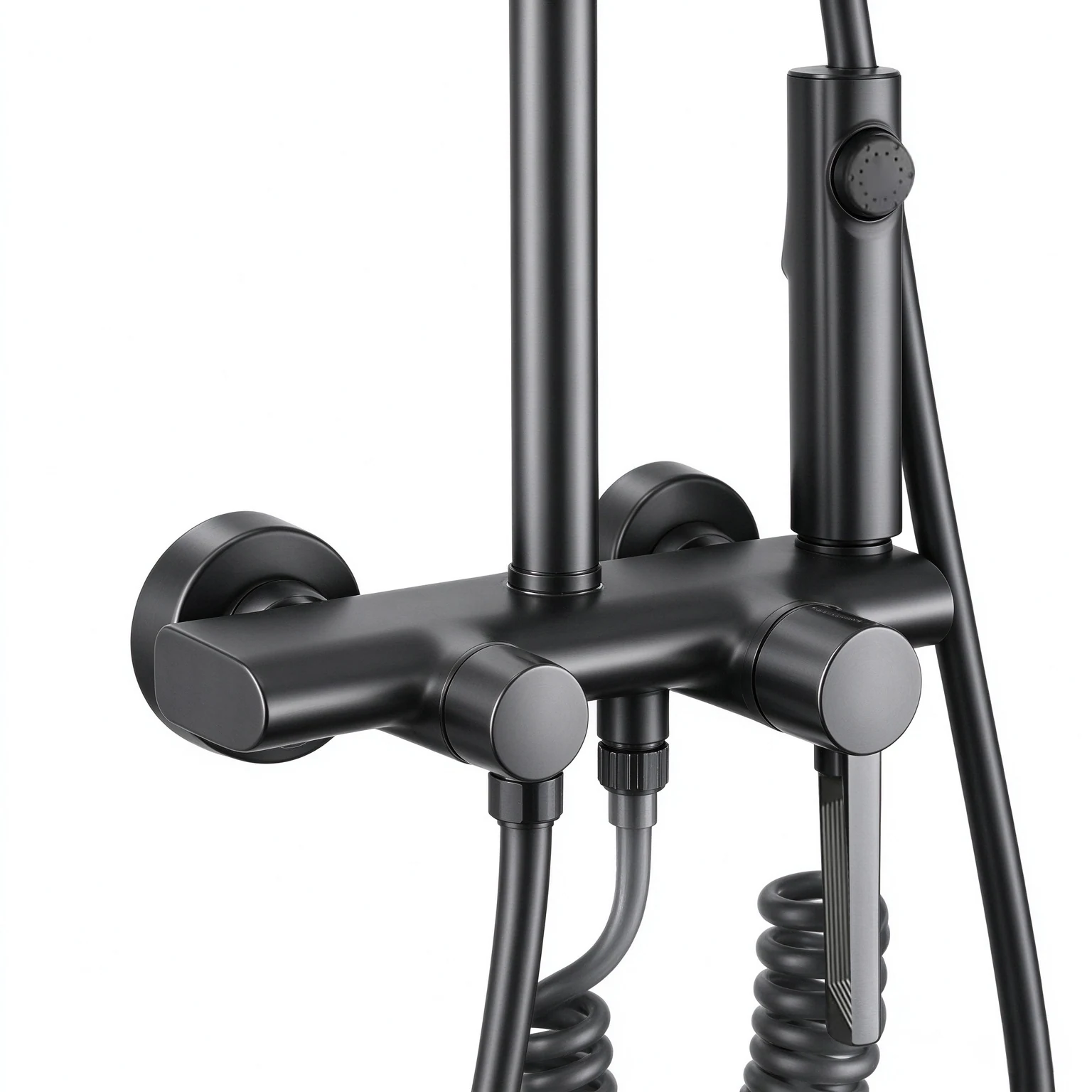

Multifunction hand shower and single-valve quick switching
24-hour salt spray test result: Grade 10

Model: M-3611-1F
Dimensions: Confirm with current technical sheet
Configuration: Adjustable overhead rainfall shower · Multifunction hand shower · Brass body
Finish / color: Gunmetal grey

Request M-3611-1F Information

Model overview

M-3611-1F Gunmetal Shower Set Specifications

Consider this model for bathroom projects specifying a gunmetal grey rainfall shower set with adjustable overhead height and a multifunction hand shower. Compare M-3904-1F for another gunmetal model, or M-3785-1C for a chrome finish. Confirm model-specific dimensions and configurations before ordering.

B2B Project Fit & Sourcing Guidance

Consider this model for bathroom projects specifying a gunmetal grey rainfall shower set with adjustable overhead height and a multifunction hand shower.

Alternative selection: Compare M-3904-1F for another gunmetal model, or M-3785-1C for a chrome finish. Confirm model-specific dimensions and configurations before ordering.

Confirm M-3611-1F for your market

Technical specifications

Engineering Data & Sourcing Specifications for M-3611-1F

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: M-3611-1F
Product type: Rainfall Shower Set
Dimensions: Confirm with current technical sheet
Installation / Outlet: Adjustable overhead rainfall shower · Multifunction hand shower · Brass body
Finish / Color: Gunmetal grey
Product family: Shower Faucets

Shower system specification checklist

What buyers should confirm for M-3611-1F

Coordinate the installation wall, outlet functions and local water conditions before approval.

Installation dimensions

Request the current drawing, connection spacing, thread specification and overhead height adjustment range.

Shower functions

Confirm the hand shower spray modes, included accessories and single-valve switching operation.

Water supply conditions

Confirm the required operating pressure and compatibility with the project hot-water system.

Finish test documentation

24-hour salt spray test result: Grade 10. Request the test report and confirm the standard and grading basis required for your project.

Category engineering

Shower System Manufacturing Advantages

MICAWA shower systems combine brass valve bodies, durable cartridges, corrosion-tested finishes, pressure verification and configurable overhead, hand-shower and auxiliary outlets.

Integrated low-lead brass body

The valve body is cast as one piece and paired with a ceramic cartridge tested for at least 500,000 operating cycles.

Corrosion-resistant plating

Multi-layer plating reaches Grade 10 rust resistance after a 24-hour neutral salt-spray test.

Oxygen-enriched pressure boost

Water-and-air mixing can improve outlet performance by about 25% under low-water-pressure conditions.

Accurate thermostatic control

Thermostatic configurations control temperature within ±1°C and use a 38°C safety-lock starting point.

Easy-clean spray outlets

Silicone nozzles on overhead and hand showers allow scale to be cleared by hand, with multiple spray modes available.

Four-function configurations

Mainstream systems integrate an overhead shower, hand shower, lower outlet and cleaning spray gun.

Sealing pressure verification

Shower assemblies pass a 1.6 MPa sealing and pressure-hold test.

Adjustable installation dimensions

Typical overhead shower sizes are 250–320 mm, while riser height can be adjusted from 1,000 to 1,500 mm.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model M-3611-1F against the current technical sheet and quotation.

Packaging & delivery

Packing checks for M-3611-1F

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Valve and trim-set identification
Hose, showerhead and accessory pack list
Finish protection and shipping marks
Rough-in and final-trim delivery needs

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model M-3611-1F, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for M-3611-1F

Share your exposed or concealed installation, outlet functions, water pressure, connection standard, finish, market and quantity. MICAWA will review the request against the current M-3611-1F technical information and available supply configuration.

Inquire about M-3611-1F

Name Email

Mobile / WhatsApp

Company Name Message

Continue exploring

Compare shower systems and matching faucet finishes

Compare related MICAWA models and confirm the best fit for the same purchasing brief.

View the full collection
