Is M-3722F an exposed or concealed shower configuration?

Confirm the installation format, wall construction and valve-access requirements against the current M-3722F drawing.

Which outlet functions should be specified for M-3722F?

List overhead shower, hand shower, bath spout or auxiliary outlet needs and any thermostatic requirement.

Which water and connection details are needed for M-3722F?

Provide water pressure, hot-water system, connection standard, finish, target market and expected quantity.

Shower Faucets

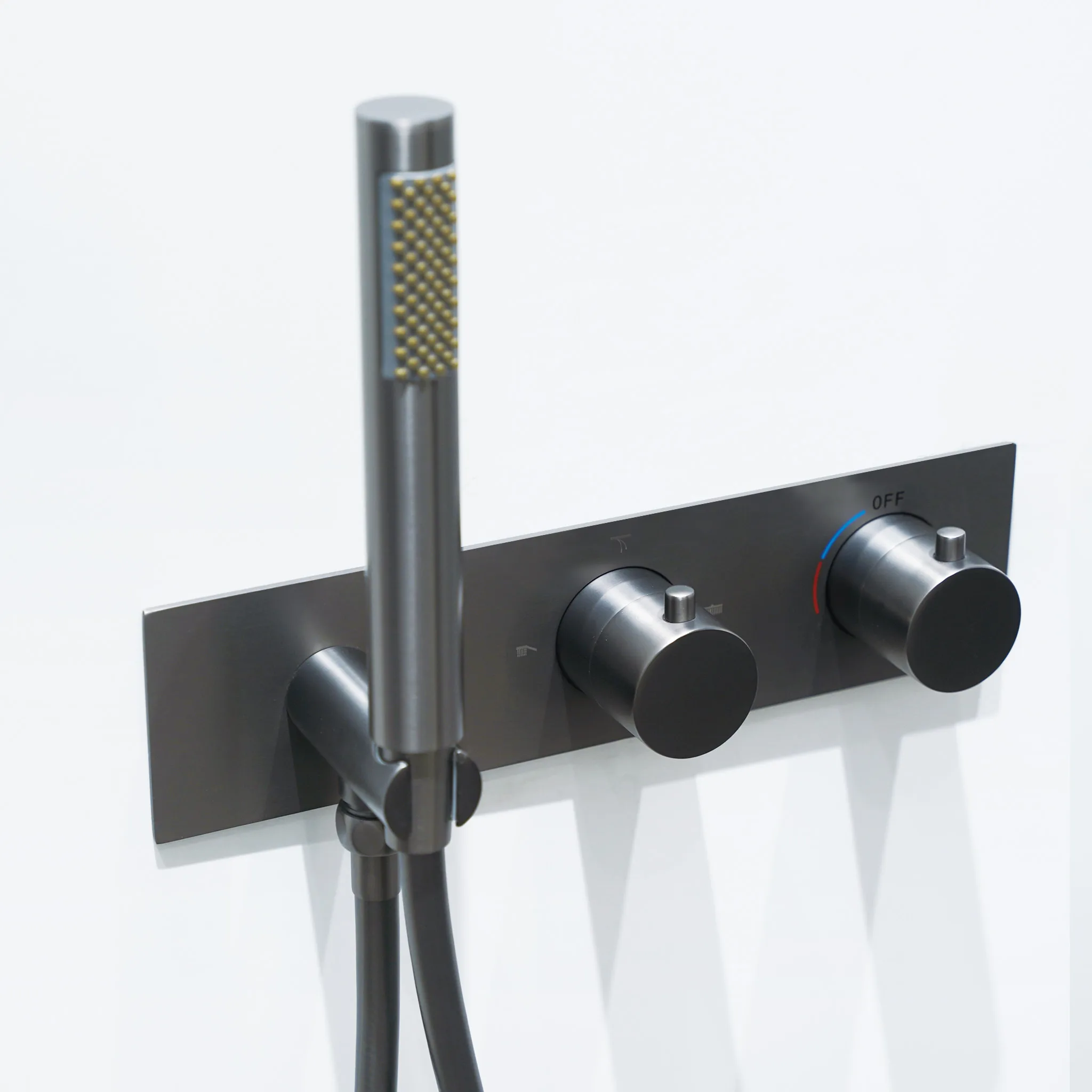

M-3722F Concealed Shower Faucet

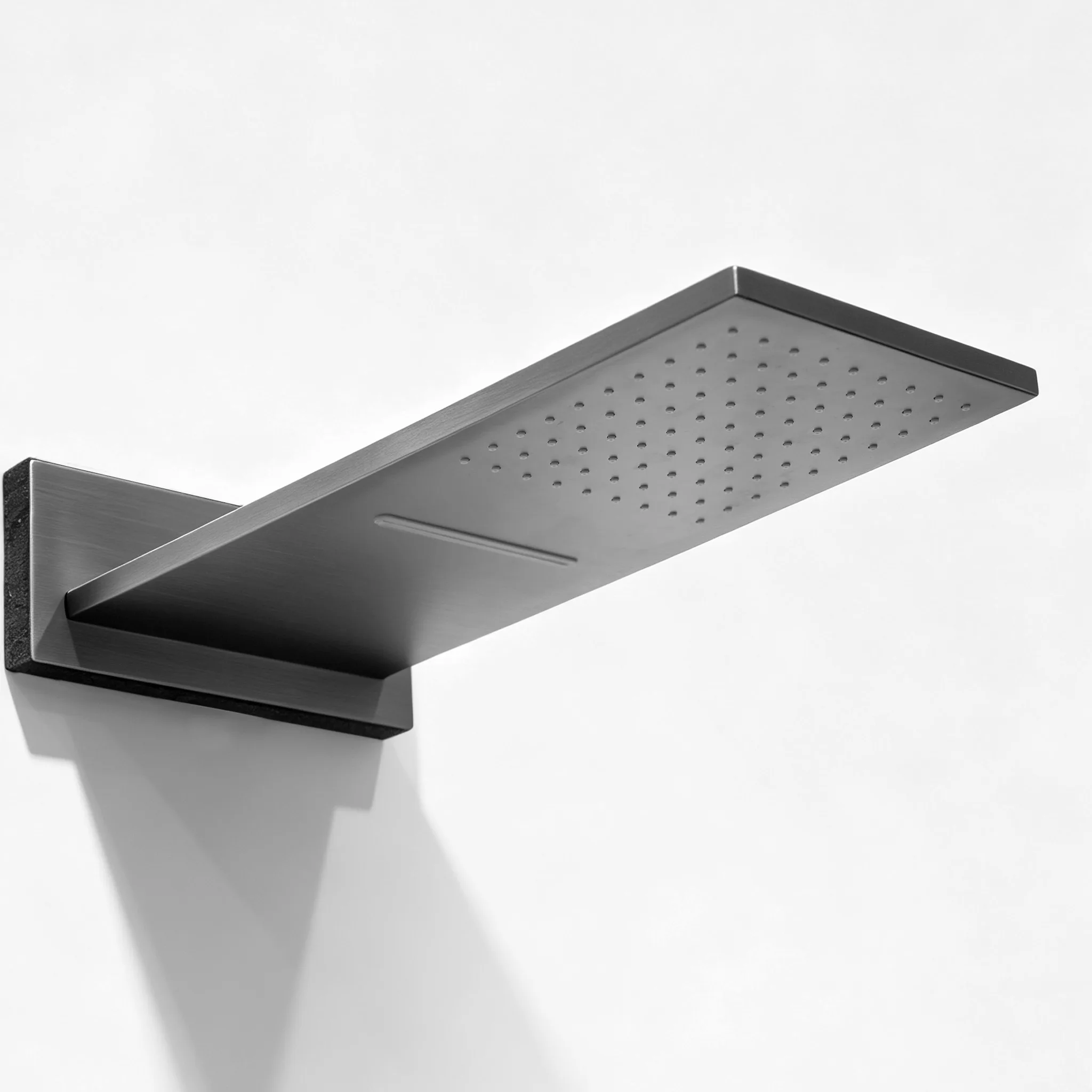

An architectural in-wall concealed shower set featuring dual tactile knurled control knobs, broad rainfall coverage, and an ergonomic baton hand shower in a refined gunmetal finish.

Concealed in-wall valve system providing clean, uncluttered shower walls
Tactile knurled control knobs offering non-slip operation with soapy hands
High-velocity air-injected overhead shower disc reducing water consumption by 25%
Solid brass valve casting with independently serviceable ceramic cartridges

Model: M-3722F
Dimensions: Confirm with current technical sheet
Configuration: In-wall shower faucet
Finish / color: Gunmetal grey

Request M-3722F Information

Model overview

M-3722F Concealed Dual-Knob Luxury Shower System Specifications

An architectural in-wall concealed shower set featuring dual tactile knurled control knobs, broad rainfall coverage, and an ergonomic baton hand shower in a refined gunmetal finish.

Tailored for boutique hotels, contemporary penthouse walk-in showers, and luxury developer display suites. For exposed pipe high-rise retrofit without breaking wall tiles, select M-3659-1F.

B2B Project Fit & Sourcing Guidance

Tailored for boutique hotels, contemporary penthouse walk-in showers, and luxury developer display suites.

Alternative selection: For exposed pipe high-rise retrofit without breaking wall tiles, select M-3659-1F.

Confirm M-3722F for your market

Technical specifications

Engineering Data & Sourcing Specifications for M-3722F

Drawing-level parameters, water conservation performance, and export logistics data for project evaluation.

Product model: M-3722F
Product type: Concealed Shower Faucet
Dimensions: Confirm with current technical sheet
Installation / Outlet: In-wall shower faucet
Finish / Color: Gunmetal grey
Product family: Shower Faucets
Flushing Technology: Concealed 2-function water path with knurled dual-knob mixer
Trapway & Waste Path: G 1/2" hot & cold in-wall connections
Water Seal Depth: Solid brass body tested to 1.6 MPa sealing pressure
Container Loading (40HQ): ~720 sets / 40HQ container
OEM / Customization Scope: Knurled vs smooth knob styling, custom PVD colorways, bespoke project packaging

Shower system specification checklist

What buyers should confirm for M-3722F

Coordinate the installation wall, outlet functions and local water conditions before approval.

In-wall cavity dimension

Verify 70–80 mm finished wall thickness to embed brass rough-in body.

Cartridge serviceability

Front-accessible cartridges can be replaced without removing wall tiling.

Water supply line purging

Flush all supply pipes thoroughly before final valve core assembly.

Container loading economy

Dense carton packing yields approx. 720 sets per 40HQ container.

Category engineering

Shower System Manufacturing Advantages

MICAWA shower systems combine brass valve bodies, durable cartridges, corrosion-tested finishes, pressure verification and configurable overhead, hand-shower and auxiliary outlets.

Integrated low-lead brass body

The valve body is cast as one piece and paired with a ceramic cartridge tested for at least 500,000 operating cycles.

Corrosion-resistant plating

Multi-layer plating reaches Grade 10 rust resistance after a 24-hour neutral salt-spray test.

Oxygen-enriched pressure boost

Water-and-air mixing can improve outlet performance by about 25% under low-water-pressure conditions.

Accurate thermostatic control

Thermostatic configurations control temperature within ±1°C and use a 38°C safety-lock starting point.

Easy-clean spray outlets

Silicone nozzles on overhead and hand showers allow scale to be cleared by hand, with multiple spray modes available.

Four-function configurations

Mainstream systems integrate an overhead shower, hand shower, lower outlet and cleaning spray gun.

Sealing pressure verification

Shower assemblies pass a 1.6 MPa sealing and pressure-hold test.

Adjustable installation dimensions

Typical overhead shower sizes are 250–320 mm, while riser height can be adjusted from 1,000 to 1,500 mm.

These figures describe MICAWA’s category-level manufacturing, material and test capabilities. Confirm their applicability, optional functions and destination-market documentation for model M-3722F against the current technical sheet and quotation.

Packaging & delivery

Packing checks for M-3722F

Confirm the packing plan after the product configuration is approved so protection, accessories, marks and loading data match the order.

Valve and trim-set identification
Hose, showerhead and accessory pack list
Finish protection and shipping marks
Rough-in and final-trim delivery needs

Product presentation

Need a closer view before shortlisting?

Request the current product presentation package for model M-3722F, including available detail imagery and video material.

Request product video

Model inquiry

Request the current specification and quote for M-3722F

Share your exposed or concealed installation, outlet functions, water pressure, connection standard, finish, market and quantity. MICAWA will review the request against the current M-3722F technical information and available supply configuration.

Inquire about M-3722F

Name Email

Mobile / WhatsApp

Company Name Message
